Description

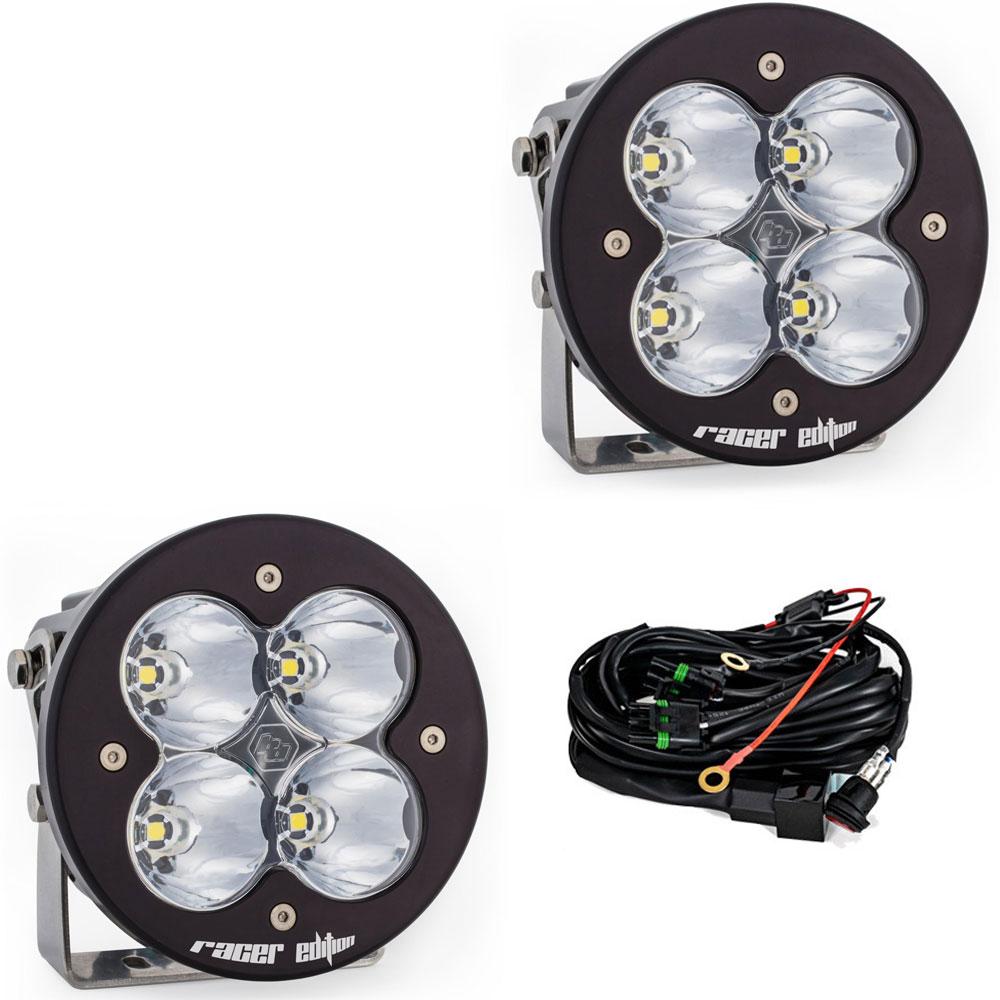

The Baja Designs XL-R Racer Edition features next-generation LEDs that deliver an impressive 2,800 lumens per light and offer 85% greater distance compared to the previous model. Designed with a round bezel, the XL-R Racer throws light 40% farther than the XL Pro, thanks to its high-inte
Key features
- Beam Pattern: Racer Edition Spot
- Wattage: 40
Specifications
| Amperage Rating (A) | 2.9 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Edition Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4,300 |
| Depth (in.) | 3.65 |
| Description | Round; Racer Edition Spot; Clear; Pair |
| Height (in.) | 5.24 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 5.24 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | High Intensity LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL-R 80 Racer Edition LED Light Pod Pair w/ Wiring Harness |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 40 |
| Weight (lbs.) | 2.45 |
| Wiring Harness Included | Yes |
Fitment
Universal / non-vehicle-specific
