Description

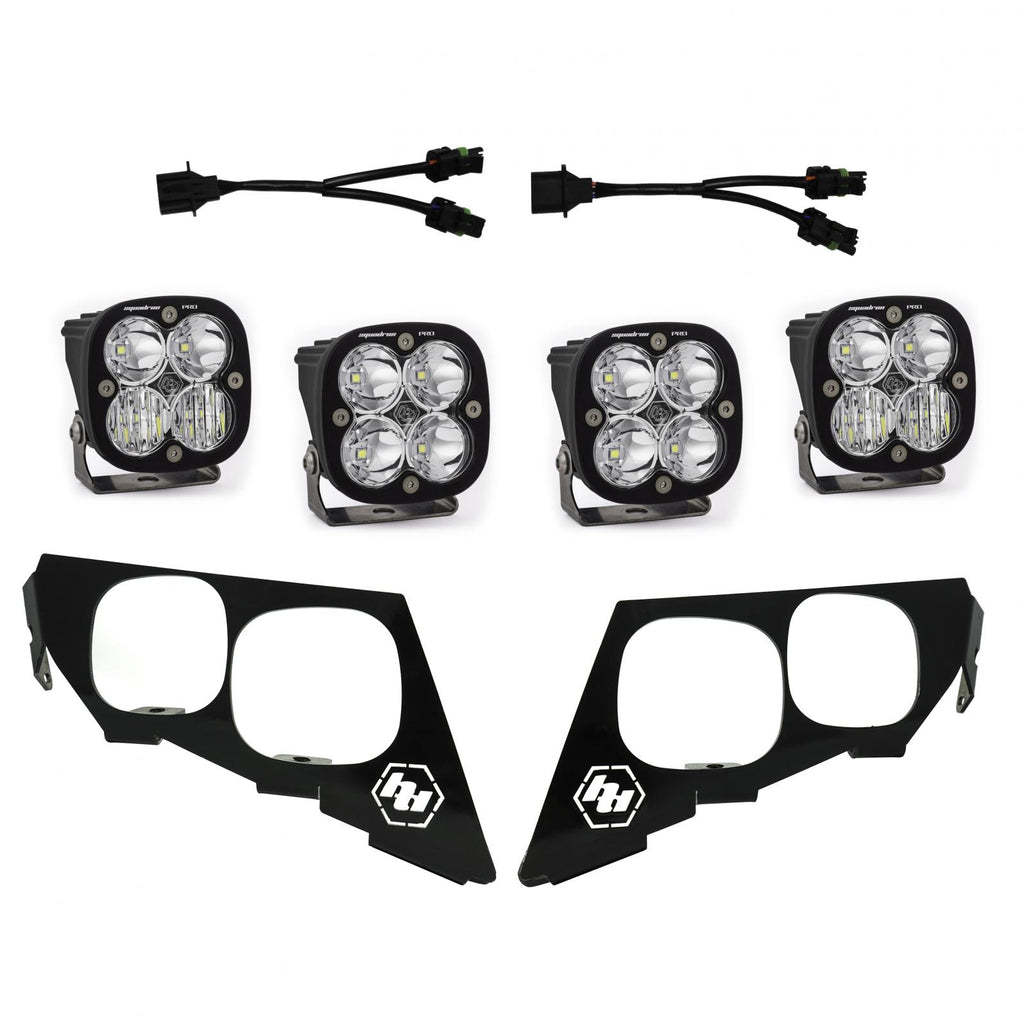

Bring your headlight performance up to par with your Textron's performance with the Baja Designs Textron, Wildcat XX "Pro" Headlight Kit. This kit utilizes four Squadron Pros (4,900 lumens each). The need for front bumper lighting or roof mounted light bars are a thing of the past. This
Key features
- Beam Pattern: Spot
- Wattage: 41.400
Specifications
| Amperage Rating (A) | 3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Depth (in.) | 2.770 |
| Description | Spot; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 41.400 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Installation
Manufacturer installation instructions available (PDF).
