Description

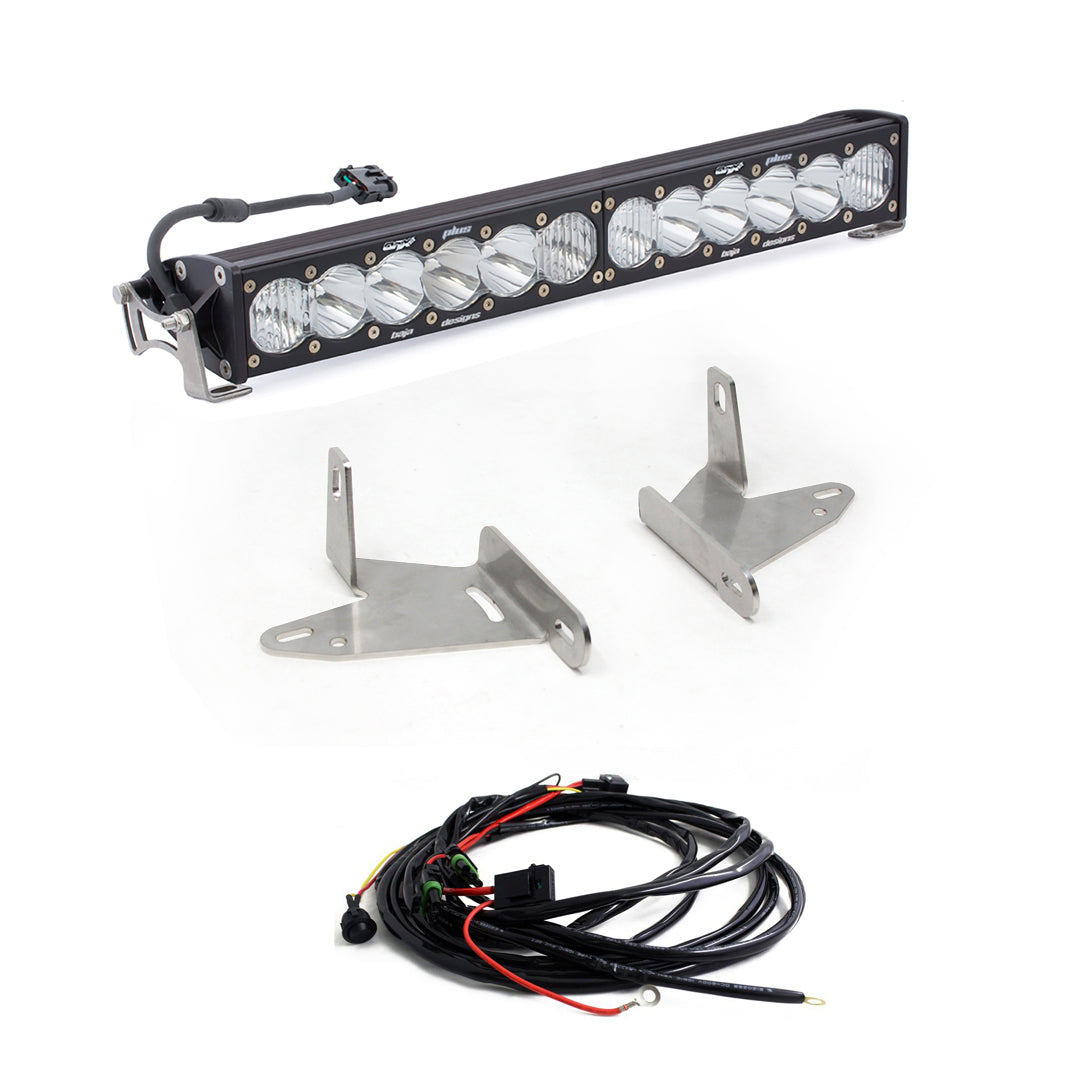

This kit is specifically designed for the Subaru Impreza WRX (18-On). With this mount you will achieve a stylish and clean mounting solution to fill the gap of the stock grille. This kit includes the whole package to get an OnX6 plus 20 inch on your WRX all while utilizing the vehicle's
Key features
- Beam Pattern: Driving/Combo
- Wattage: 216 (High); 160 (Low)
Specifications
| Amperage Rating (A) | 16.6 (High); 12.0 (Low) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 24,920 (High); 18,460 (Low) |
| Depth (in.) | 4.29 |
| Description | Straight; Driving/Combo; Amber |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 20 |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 12 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 20 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 216 (High); 160 (Low) |
| Weight (lbs.) | 7.85 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
2018-2021 Subaru WRX/WRX STI
Installation
Manufacturer installation instructions available (PDF).
