Description

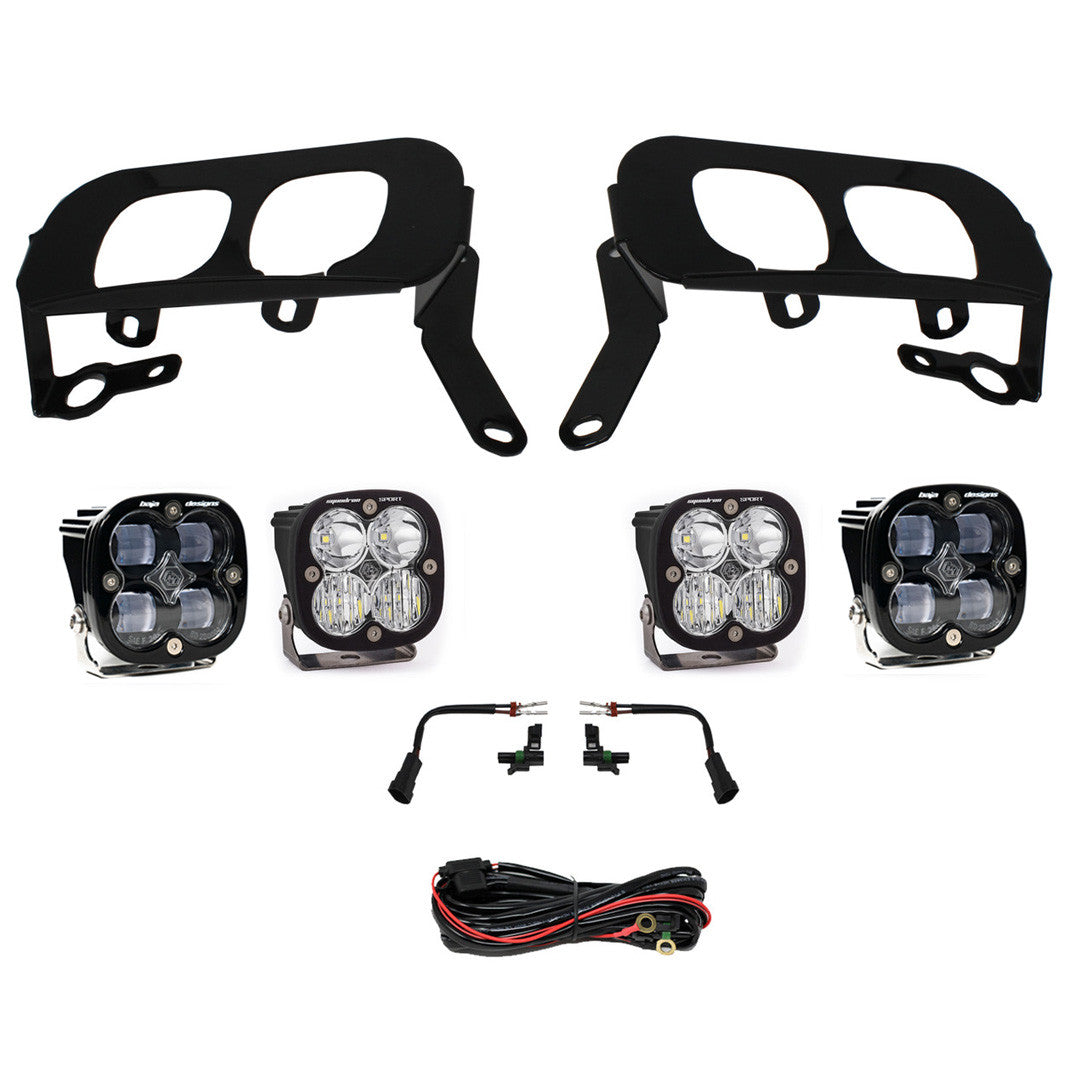

The Baja Designs Squadron Sport/Squadron SAE fog pocket kit for the 2014-2015 Chevrolet Silverado 1500 is the perfect mix of high-quality on and off-road performance. This kit uses a combination of our next generation Squadron® SAE lights (controlled by the factory fog switch) and Squadr
Key features
- (2x) Squadron Sport – Driving Combo Clear
- (2x) Squadron SAE – Clear or Baja Amber
- (2x) Mounting Brackets
- (2x) H16 to 2pin Weather Pack Connector Harness
- (1x) Toggle Harness (640139)
- (1x) Splitter Harness 55in. (613606)
- All Necessary Mounting Hardware
- Lumens: 3,162
Specifications
| Amperage Rating (A) | 2.200 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Depth (in.) | 2.770 |
| Description | Driving/Combo; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 30.360 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
What's included
(2x) Squadron Sport – Driving Combo Clear (2x) Squadron SAE – Clear or Baja Amber (2x) Mounting Brackets (2x) H16 to 2pin Weather Pack Connector Harness (1x) Toggle Harness (640139) (1x) Splitter Harness 55in
Installation
Manufacturer installation instructions available (PDF).
