Description

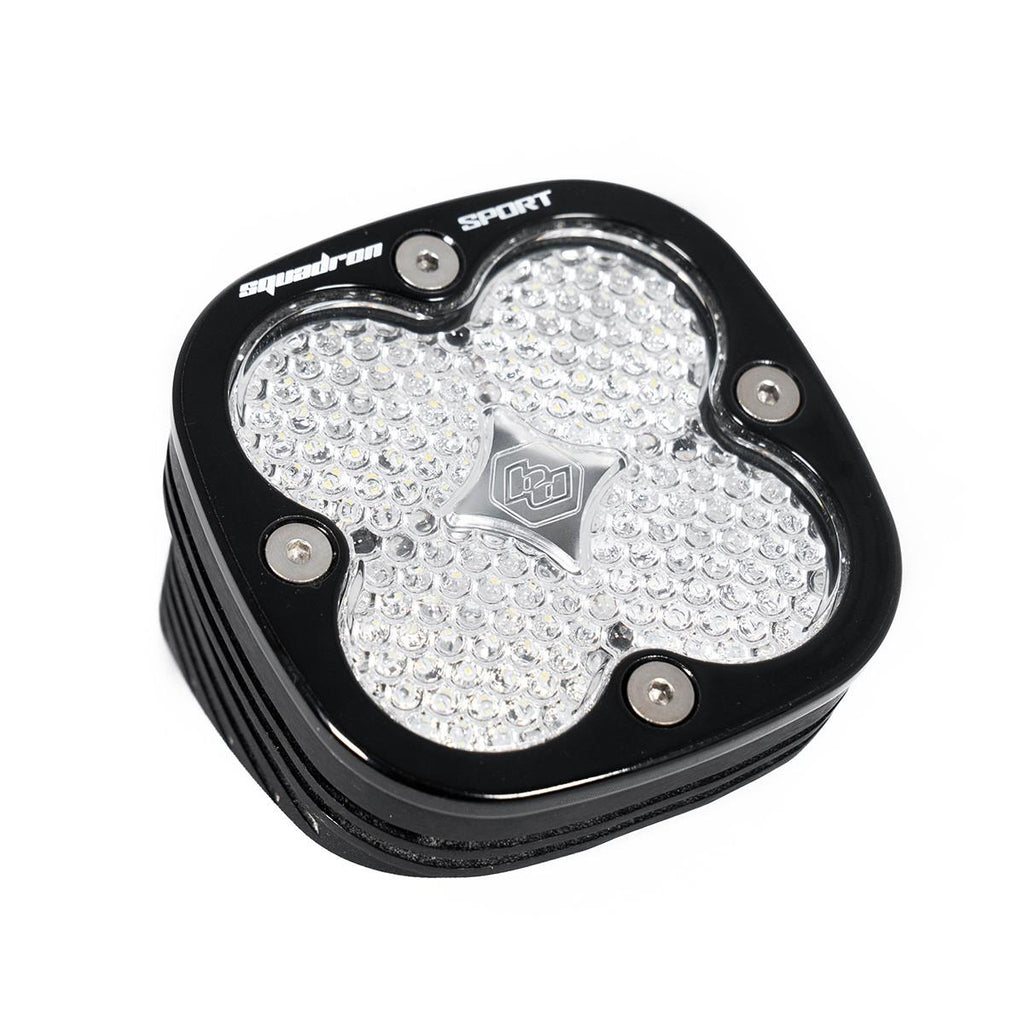

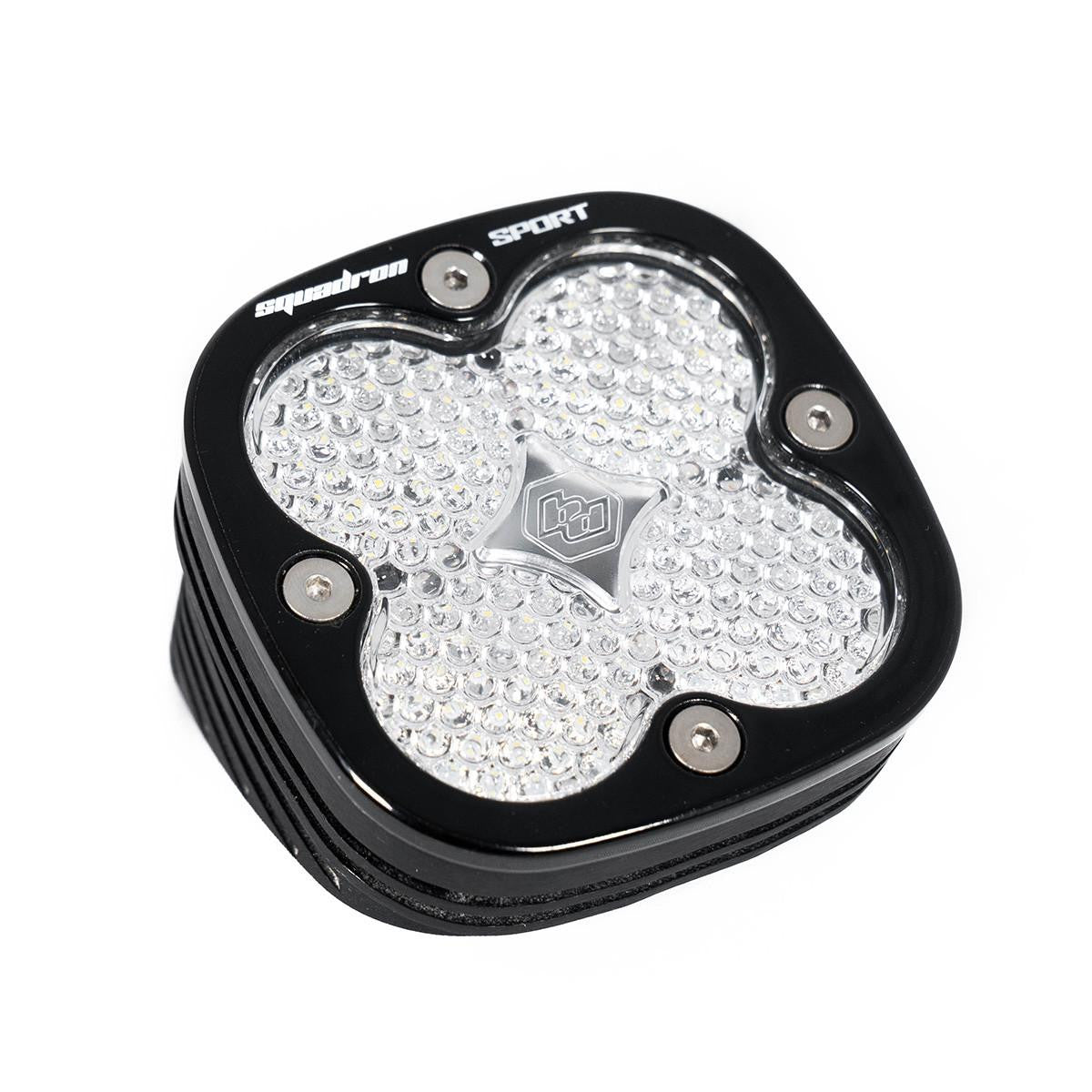

** Discontinued 4-28-26 ** The Squadron Sport angled mount LED auxiliary light produces an impressive 3,162 lumens at 30 watts making it ideal for near field, side/backup, or scene lighting applications. Paired with our work/scene lens, this light is ideal for mounting on the side of a v
Key features
- Beam Pattern: Work/Scene
- Wattage: 30.360
Specifications
| Amperage Rating (A) | 2.200 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Work/Scene |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Depth (in.) | 2.770 |
| Description | Angle Mount; Work/Scene; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport Angle Mount LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 30.360 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
