Description

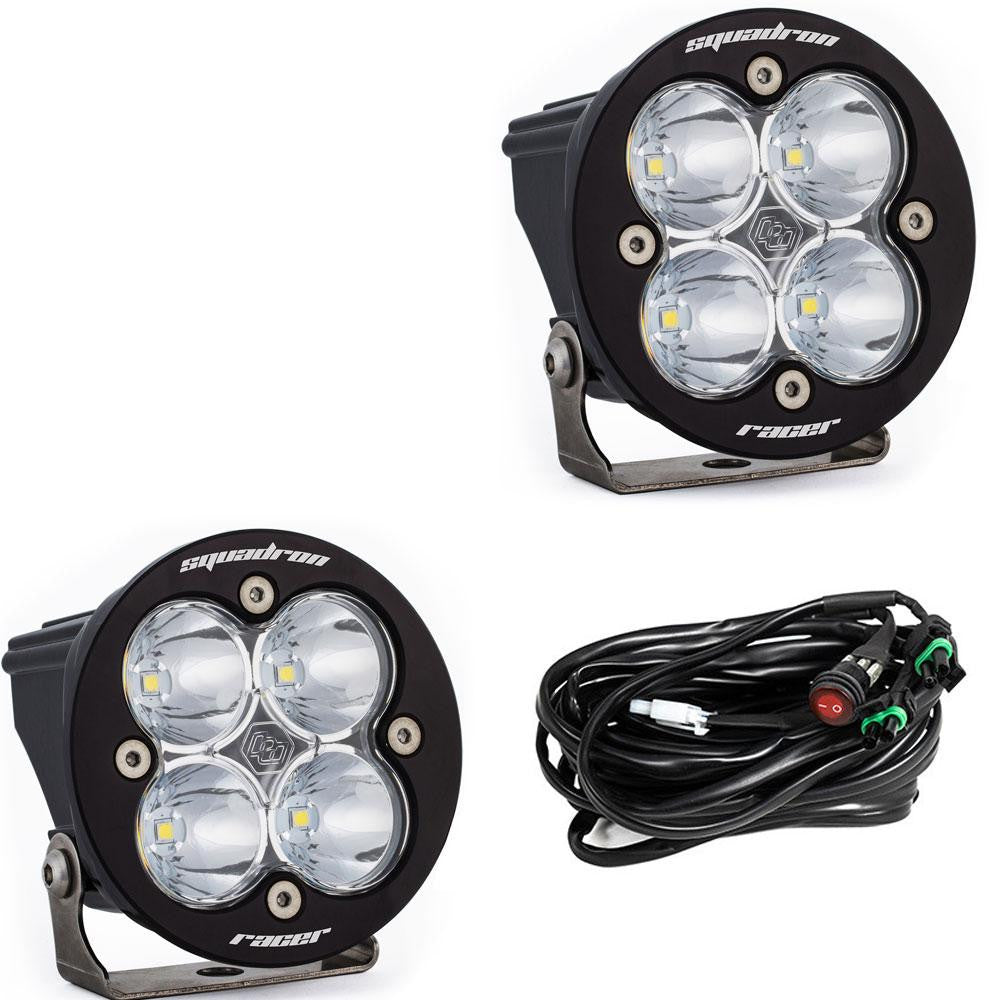

The Baja Designs Squadron-R Racer Edition LED light pair are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer mor
Key features
- Beam Pattern: Racer Spot
- Wattage: 45.54
Specifications
| Amperage Rating (A) | 3.3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2800 |
| Depth (in.) | 2.77 |
| Description | Round; Racer Spot; Clear; Pair |
| Height (in.) | 3.07 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 3.07 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | High Intensity Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Racer Edition LED Light Pod Pair w/ Wiring Harness |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 45.54 |
| Weight (lbs.) | 0.75 |
| Wiring Harness Included | Yes |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
