Description

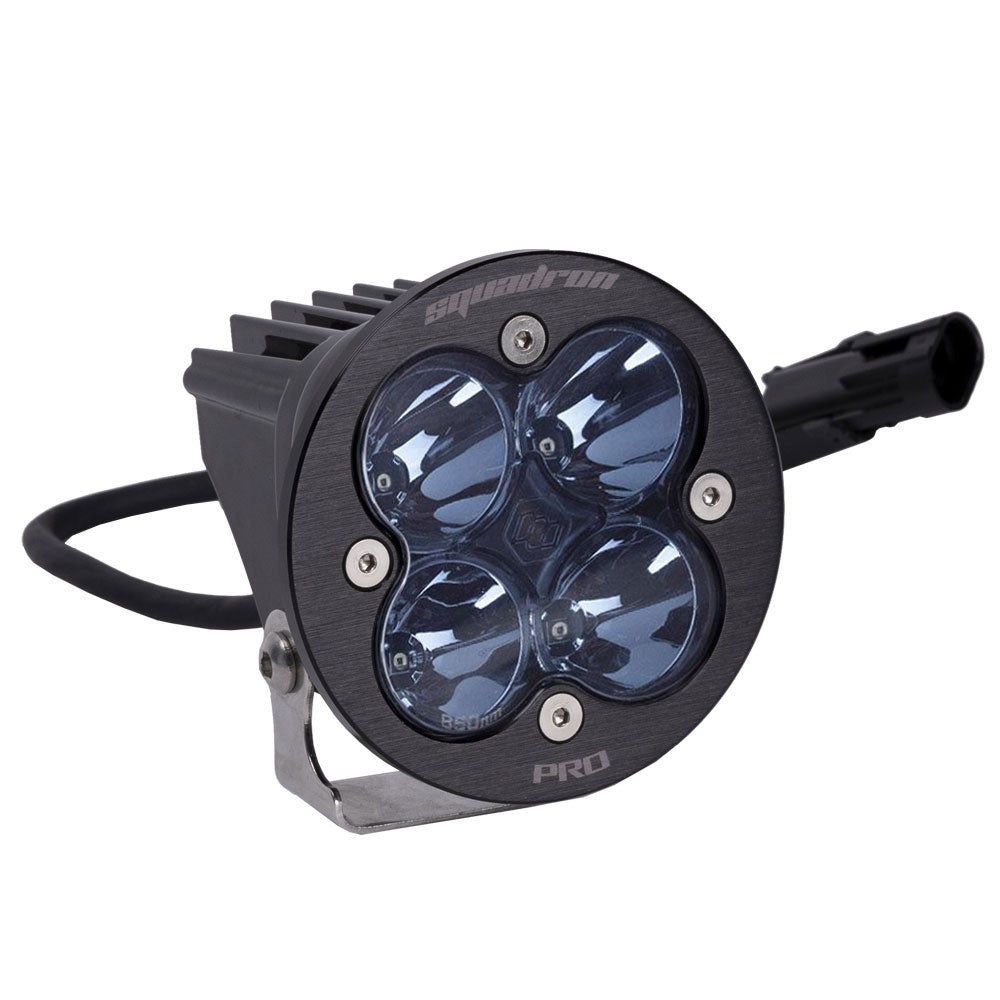

Although compact at 3 inch by 3-inch housing, don’t be fooled by its size. The Squadron-R Pro IR from Baja Designs comes in 850nm and is more powerful than most larger lights on the market today. While compact in size the Squadron-R Pro IR is equipped with our round bezel and a sleek bla
Key features
- Beam Pattern: Driving/Combo
- Wattage: 24
Specifications
| Amperage Rating (A) | 1.73 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Depth (in.) | 2.76 |
| Description | Round; Driving/Combo; IR 850nm |
| Height (in.) | 3.07 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 3.07 |
| Lens Color | Infrared |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High (1800mW) |
| Lighting Quantity | 4 |
| Lighting Technology | Osram 850nm LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Pro Infrared LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 24 |
| Weight (lbs.) | 0.75 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
