Description

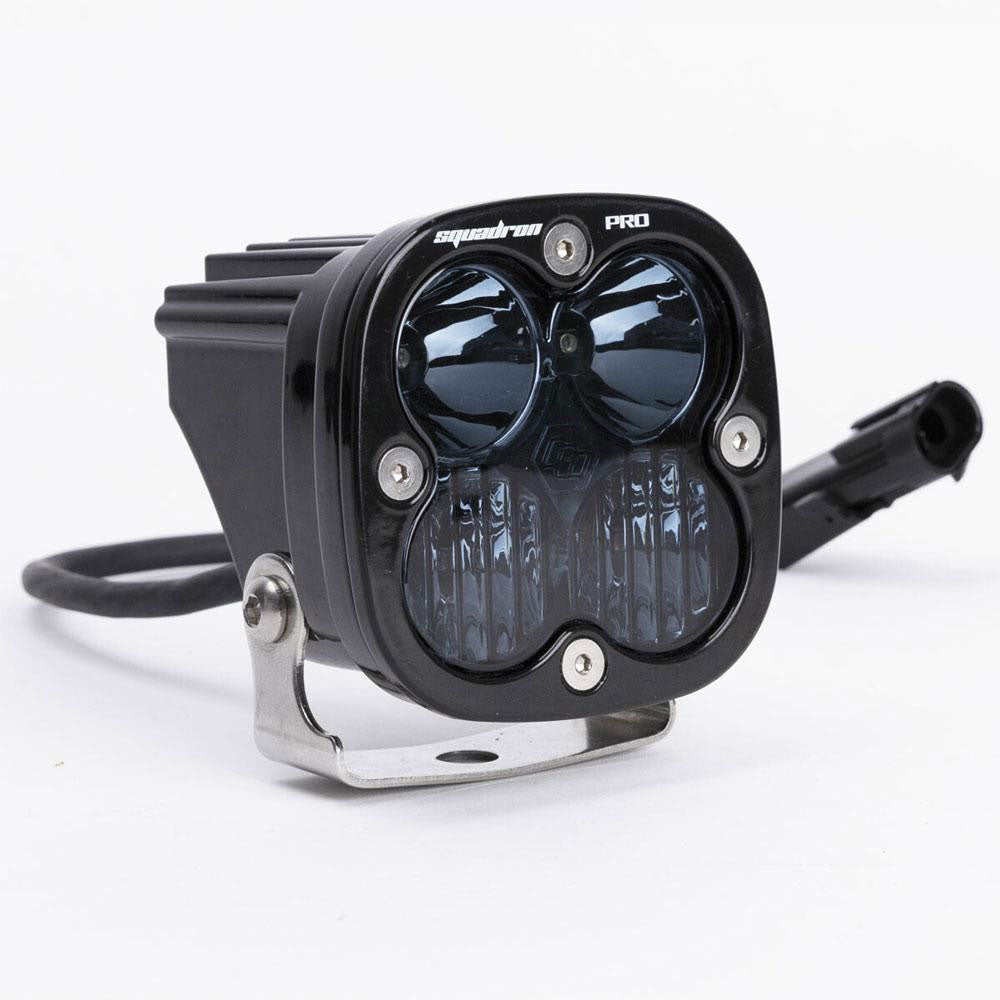

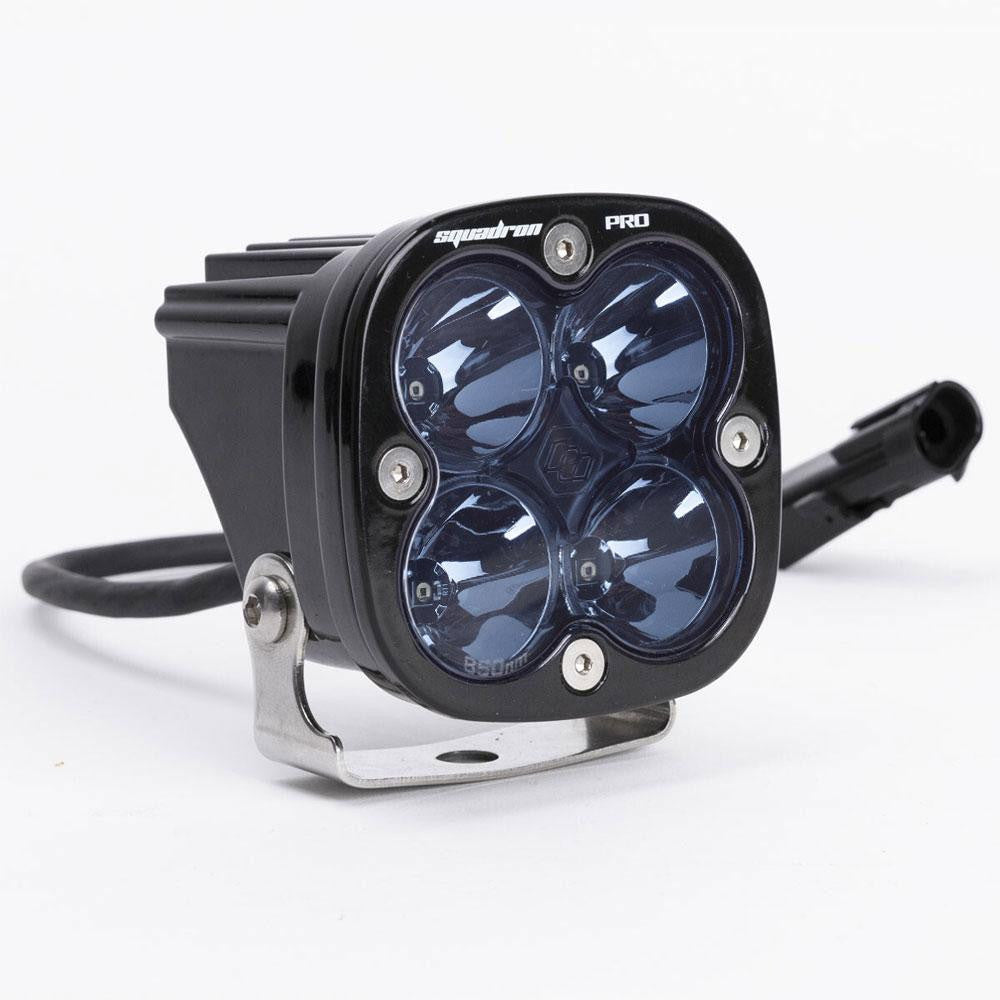

Although compact at 3 inch by 3 inch, don’t be fooled by its size, the Baja Designs Squadron Pro IR comes in 850nm or 940nm, and is more powerful than most larger lights on the market today. While compact in size the Squadron Pro IR is equipped with a sleek black gloss aluminum housing a
Key features
- Beam Pattern: Driving/Combo
- Wattage: 41.400
Specifications
| Amperage Rating (A) | 3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Depth (in.) | 2.760 |
| Description | Driving/Combo; IR 850nm |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 3.070 |
| Lens Color | Infrared |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High (1800mW) |
| Lighting Quantity | 4 |
| Lighting Technology | Osram 850nm LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro Infrared LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 41.400 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
