Description

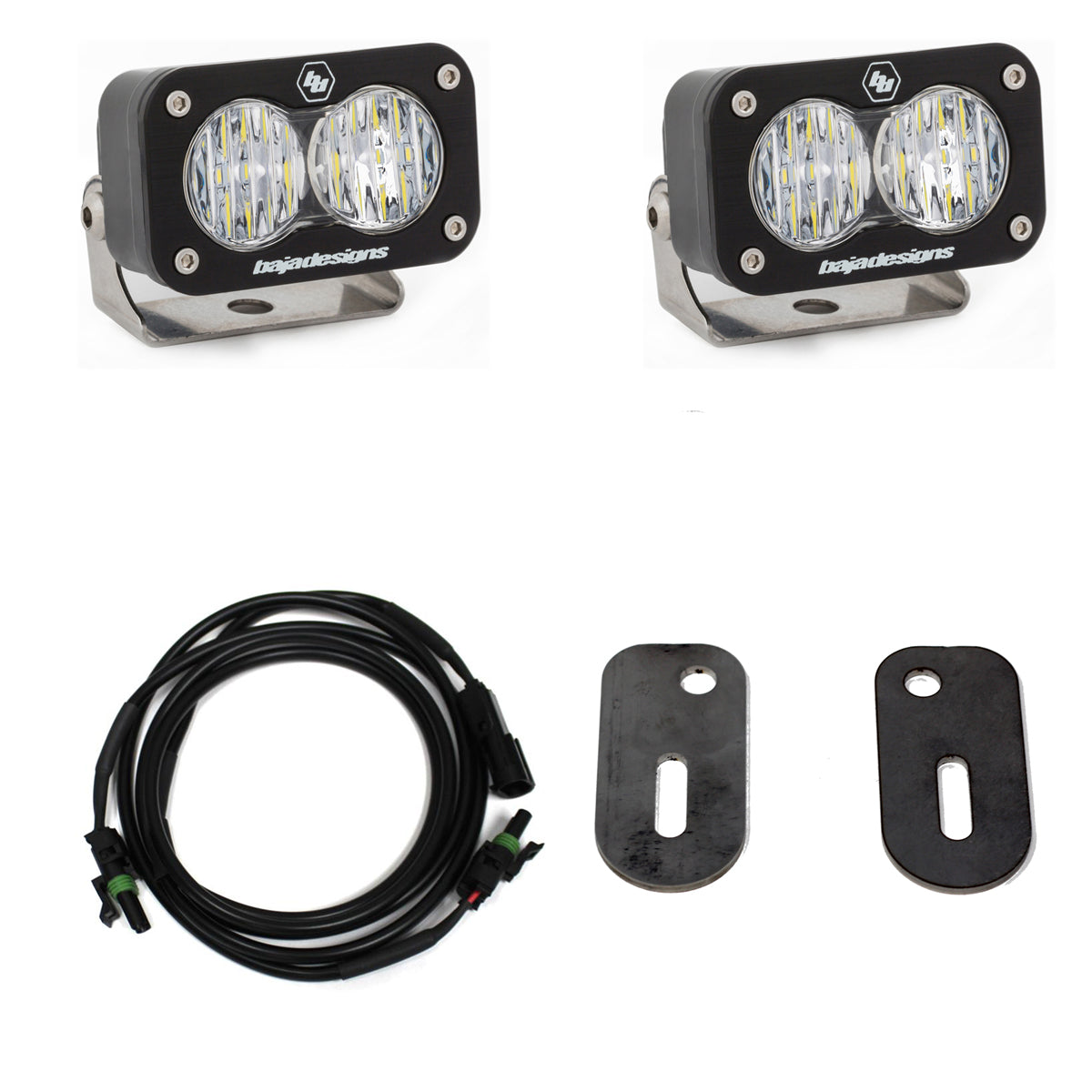

Enhance your Ford Ranger’s (2019-2023) rear visibility with the Baja Designs S2 Sport Reverse Light Kit—engineered for serious off-roaders and everyday utility. This high-performance LED lighting kit features two S2 Sport lights with Wide Cornering lens patterns delivering 1,581 raw lume
Key features
- (2x) S2 Sport – Wide Cornering Clear
- (2x) Mounting Brackets
- (1x) Wiring Harness – 640099
- (1x) 55in. Splitter Harness – 613606
- All Necessary Mounting Hardware
- Lumens: 1,581
- Wattage/Amps: 12.4W / 0.9A
- uService – Replaceable Lenses And Optics
Specifications
| Amperage Rating (A) | 0.900 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 1581 |
| Depth (in.) | 1.680 |
| Description | Wide Cornering; Clear |
| Height (in.) | 1.760 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 2.930 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Sport LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 12.420 |
| Weight (lbs.) | 0.500 |
| Wiring Harness Included | Yes |
Fitment
2019-2023 Ford Ranger
Installation
Manufacturer installation instructions available (PDF).
