Description

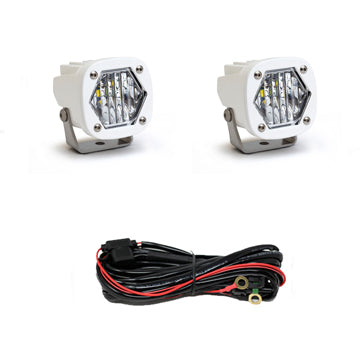

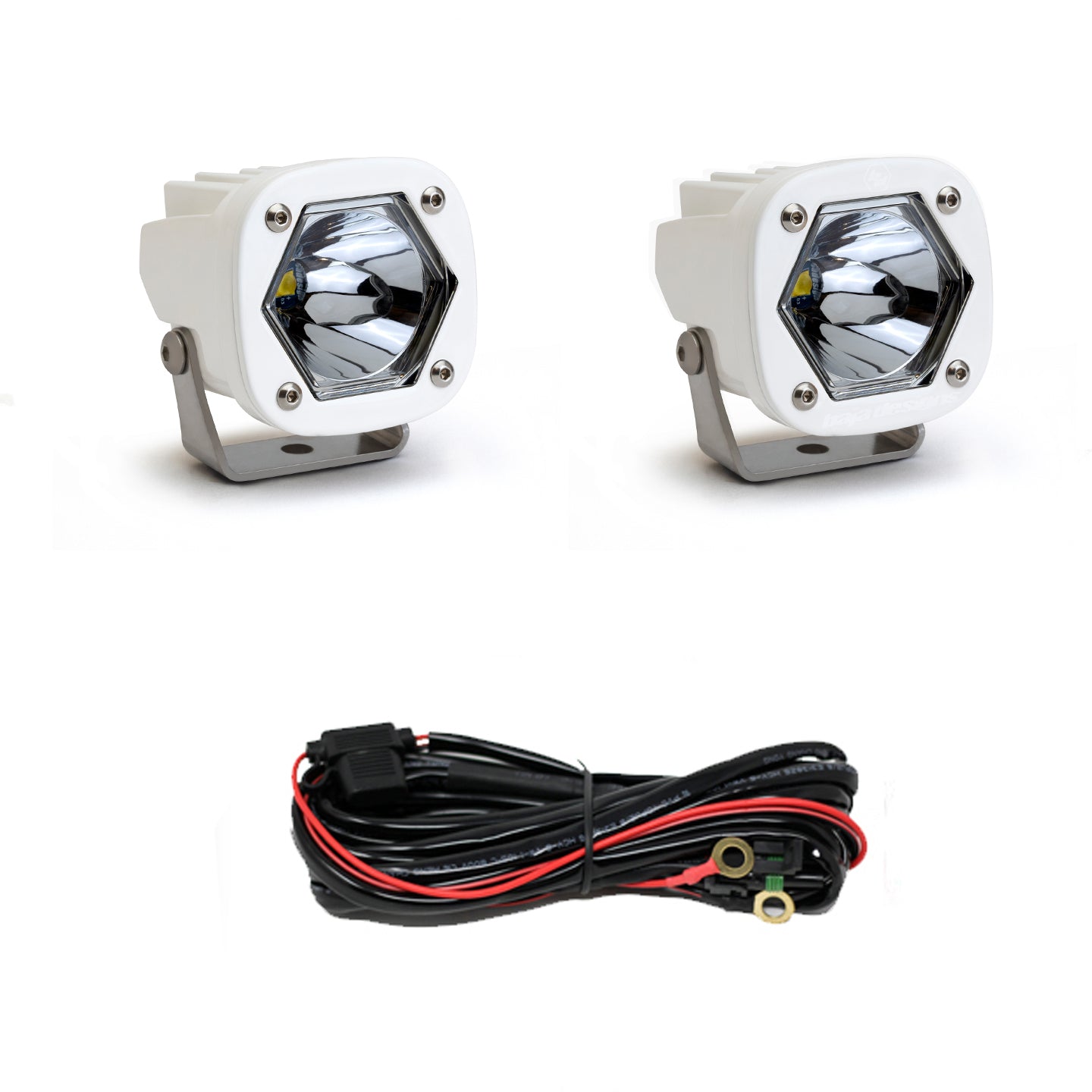

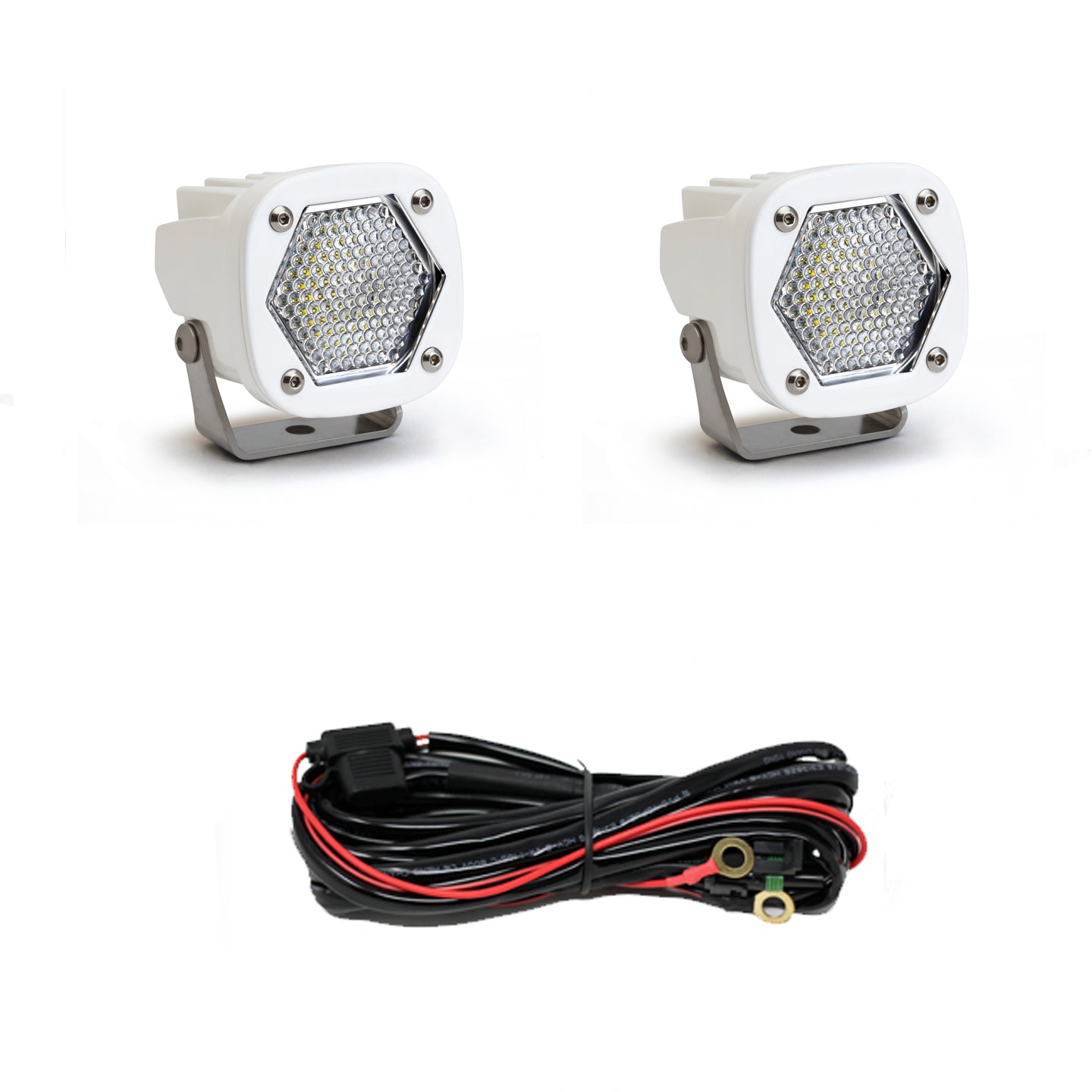

The Baja Designs S1 LED Lights fill the shoes of a large light within a small and compact design. Finished in white powdercoat, the S1 utilizes a highly specialized reflector and next generation LEDs to outshine the competition delivering 2,320 raw lumens per light providing exceptional
Key features
- Beam Pattern: Spot
- Wattage: 19.596
Specifications
| Amperage Rating (A) | 1.420 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Depth (in.) | 2.100 |
| Description | White Housing; Spot; Clear; Pair |
| Height (in.) | 2.100 |
| Housing Color | White |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 2.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod Pair w/ Wiring Harness |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Weight (lbs.) | 0.400 |
| Wiring Harness Included | Yes |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
