Description

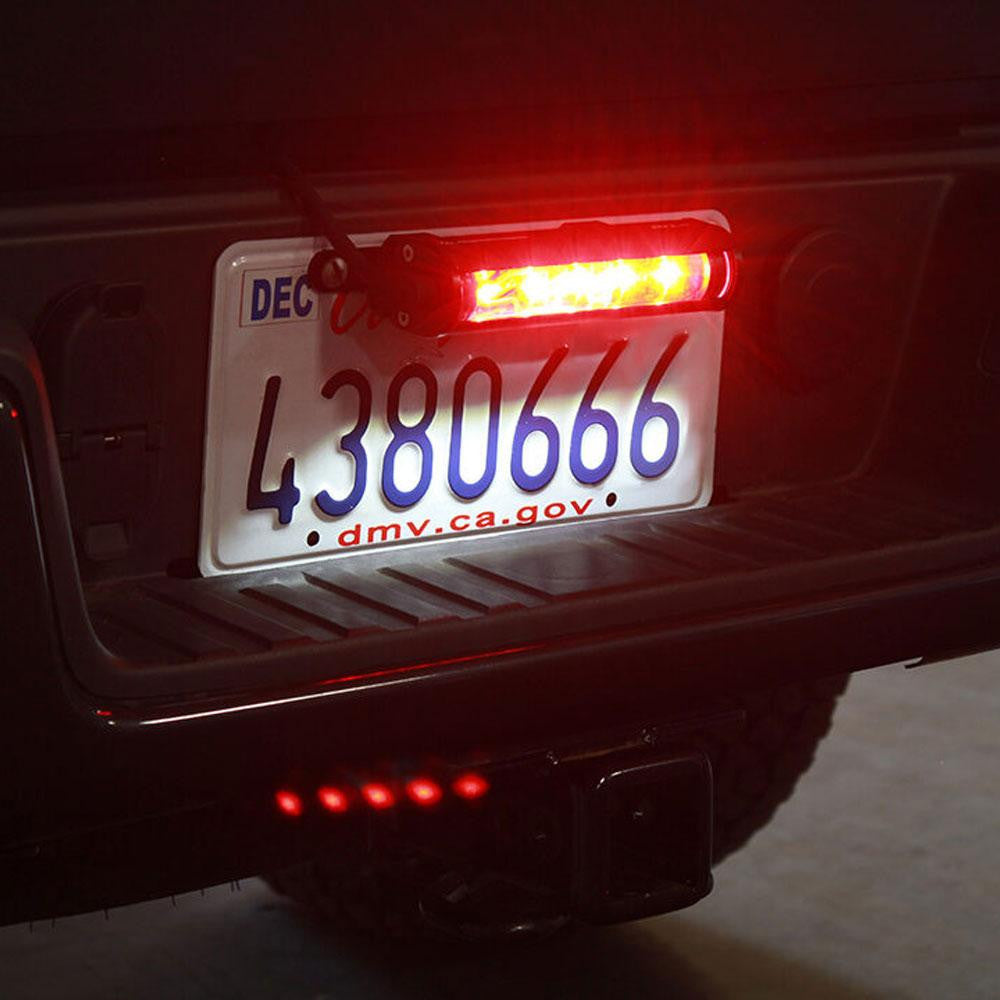

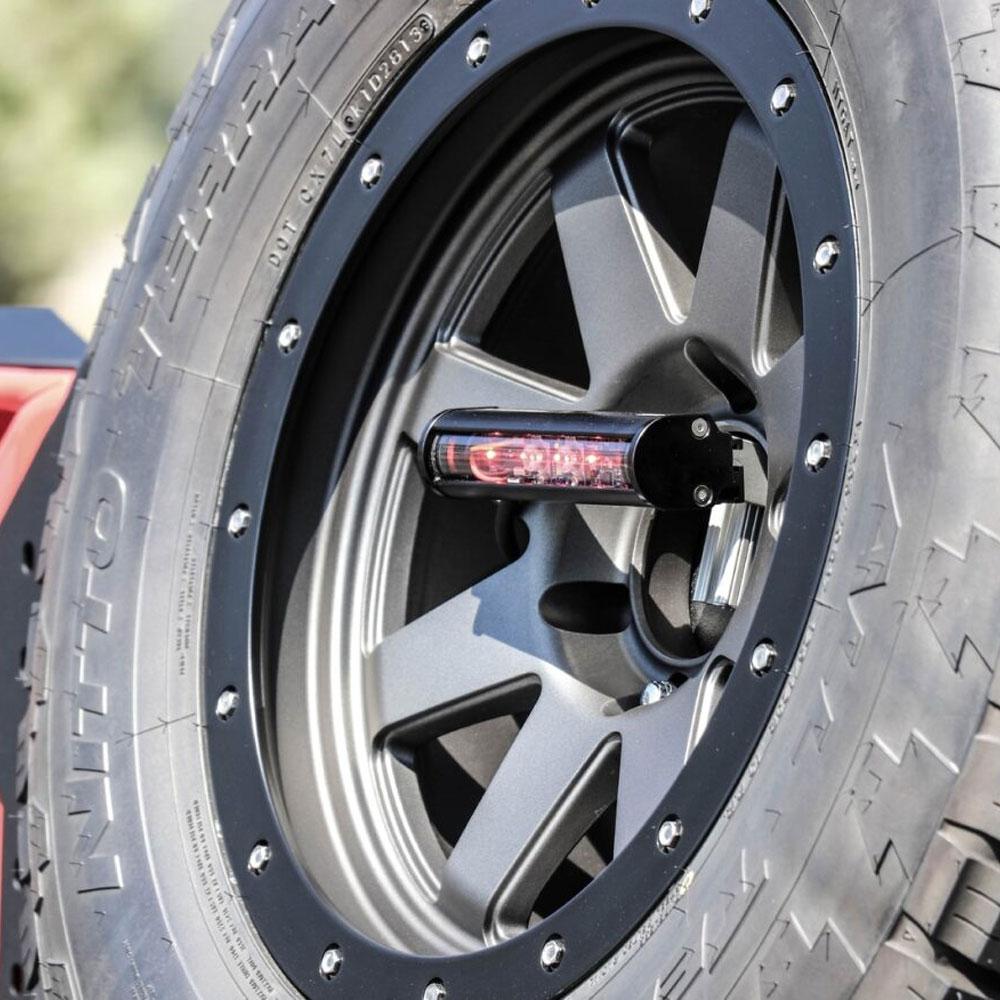

The RTL-M (Rear Tail Light – Mini) is a miniature version of Baja Designs’ existing RTL. At a compact 6-inches, this light bar is exceptionally useful on vehicles where space is limited, such as: Jeeps, motorcycles, UTVs, and ATVs. The RTL-M includes five red LEDs which function as the r
Key features
- Beam Pattern: Rear Tail Light
- Wattage: 5.5 (Brake); 8.5 (Carbo); 2 (License Plate); 0.75 (Tail Light(
Specifications
| Average Rated Life (hr.) | 49,930 |
|---|---|
| Beam Pattern | Rear Tail Light |
| Brightness (Lumens) | 312 |
| Depth (in.) | 2.5 |
| Description | Includes Plate Light |
| Height (in.) | 1.56 |
| Housing Color | Black |
| Length (in.) | 6.69 |
| Lens Color | Red/White Plate Light |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 5 |
| Lighting Technology | LED |
| Lighting Type | Rear Projecting |
| Mounting Hardware Description | Mounting Hardware |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Patent No. | D802,187 |
| Product Type | RTL-M 6 Inch LED Rear Tail Light w/ Plate Light |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Street Legal | Yes |
| Universal or Specific | Universal |
| Wattage (W) | 5.5 (Brake); 8.5 (Carbo); 2 (License Plate); 0.75 (Tail Light( |
| Weight (lbs.) | 1.1 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
