Description

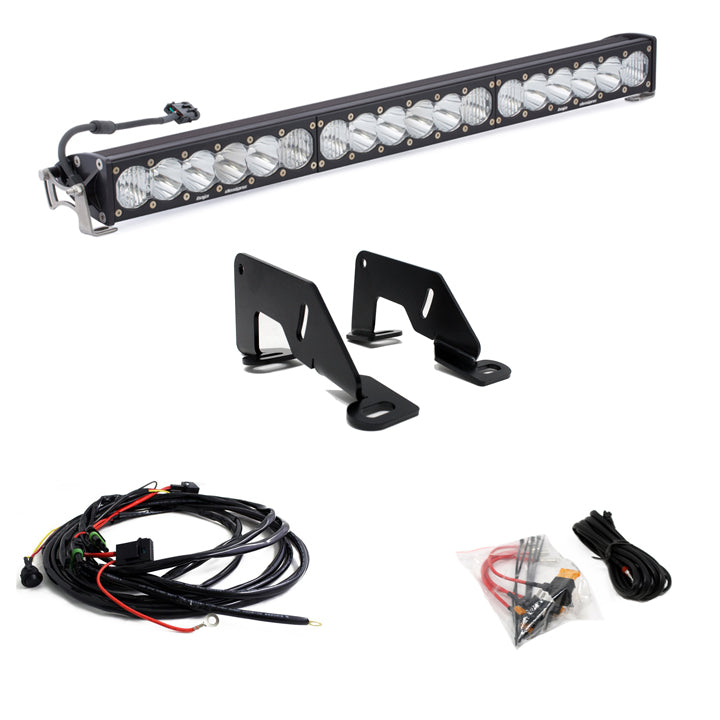

This vehicle specific kit works with the Polaris Pro XP, our OnX6 plus light bar mounts utilizing specially constructed brackets that bolt directly to your vehicle. The OnX6 plus will set your vehicle apart from the rest with its ample light output. This light bar utilizes a combination
Key features
- Beam Pattern: Driving/Combo
- Wattage: 281 (High); 225 (Low)
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 31,910 (High); 25,450 (Low) |
| Depth (in.) | 4.29 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 20 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 281 (High); 225 (Low) |
| Weight (lbs.) | 11.45 |
| Wiring Harness Included | No |
Fitment
2020-2026 Polaris RZR Pro XP
Installation
Manufacturer installation instructions available (PDF).
