Description
The OnX6+ Arc Series is the perfect combination of performance and aesthetics. The latest generation of the OnX6+ series is the most elite LED light bar utilizing high-speed spot reflectors for increased performance and versatility. We use next-generation LEDs that provide 37% greater di
Key features
- Beam Pattern: Spot
- Wattage: 346 (High)
Specifications
| Amperage Rating (A) | 28.2 (High) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,910 (High) |
| Depth (in.) | 4.29 |
| Description | Arc; Spot; Clear |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 50 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam |
| Lighting Quantity | 30 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |

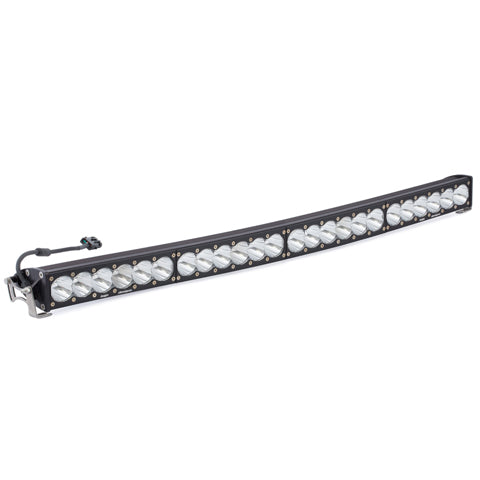

| Product Type | OnX6+ 50 Inch Arc LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 346 (High) |
| Weight (lbs.) | 18.65 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
