Description
The Baja Designs OnX6+ 20-inch LED light bar grille kit for the Ford Ranger (2019-2023) is the ultimate lighting kit for the popular Ford truck. The 20-inch OnX6+ light bar is the pinnacle of offroad lighting, offering 24, 920 raw lumens of powerful forward illumination to illuminate zon

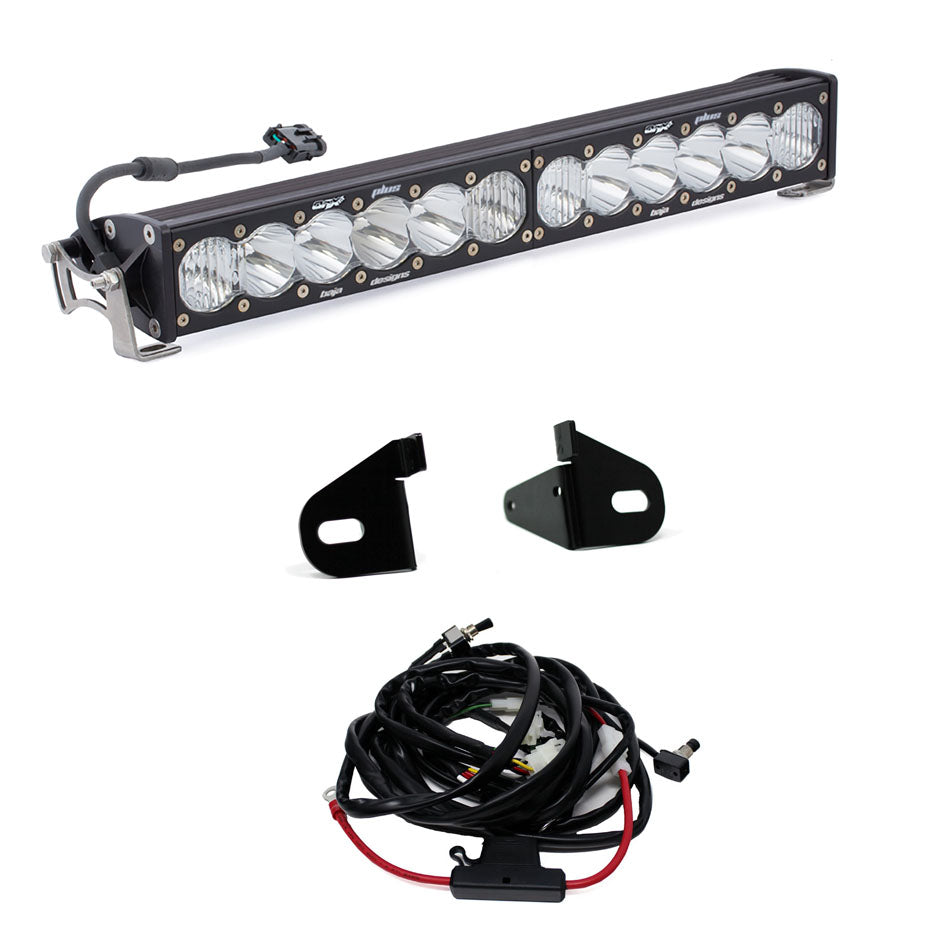

Key features
- (1x) OnX6+ 20-inch LED Light Bar – Driving Combo Clear
- (2x) Mounting Brackets
- (1x) Wiring Harness – 640115
- All Necessary Mounting Hardware
- Lumens: 24,920 (High); 18,460 (Low)
- Watts/Amps: 216W (High); 160W (Low)/ 6 A(High); 12.0A (Low)
- NOTE: To take full advantage of Hi/Low functionality, you will need harness 640119
- uService – Replaceable Lenses and Optics
Specifications
| Amperage Rating (A) | 16.6 (High); 12.0 (Low) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 24,920 (High); 18,460 (Low) |
| Depth (in.) | 4.29 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 20 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 12 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 20 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 216 (High); 160 (Low) |
| Weight (lbs.) | 7.85 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
2019-2023 Ford Ranger
Installation
Manufacturer installation instructions available (PDF).
