Description
The Baja Designs S1 Moto kit was designed with the enthusiast in mind! This kit requires very little power to run and can be ridden off of as sole headlight or as an addition to our other headlight kits. The bracketry is sturdy and allows for you to mount off of the forks of most dirt bi
Key features
- 129039 - CRF250R/450R (2009)
- 129041 - CRF250R/450R (13-16)
- 129042 - YZ250F (14-17)/250FX (15-18)/450F (14-17)/FX (16-18)
- 129046 - YZ450F (10-13)
- 129044 - RMZ250 (10-16)/RMZ450 (08-16)
- 129043 - KX250F/450F (09-18)
- (2x) S1, Clear (Spot/Spot or Spot/Trail multi-pattern setup)
- (1x) Splitter Harness (613607)
Specifications
| Amperage Rating (A) | 1.420 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Depth (in.) | 2.100 |
| Description | Spot; Clear |
| Height (in.) | 2.100 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 2.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Weight (lbs.) | 0.400 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
What's included

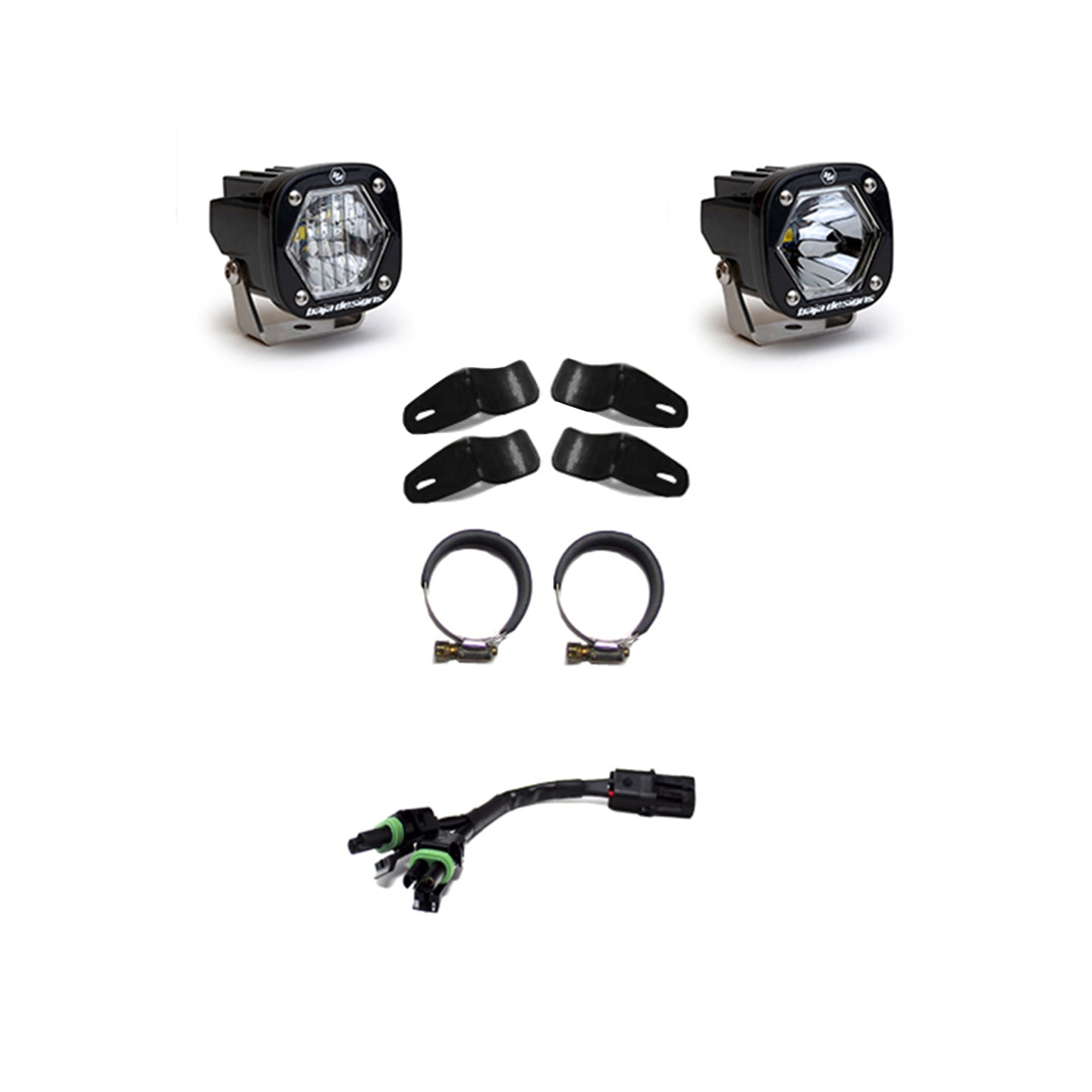

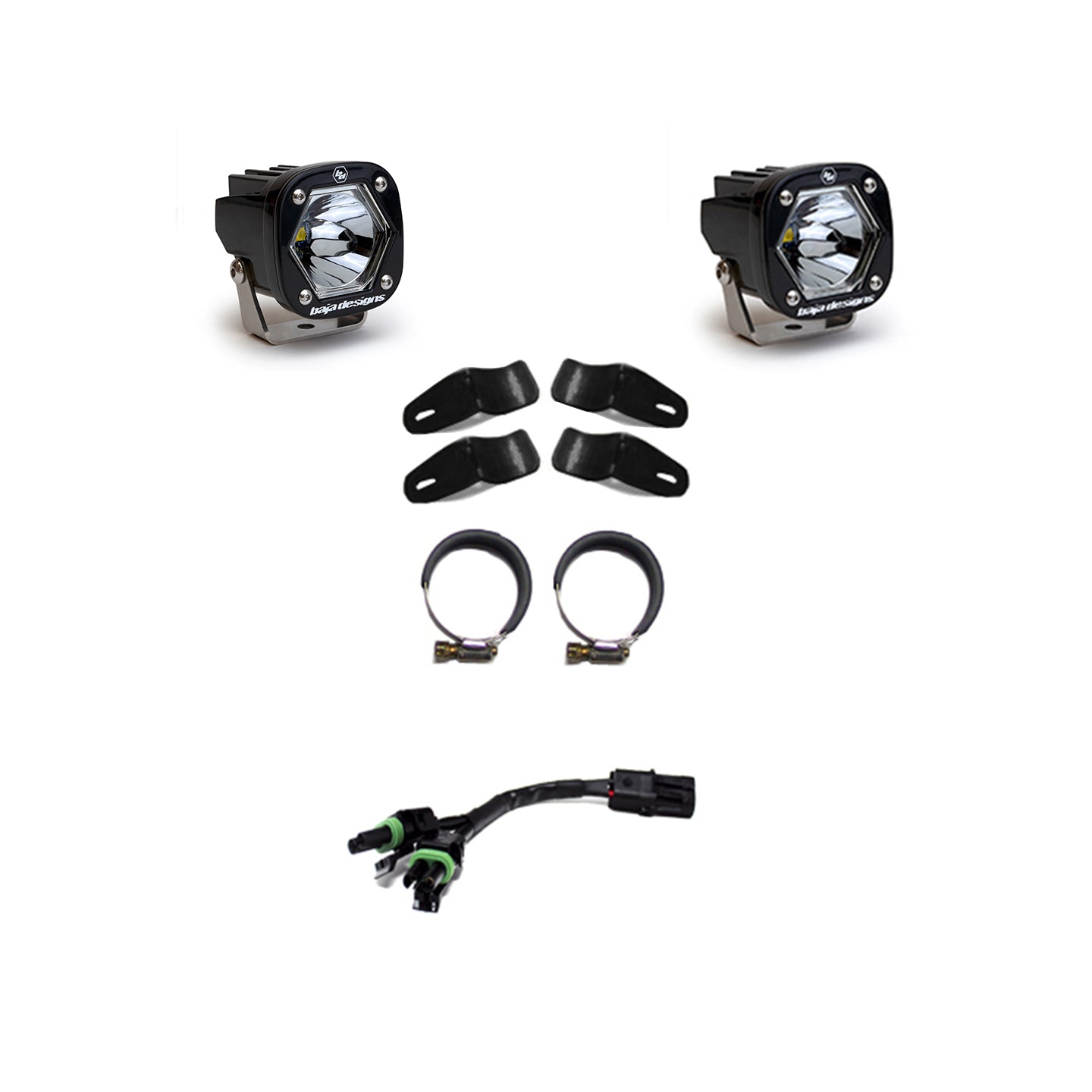

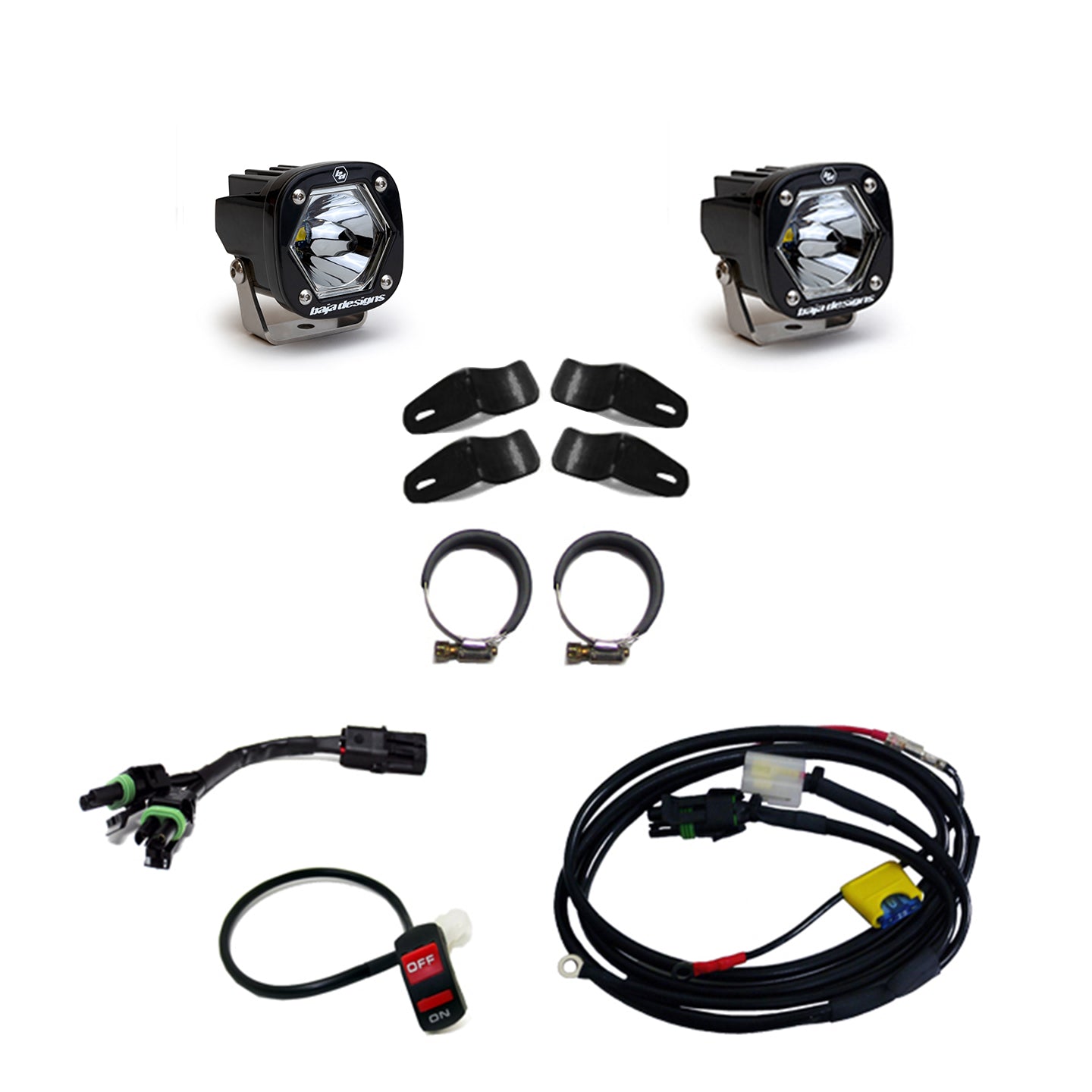

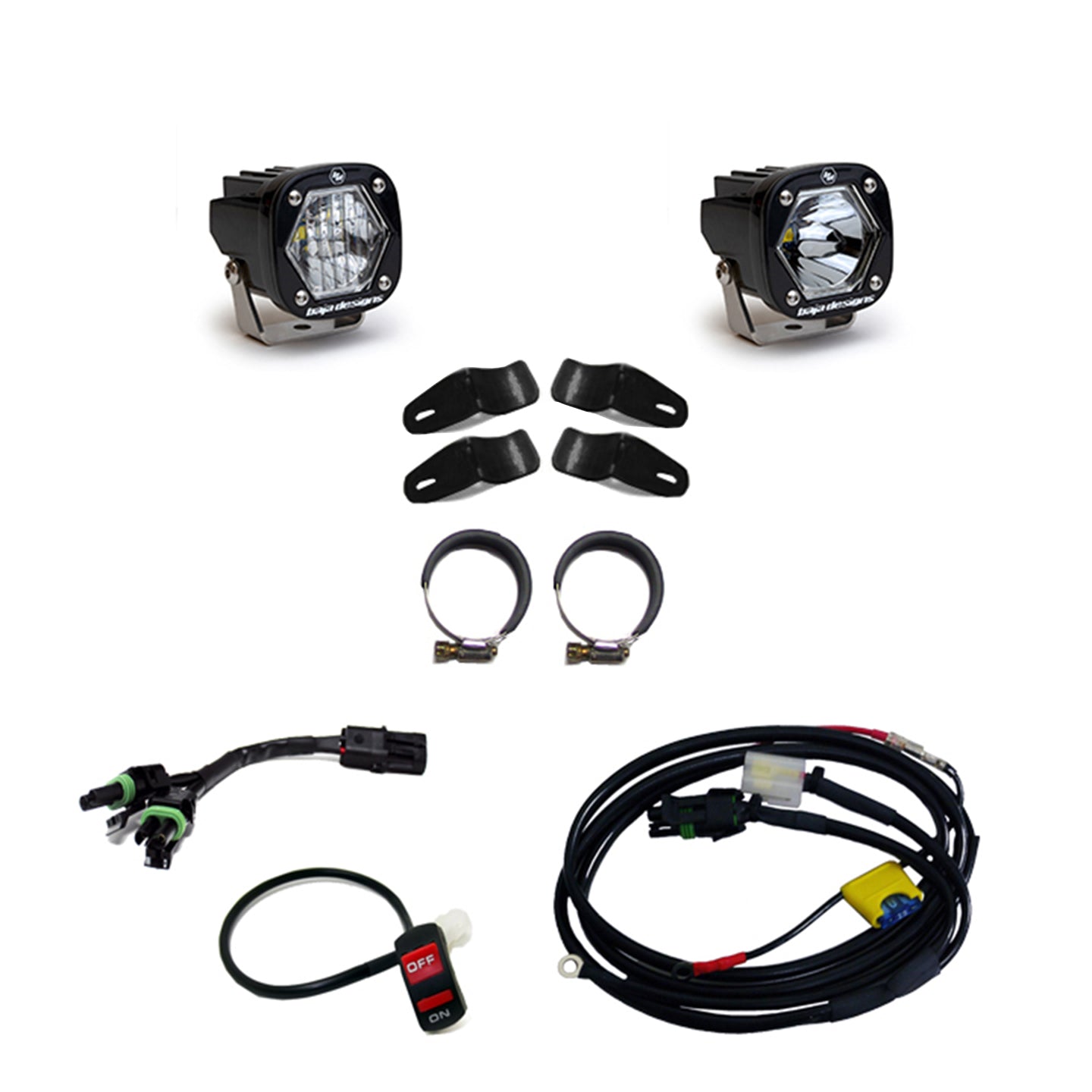

(2x) S1, Clear (Spot/Spot or Spot/Trail multi pattern setup) (1x) Splitter Harness (613607) (1x) Universal Motorcycle Harness w/ switch (611049) (4x) Tecate Bracket Mount (2x) Hose Clamps All necessary mounting hardware S1 Specifications (per light) Lumens: 2,320 19
Installation
Manufacturer installation instructions available (PDF).
