Description
The LP9 Sport caters to enthusiasts seeking a full-size light with contemporary styling and advanced features. Retaining all the technology that makes the LP9 series popular, the Sport model incorporates features like Direct Ducted Cooling for optimal performance under stress and Integra
Key features
- Beam Pattern: Spot
- Wattage: 21
Specifications
| Amperage Rating (A) | 6.400 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 9421 |
| Depth (in.) | 3.250 |
| Description | Spot; Clear |
| Height (in.) | 8 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Length (in.) | 8 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 9 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Patent No. | 5,504,603 |

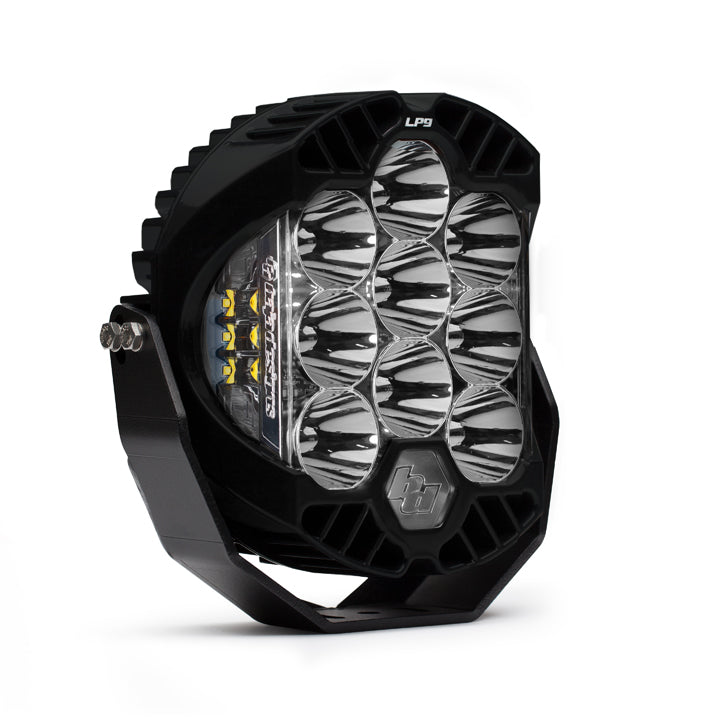

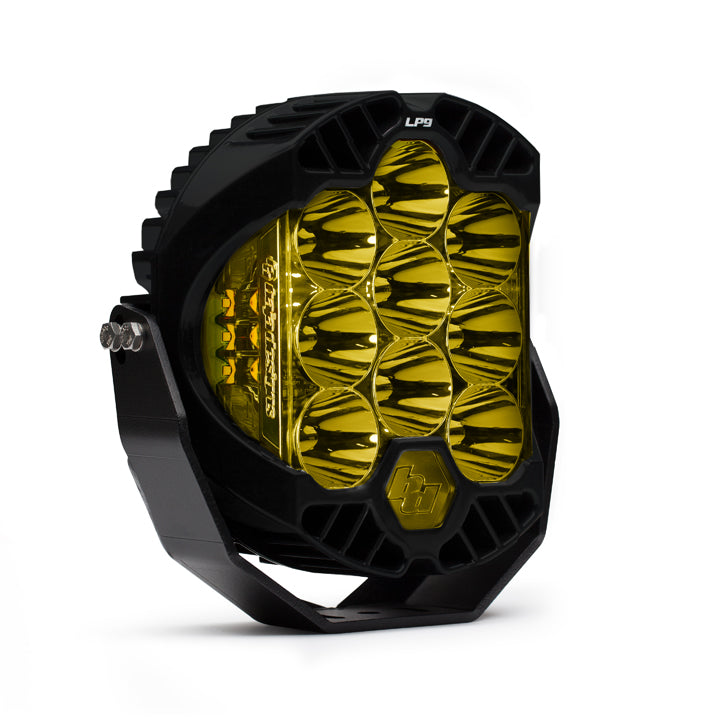

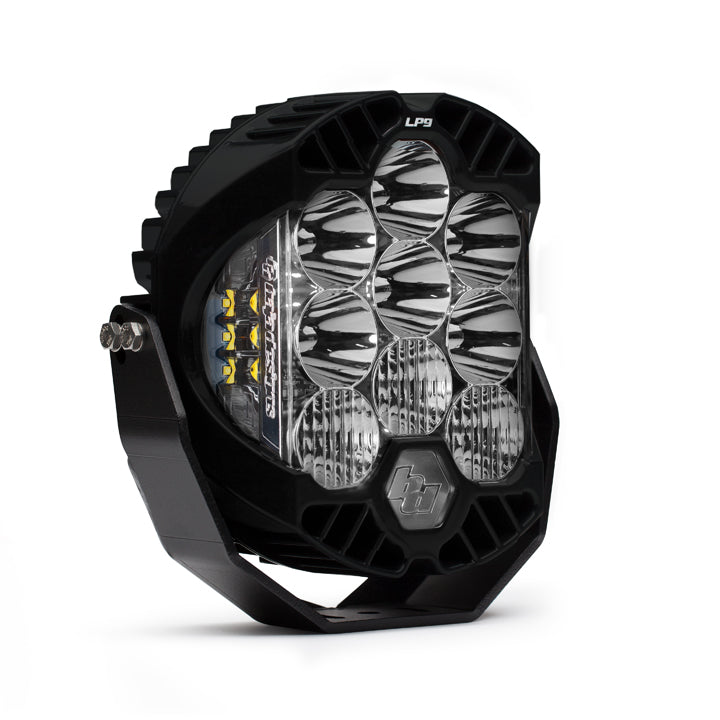

| Product Type | LP9 Sport LED Light Pod |
| Secondary Amperage Rating (A) | 1.520 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 88.320 |
| Weight (lbs.) | 6.500 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
