Description

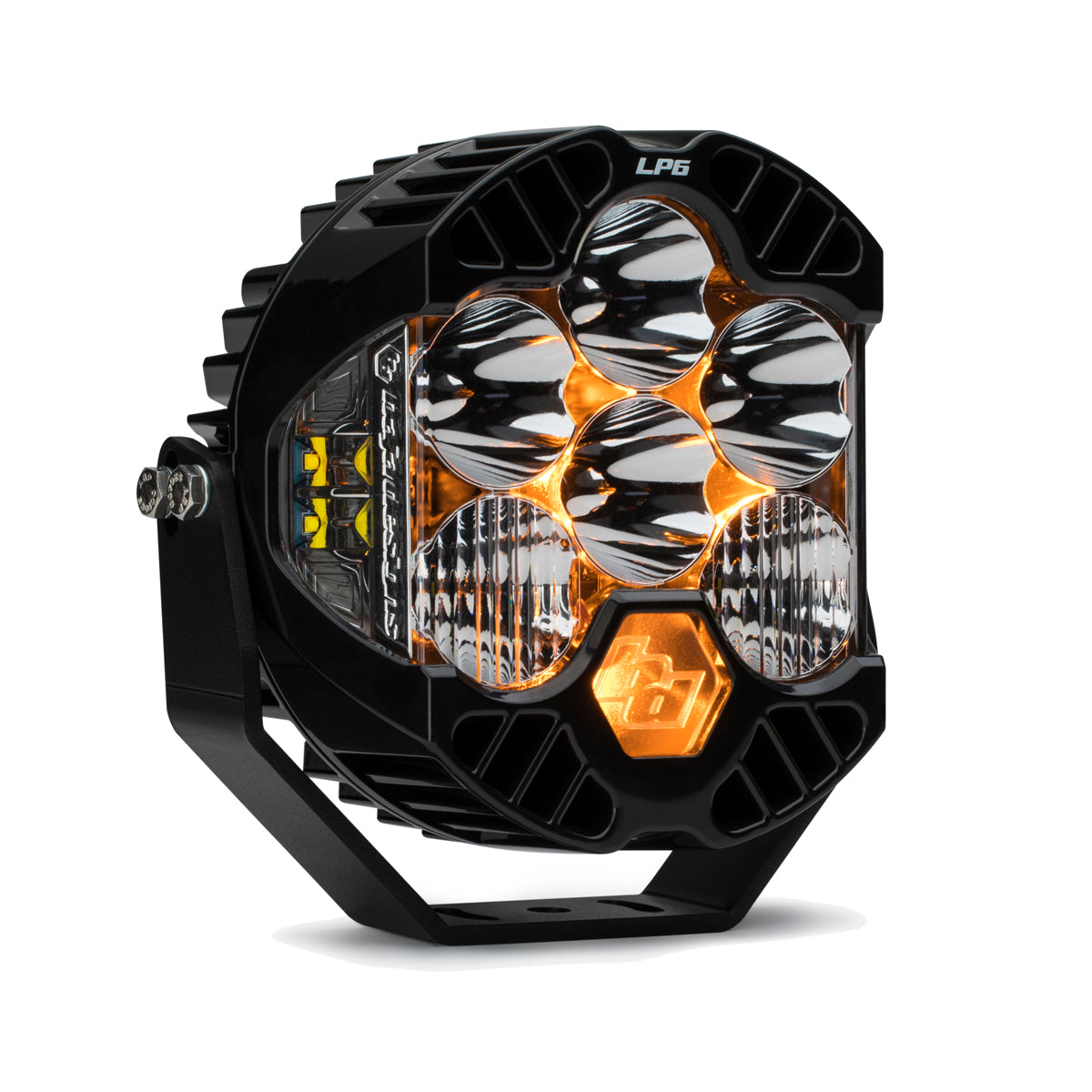

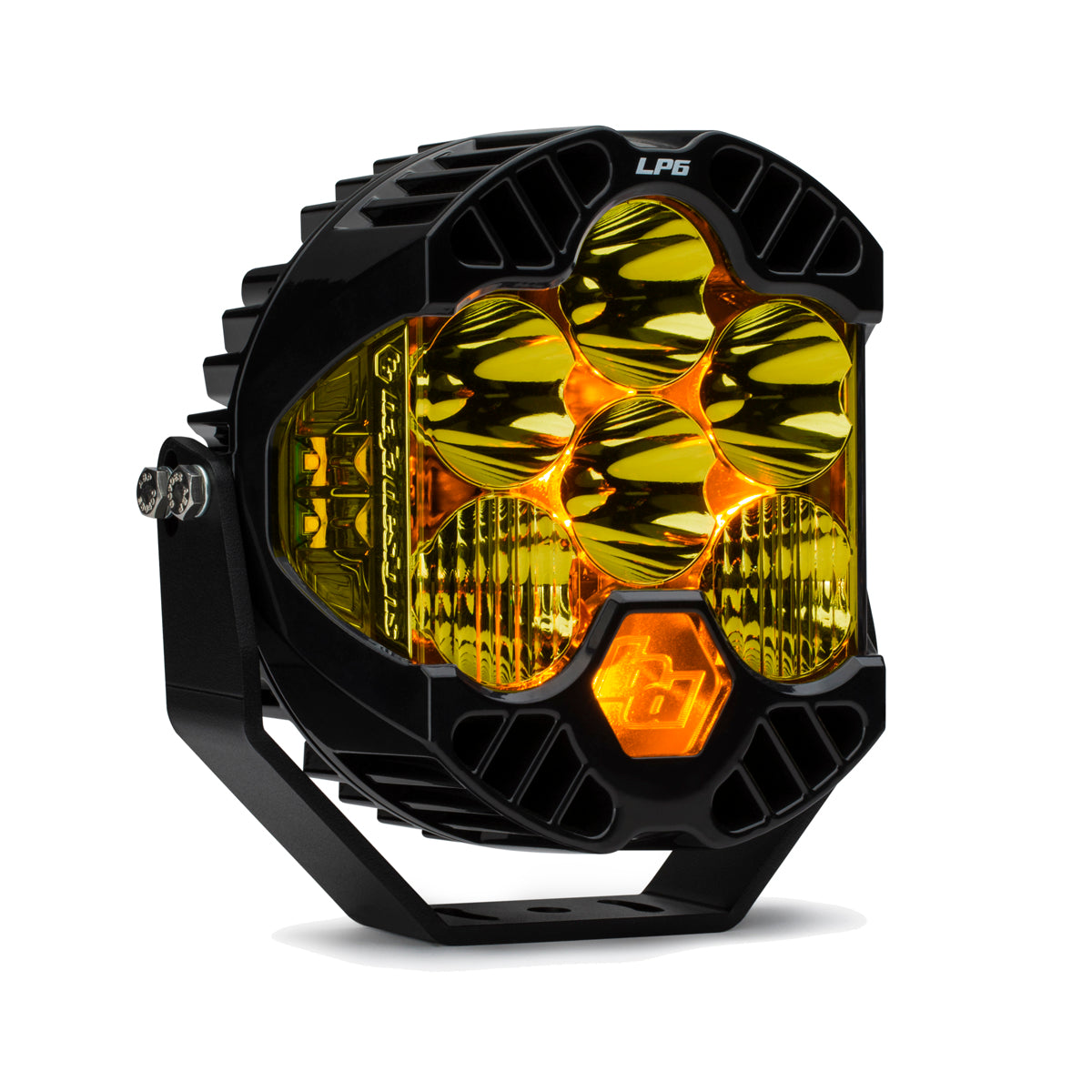

The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient
Key features
- Beam Pattern: Spot
- Wattage: 15
Specifications
| Amperage Rating (A) | 7.500 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.300 |
| Backlight Wattage (W) | 4.140 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 11225 |
| Depth (in.) | 3.200 |
| Description | Spot; Clear |
| Height (in.) | 6.500 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Length (in.) | 6.500 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP6 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 103.500 |
| Weight (lbs.) | 4.200 |
| Wiring Harness Included | No |
Fitment
Universal / non-vehicle-specific
Installation
Manufacturer installation instructions available (PDF).
