Description
The Baja Designs LP4 Pro Bumper LED light kit for the Jeep JL/JT with plastic bumpers has been deisgned to take the guess work out of installation to provide enthusiasts a solution that will light up the trails. The LP4 is the smallest variant in the LP line up but maintains all of the p
Key features
- Kit designed specifically for the Jeep JL/JT plastic bumper models.
- 8,857 Total Lumens per light
- Amber backlight feature
- Lifetime limited warranty

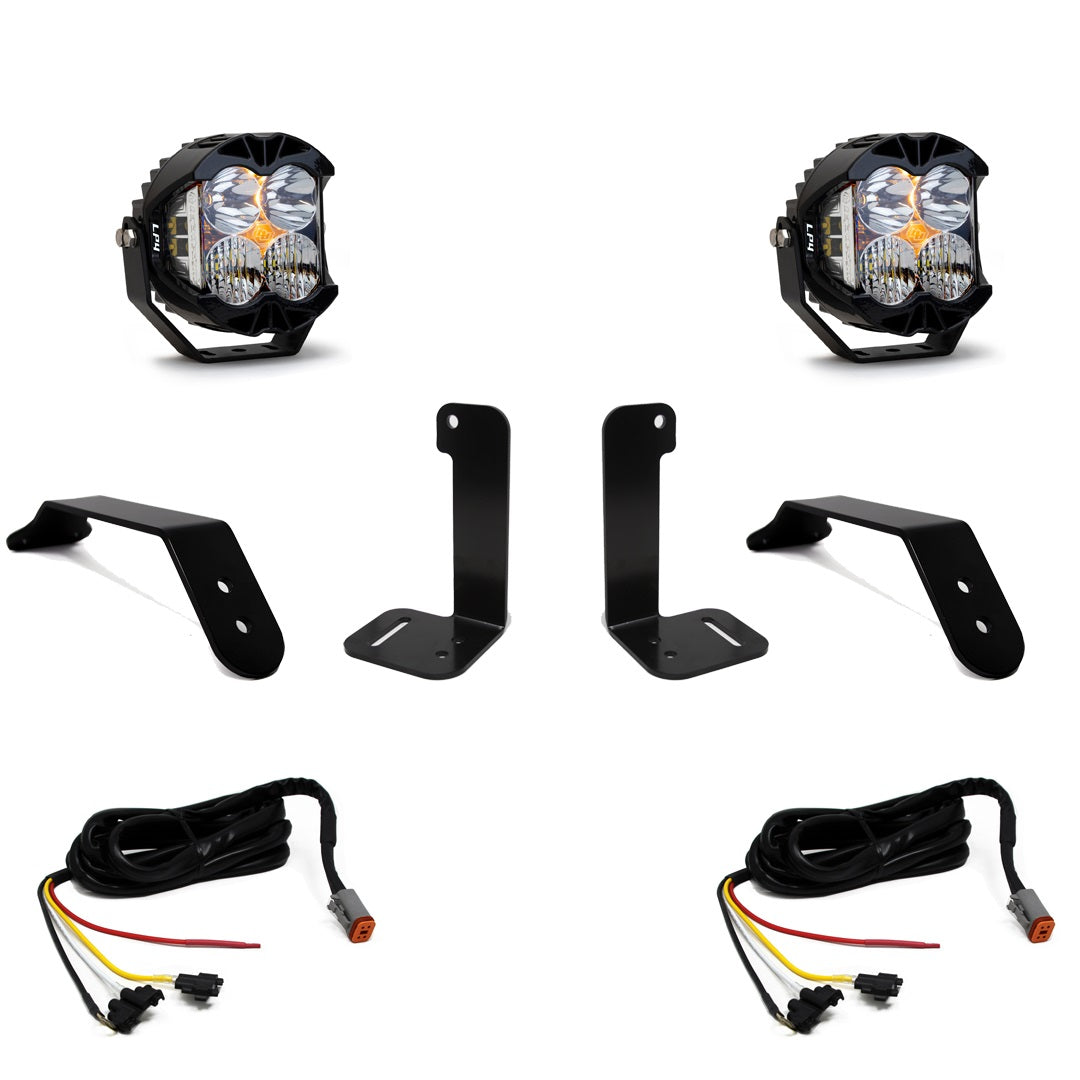

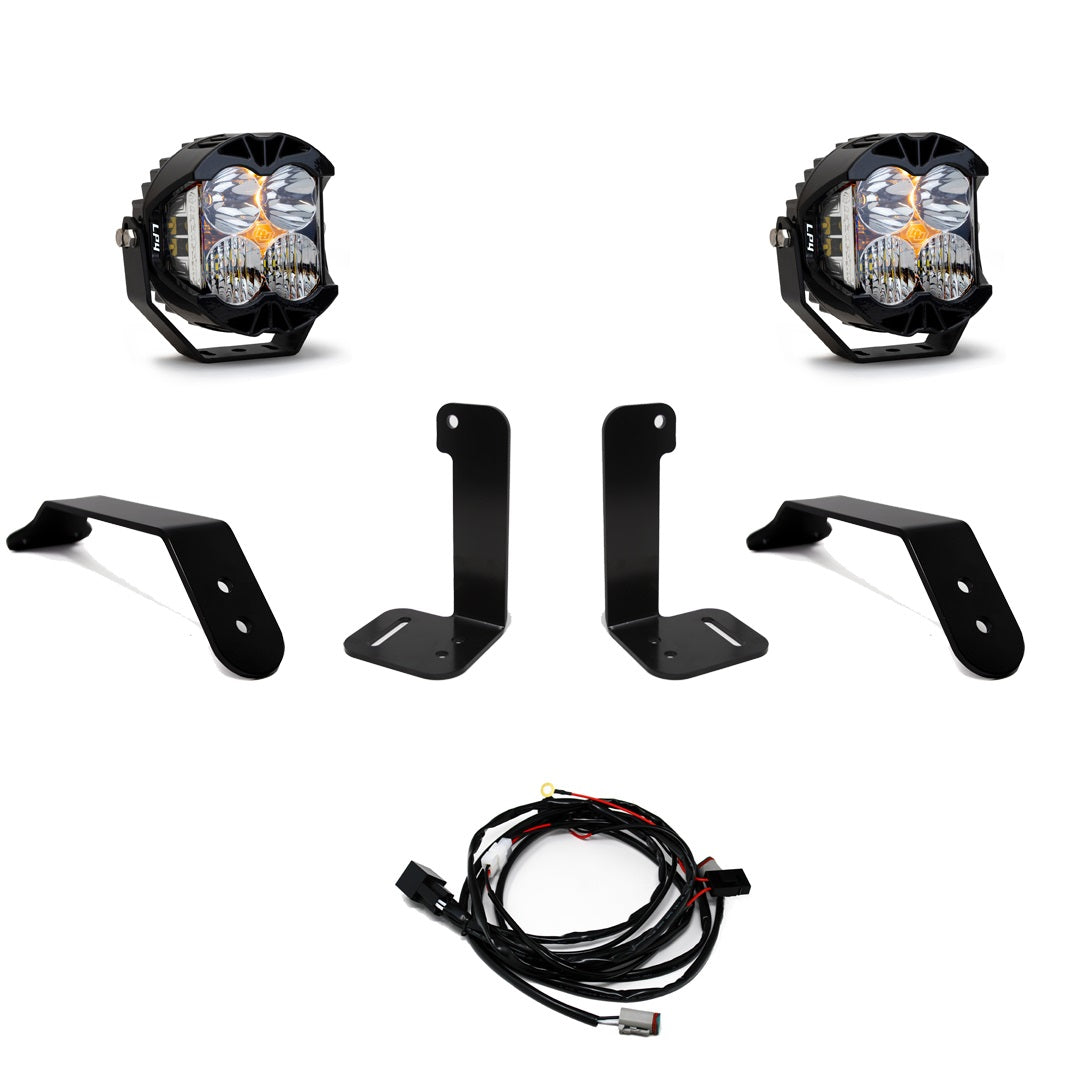

- (2x) LP4 Pro, Clear Driving Combo
- (2x) Bumper Bracket Support
- (2x) Light Mount Bracket
- (447658) Toggle Wiring Harness or (447658UP) LP4 Upfitter Harness
Specifications
| Amperage Rating (A) | 5.500 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Depth (in.) | 3.200 |
| Description | Driving/Combo; Clear |
| Height (in.) | 5.100 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Length (in.) | 5.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Weight (lbs.) | 2.800 |
| Wiring Harness Included | No |
Fitment
2020-2026 Jeep Gladiator
Installation
Manufacturer installation instructions available (PDF).
