Description

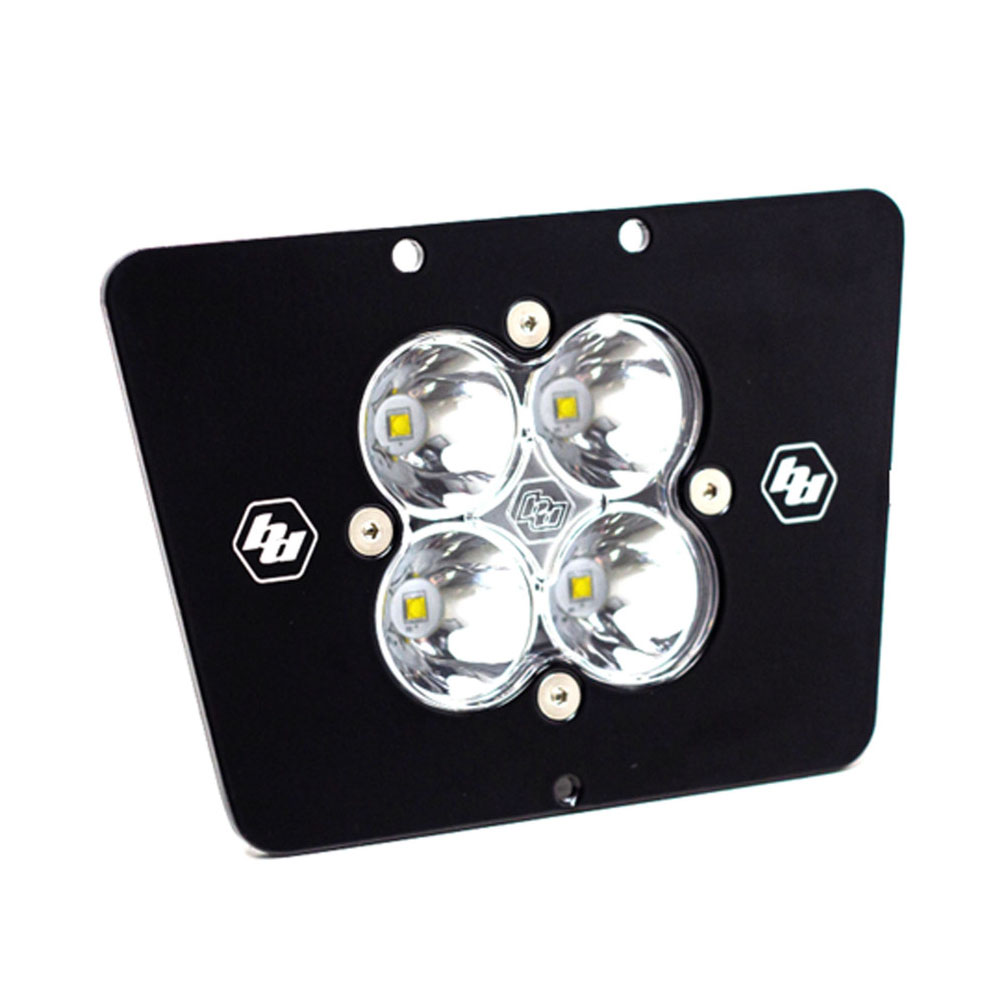

Upgrade your night rides with the Baja Designs Squadron Pro (DC) headlight kit for the Honda CRF250X (’04-17)/CRF450X(’05-18)/CRF450RX (’17-18) dirt bikes. Engineered for riders who are looking to get the most out of their time on their Honda motorcycles, the Squadron Pro LED light kit p
Key features
- (1x) Squadron Pro, Spot Clear
- (1x) Honda CRF 2/4 Mount Plate
- (1x) Weather pac 2-pin Connector Kit
- All Necessary Mounting hardware
- An aftermarket stator rewind is required to power this light for CRF250X/450X models '04-18.
- Universal Motorcycle Harness w/switch will be needed to run light (SKU: 611049)
- Lumens: 4,095
- Wattage/Amps: 41.4W / 3A
Specifications
| Amperage Rating (A) | 3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Depth (in.) | 2.770 |
| Description | Driving/Combo; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 41.400 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Installation
Manufacturer installation instructions available (PDF).
