Description

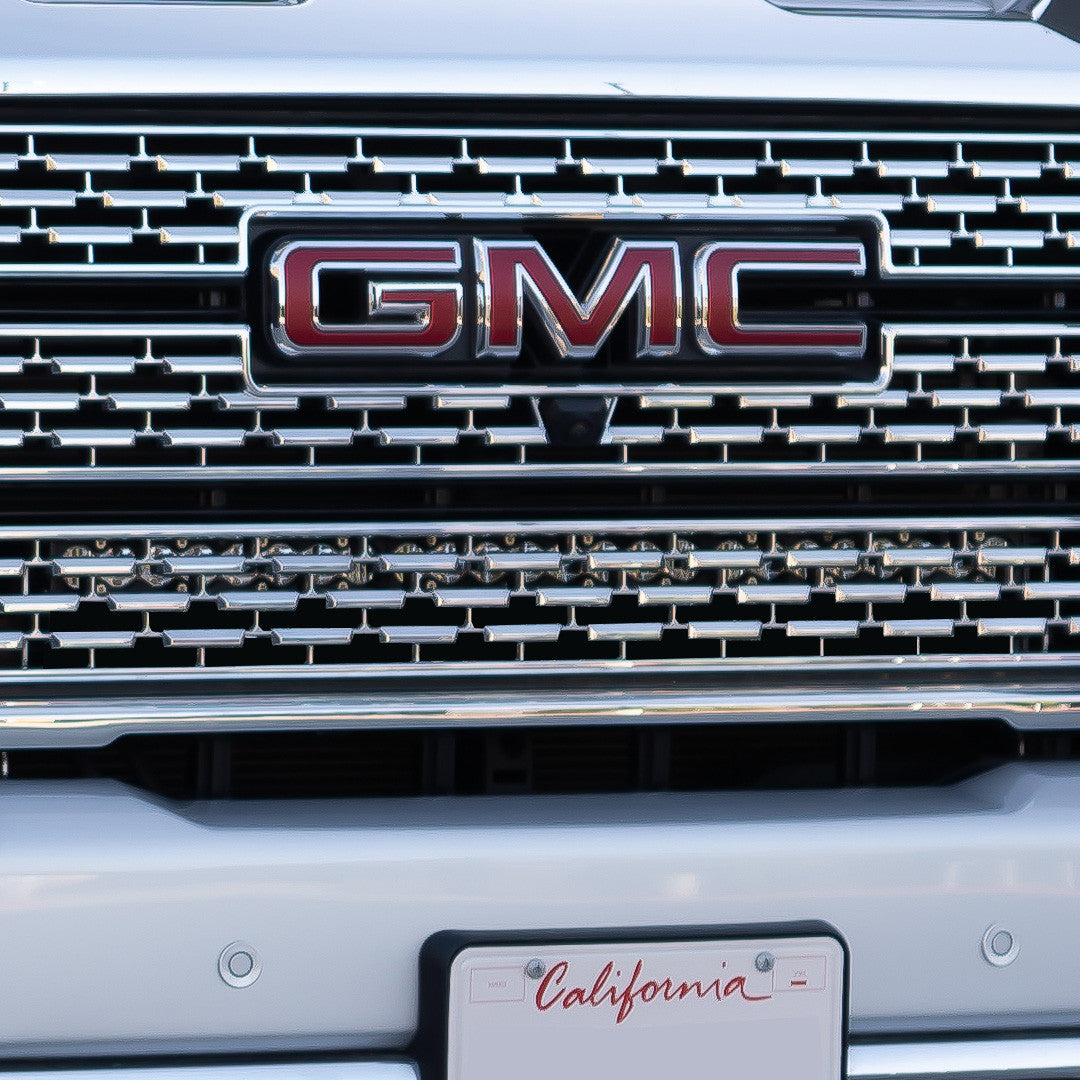

For anyone that's interested in serious lighting performance with styling in mind, the S8 behind-the-grille kit for the GMC Sierra 2500HD/3500HD ('20-23) will provide you with 19,050 raw lumens and an amber backlit feature without cutting or drilling. This kit will include a wiring harne
Key features

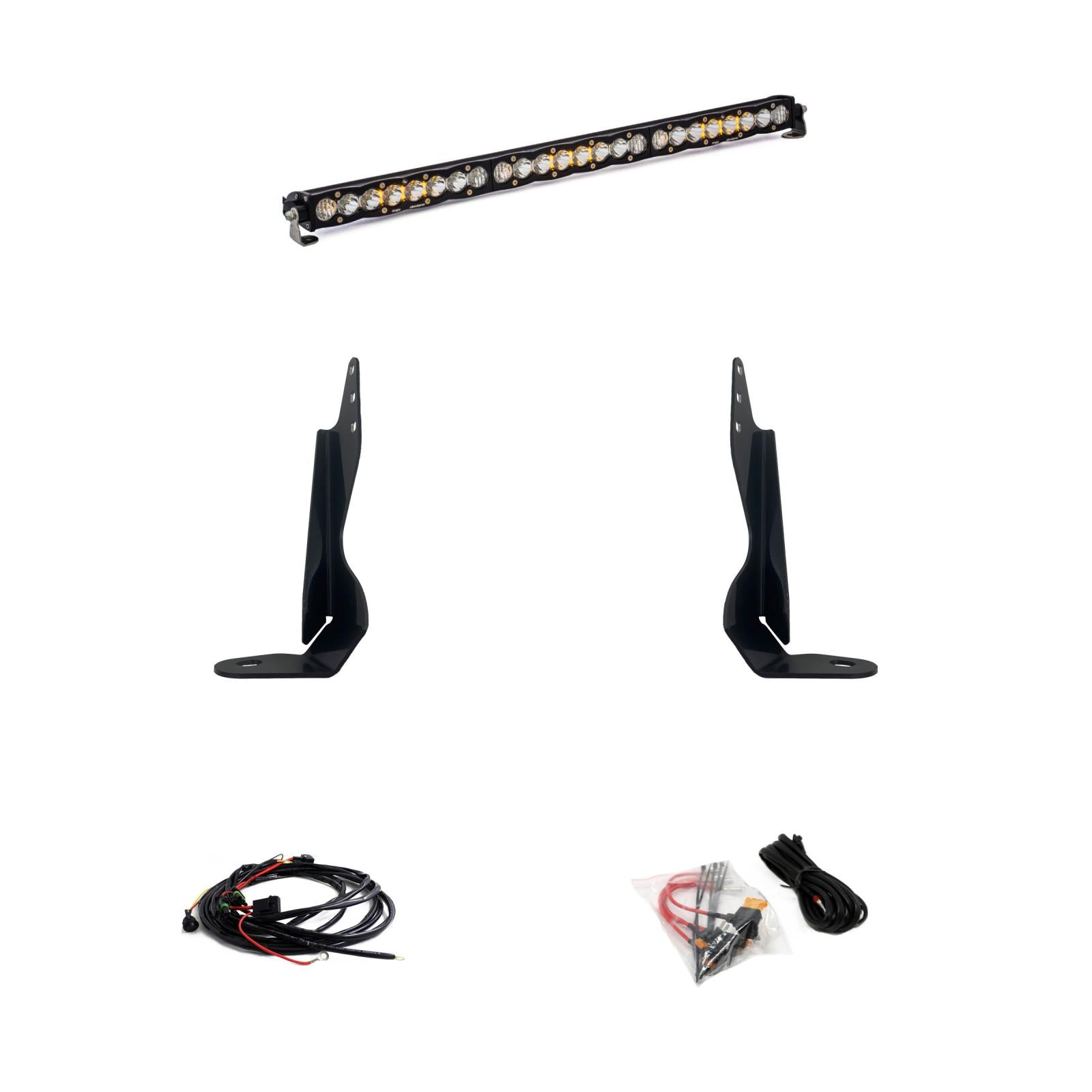

- (1x) S8 30" light bar, driving combo clear
- (2x) Behind the grille mounting brackets
- (1x) Wiring harness - 640115
- (1x) S8 backlight wiring harness add-on - 640177
- All Necessary Mounting hardware
- Lumens: 19,050
- Watts/Amps: 180W/12A
- Satisfaction Guarantee – 30-Day Money Back Guarantee
Specifications
| Amperage Rating (A) | 12.0 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 19,050 |
| Depth (in.) | 3 |
| Description | Driving/Combo; Clear |
| Height (in.) | 1.6 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 30 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 24 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Patent No. | D780,964 |
| Product Type | S8 30 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 180 |
| Weight (lbs.) | 6.5 |
| Wiring Harness Included | No |
Fitment
2020-2023 GMC Sierra 2500HD/3500HD
Installation
Manufacturer installation instructions available (PDF).
