Description

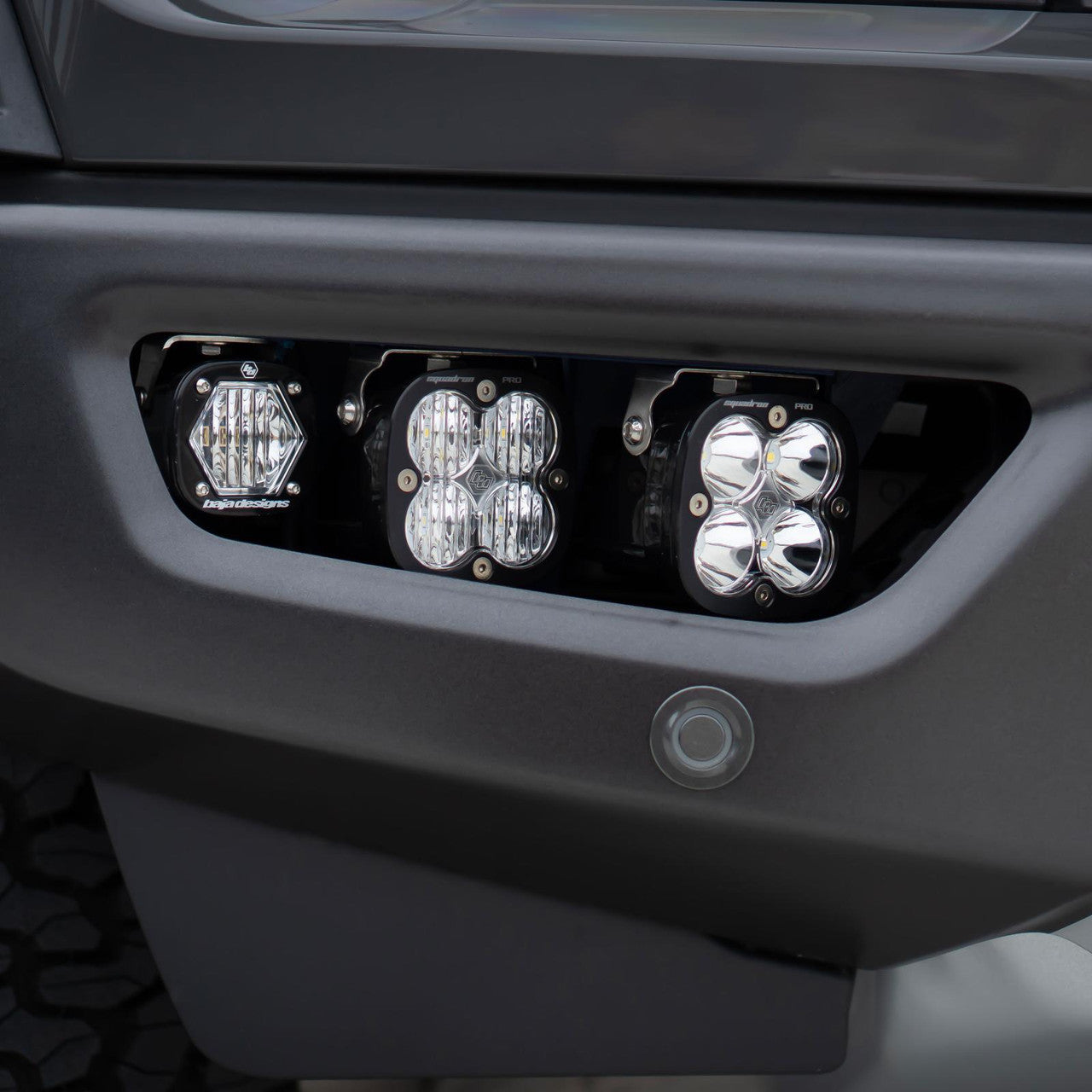

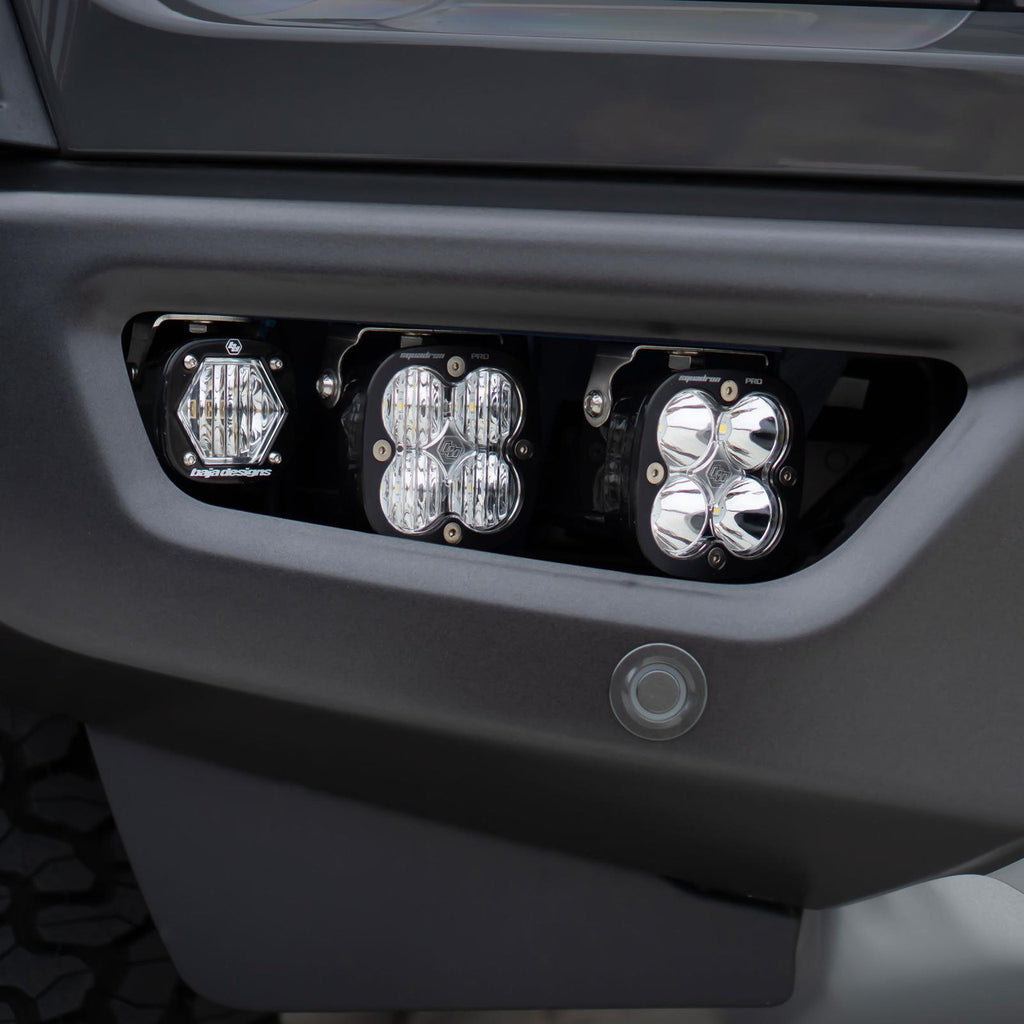

The Baja Designs “Unlimited” fog pocket light kit for the 2021-2025 Ford Raptor is the ultimate fog light kit for the trails. Designed for max visibility and performance, this all-in-one kit is the perfect fog light option for those looking to take their lighting to the next level. This

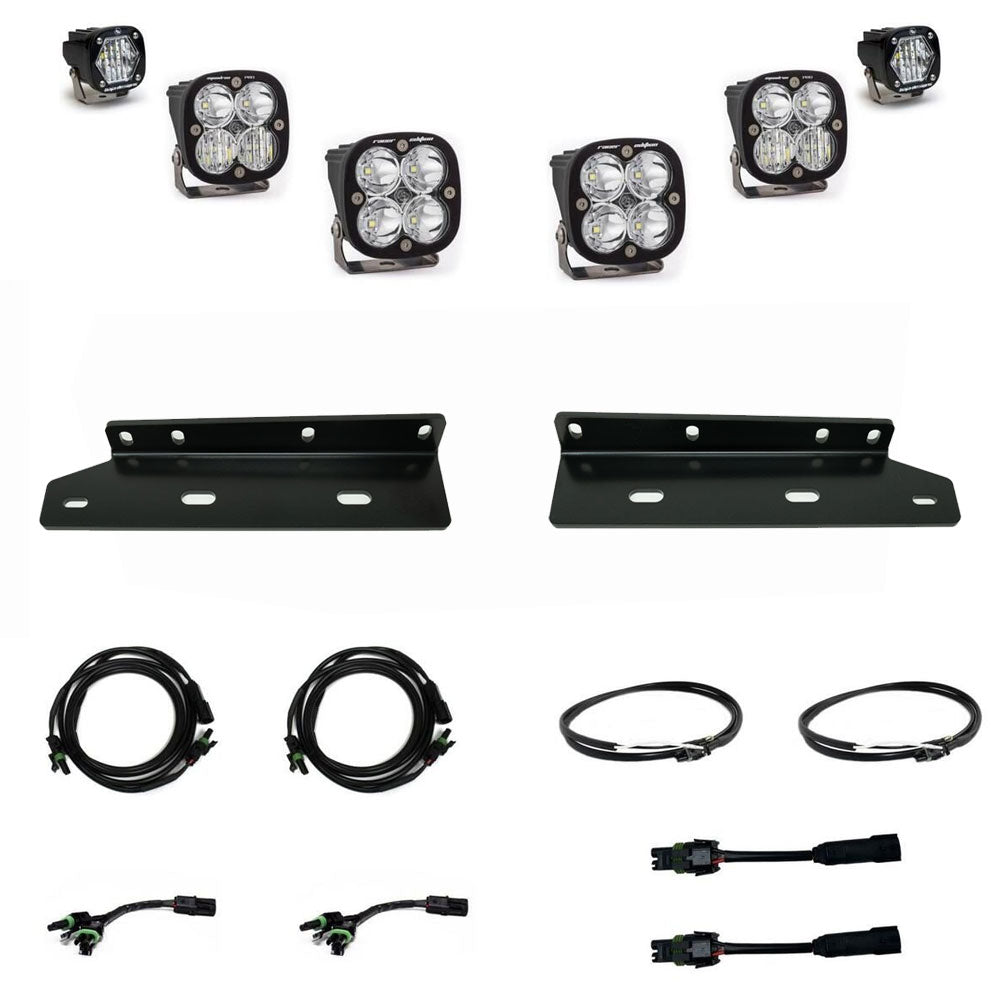

Key features
- (2x) S1 - Wide Cornering Clear
- (2x) Squadron Pro - Driving Combo Clear
- (2x) Squadron Racer - Spot Clear
- (2x) Mounting Brackets
- (2x) Adaptor Harness (60-0009)
- (2x) Add-a-light Splitter (61-3607)
- (2x) Harness, Splitter 55" (61-3606)
- (2x) Upfitter Harness (64-0093)
Specifications
| Amperage Rating (A) | 1.420 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Depth (in.) | 2.100 |
| Description | Wide Cornering; Clear |
| Height (in.) | 2.100 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 2.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Weight (lbs.) | 0.400 |
| Wiring Harness Included | No |
Fitment
2021-2026 Ford F-150
Installation
Manufacturer installation instructions available (PDF).
