Description

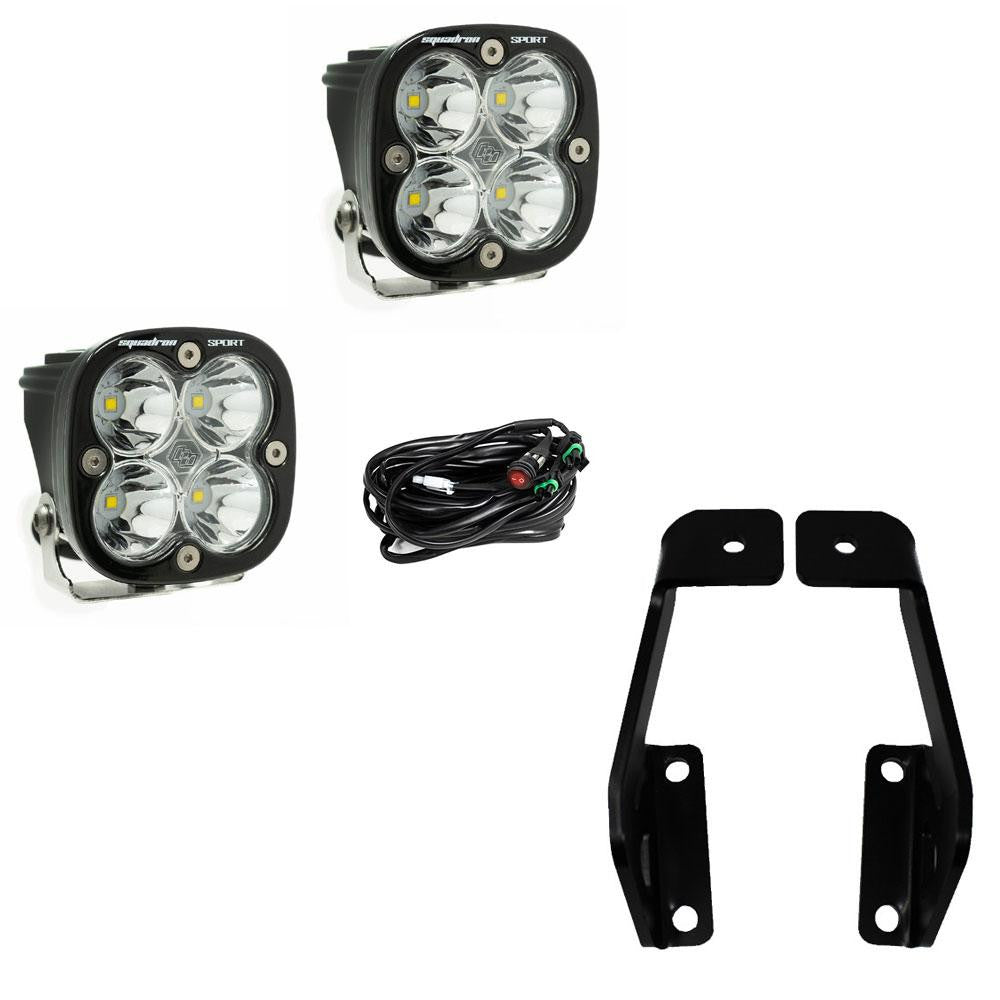

Baja Designs' F-150 (09-14) and Raptor (10-14) A-Pillar Kit is your ticket to prolonging the day! This kit gives you the option to run our Squadron or S2 Series LED lights. Installation of this kit is simple, and the design is robust to ensure there are no vibrations, even when you're ru
Key features
- Beam Pattern: Driving/Combo
- Wattage: 30.360
Specifications
| Amperage Rating (A) | 2.200 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Depth (in.) | 2.770 |
| Description | Driving/Combo; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 30.360 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
2009-2014 Ford F-150
Installation
Manufacturer installation instructions available (PDF).
