Description
The Baja Designs Squadron SAE/Squadron Pro fog pocket light kit for the 2021-2023 Ford F-150 trucks w/ daytime running lights is a premium, high-performance upgrade engineered for both on-road and off-road use. This all-inclusive LED fog light kit includes one pair of Squadron® SAE road-

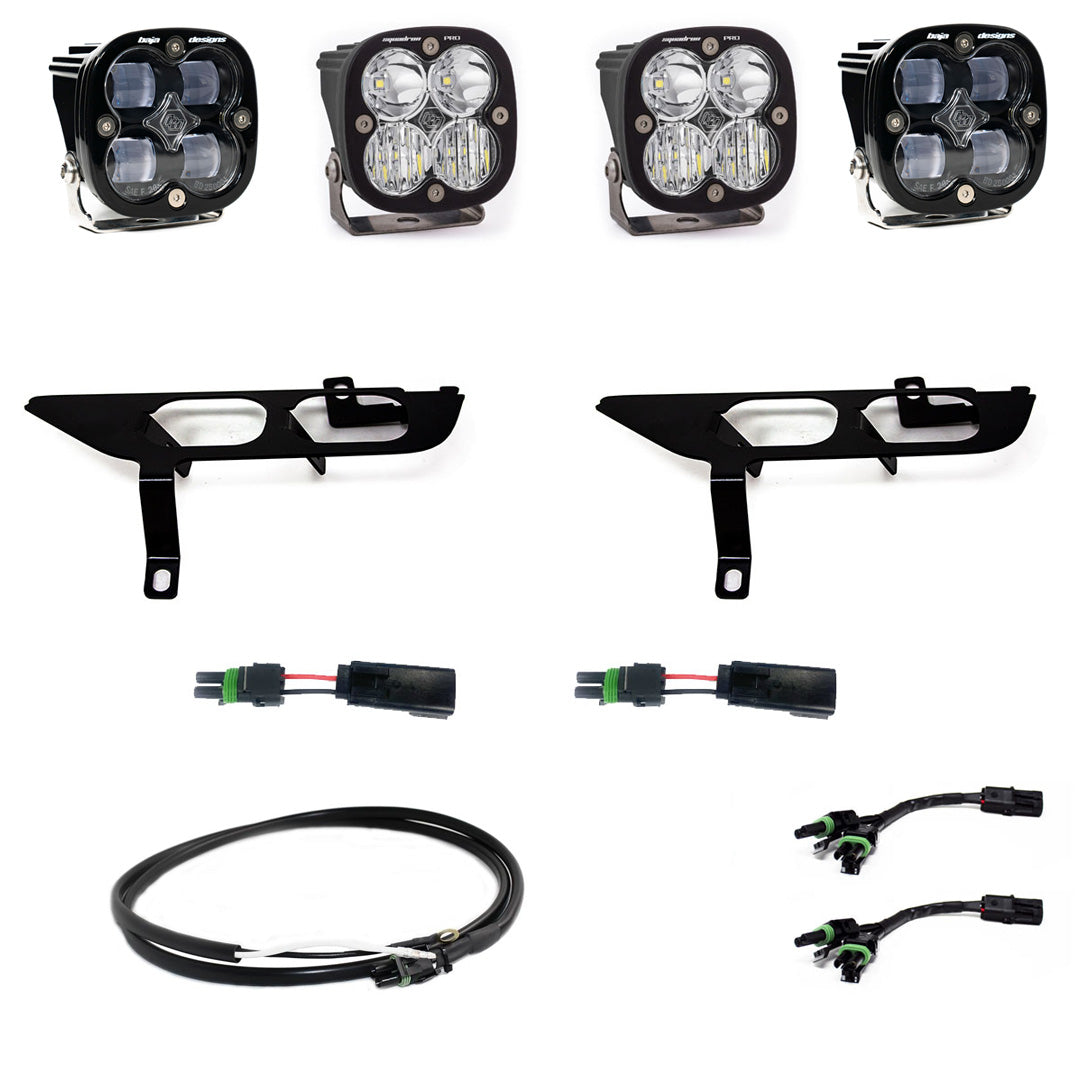

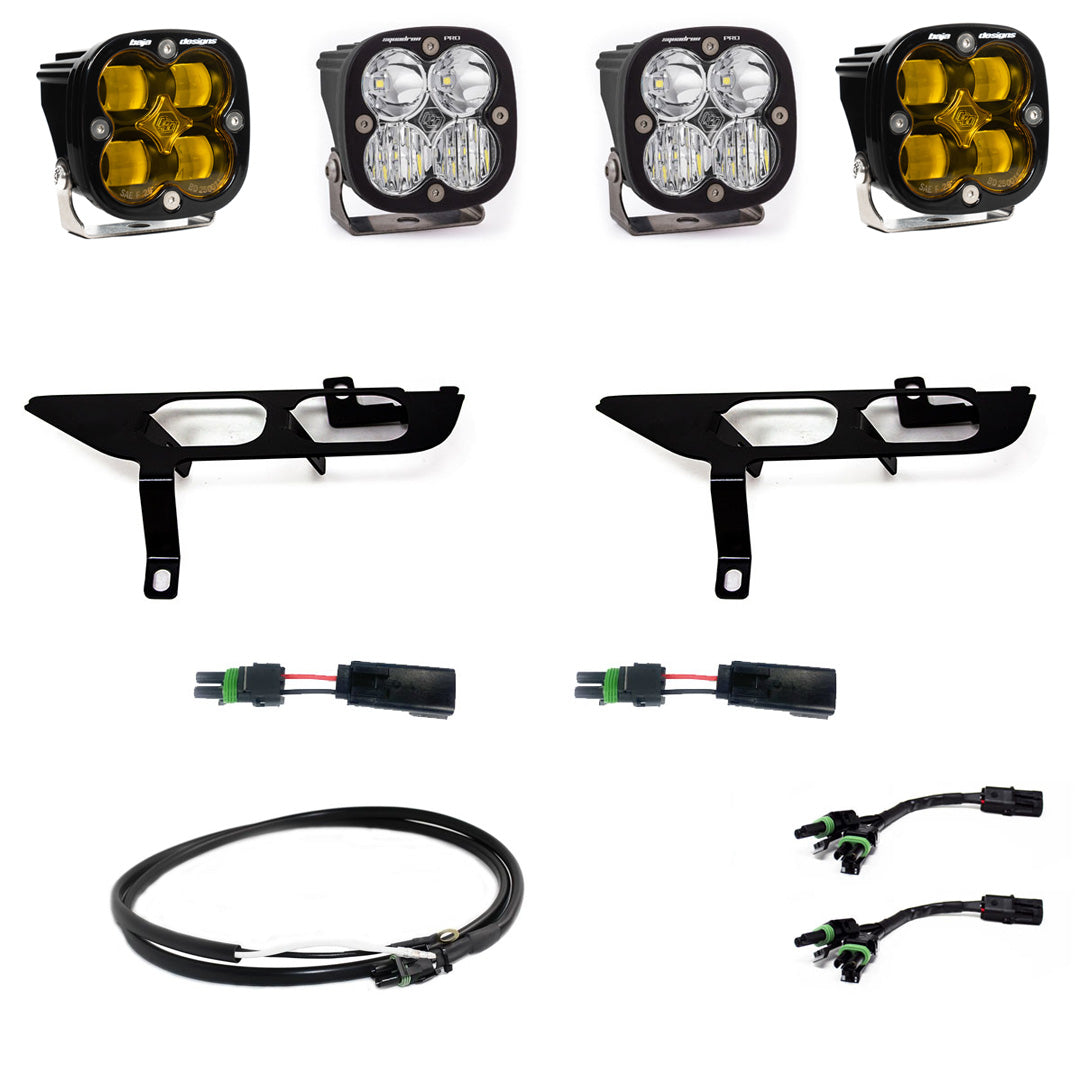

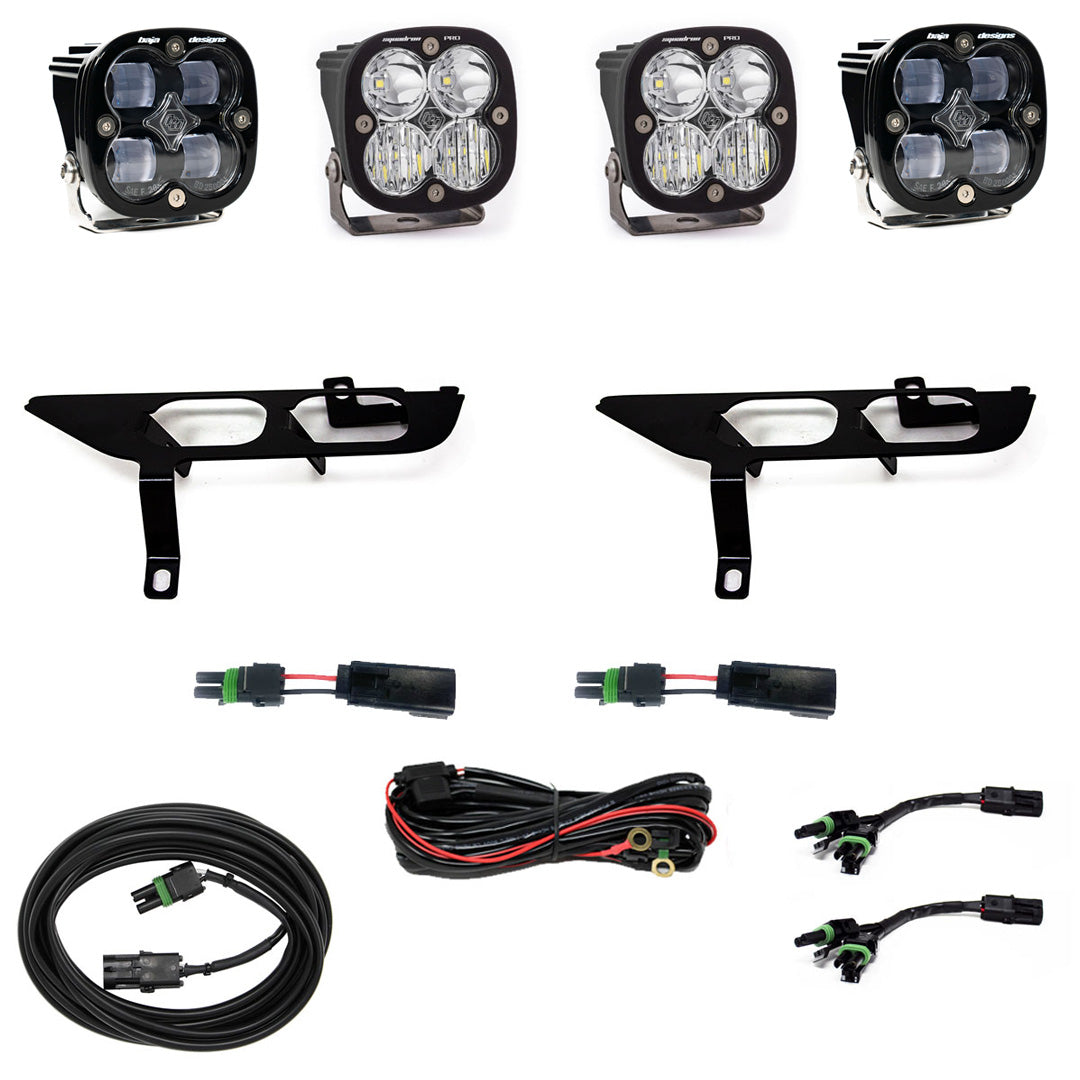

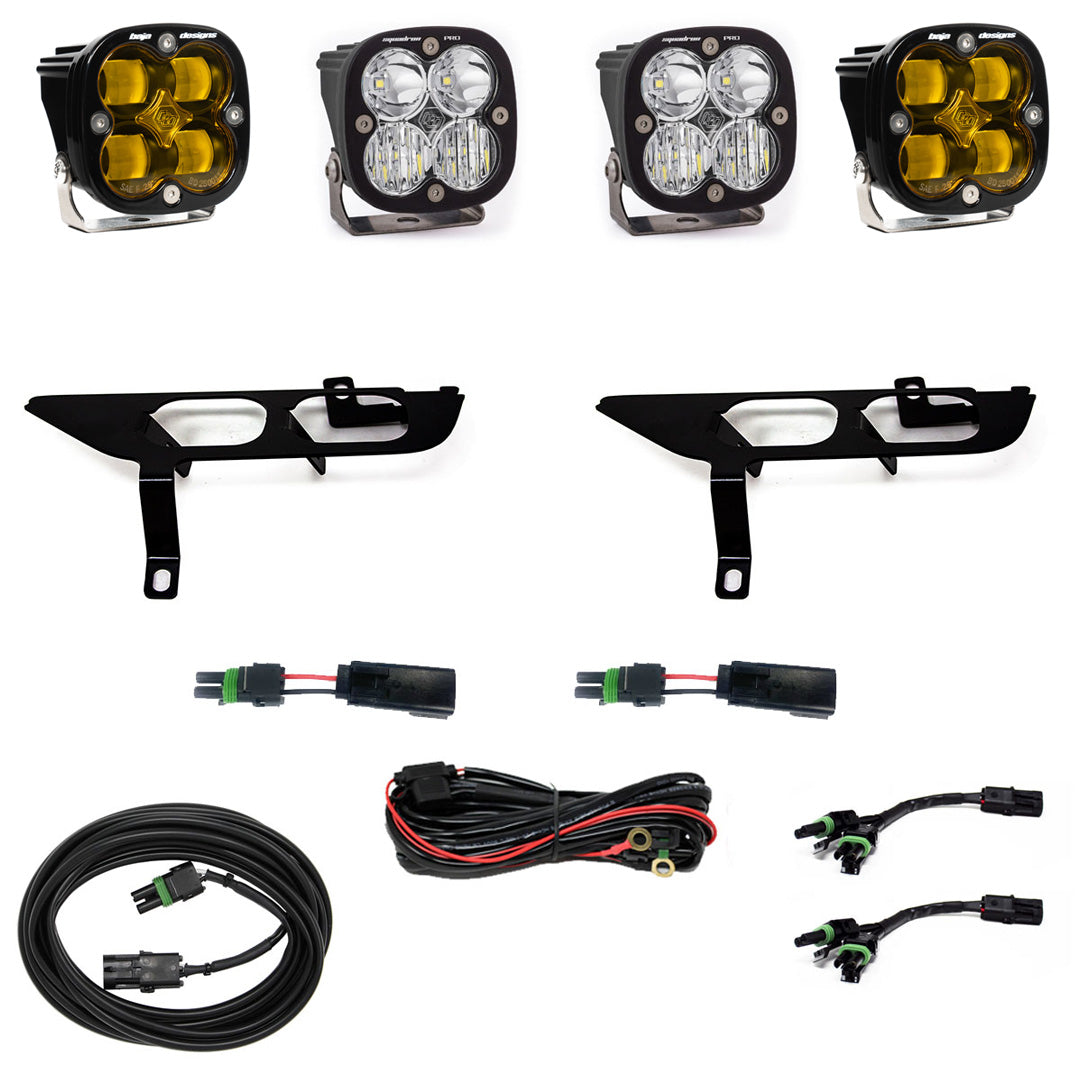

Key features
- (2x) Squadron SAE – Clear or Baja Amber
- (2x) Squadron Pro – Clear Driving Combo
- (2x) Mounting Brackets
- (2x) Adaptor Harness (600043)
- (2x) Splitter Harness (613607)
- (1x) Toggle Harness (640139)
- (1x) 55” Splitter Harness (613606)
- (2x) Anti-Backfeed Harness (600017)
Specifications
| Amperage Rating (A) | 3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Depth (in.) | 2.770 |
| Description | Driving/Combo; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 41.400 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
2021-2023 Ford F-150
Installation
Manufacturer installation instructions available (PDF).
