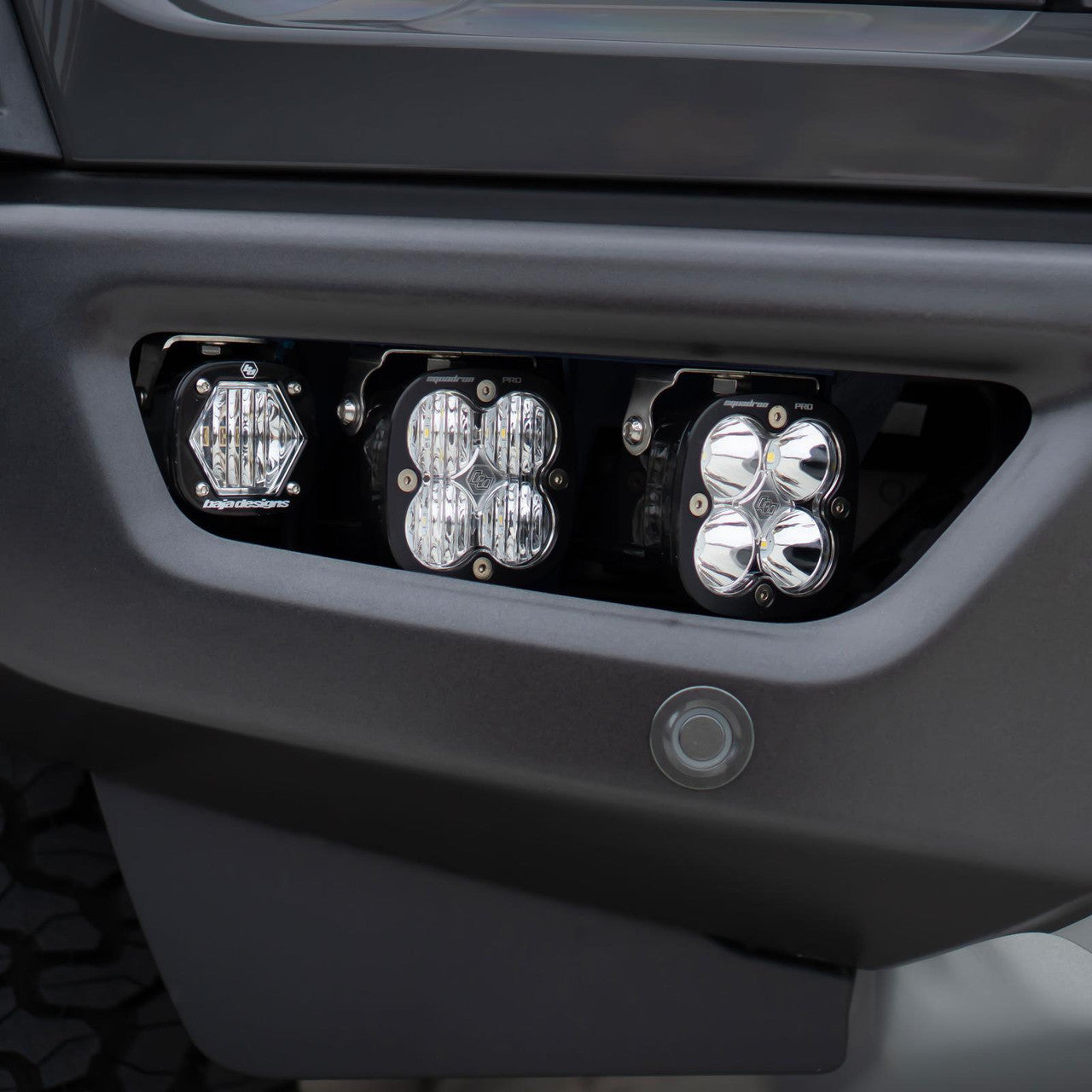

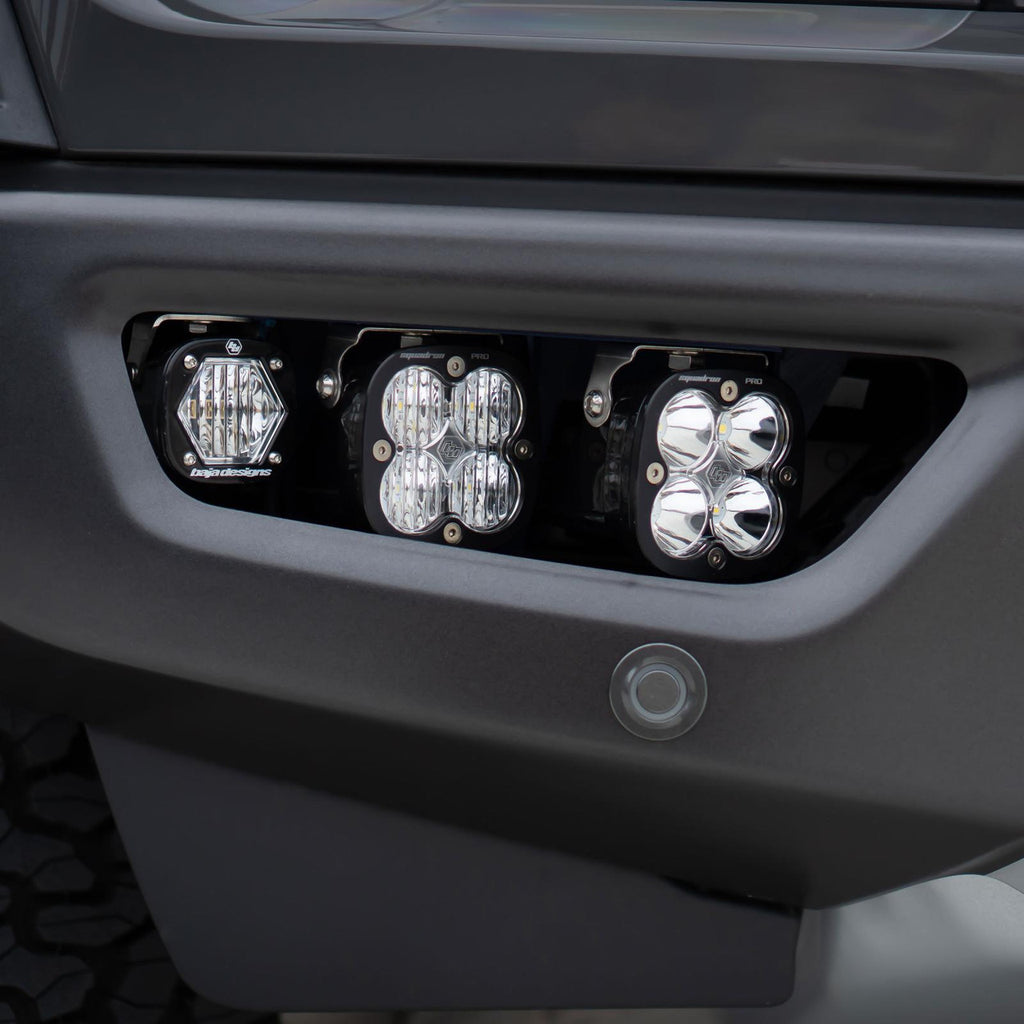

Separate your truck from the pack with the Baja Designs Ford Raptor "Pro" Fog Light Kit. This kit utilizes four Squadron Pros (4,095 lumens each), and two S1s (2,375 lumens each). This mounting kit includes two vehicle specific mounting brackets and a wiring harness, allowing you to use

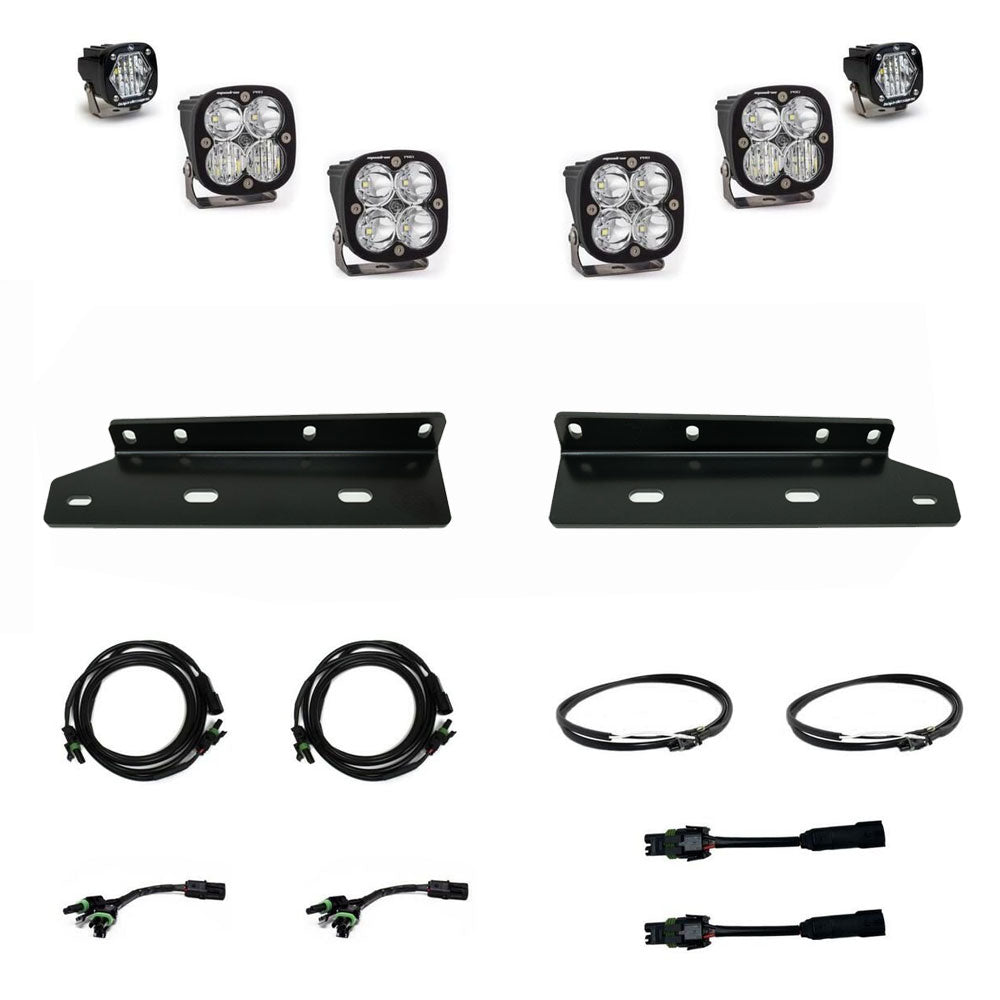

Key features
- (2x) S1 - Wide Cornering Clear
- (2x) Squadron Pro - Driving Combo Clear
- (2x) Squadron Pro - Spot Clear
- (2x) Mounting Brackets
- (2x) Adaptor Harness (60-0009)
- (2x) Add-a-light Splitter (61-3607)
- (2x) Harness, Splitter 55" (61-3606)
- (2x) Upfitter Wiring Harness (64-0093)
Specifications
| Amperage Rating (A) | 1.420 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Depth (in.) | 2.100 |
| Description | Wide Cornering; Clear |
| Height (in.) | 2.100 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 2.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Weight (lbs.) | 0.400 |
| Wiring Harness Included | No |
Fitment
2021-2026 Ford F-150
Installation
Manufacturer installation instructions available (PDF).
