Description

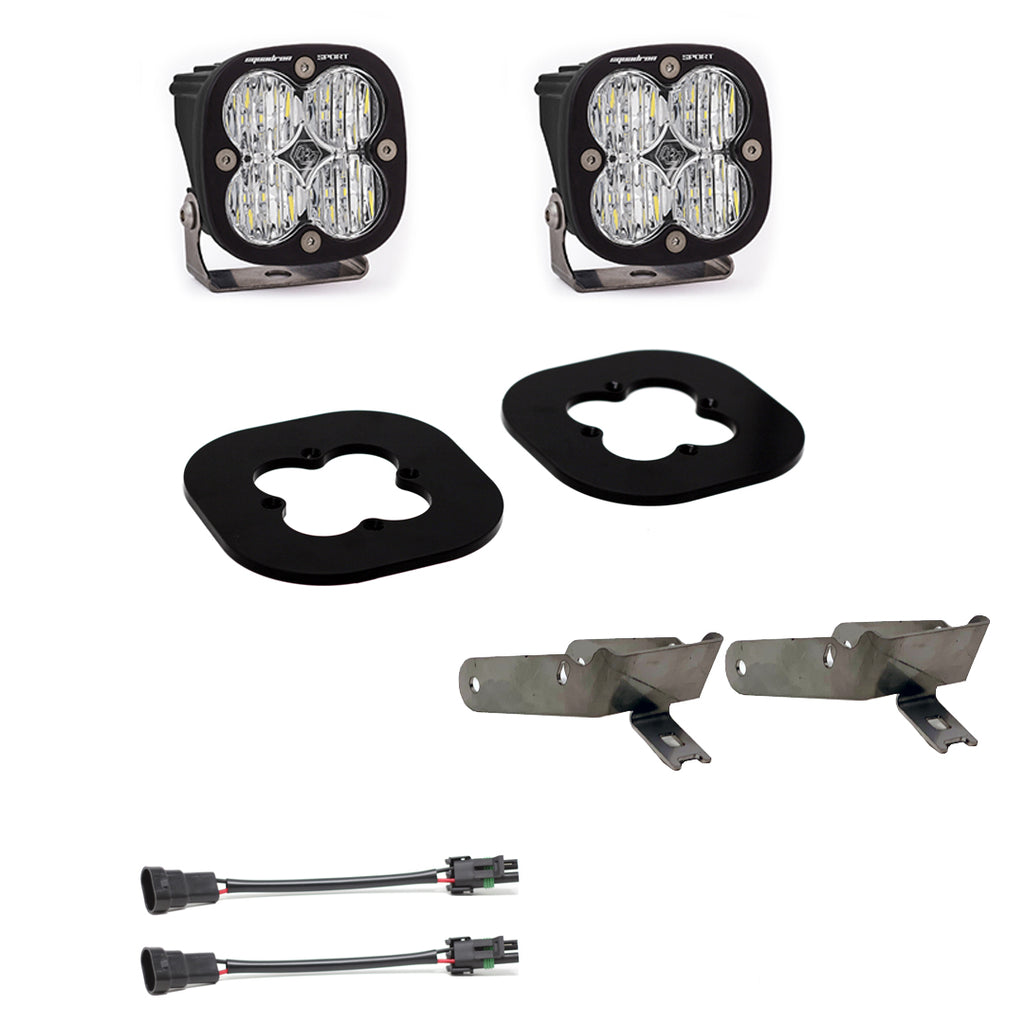

The Ford Super Duty Fog Pocket Kit allows you to mount 2 Squadron Series auxiliary lights in the factory location. This Plug and Play kit includes two Squadron Pro Wide Cornering lights, two vehicle specific mounting brackets and a wiring adapter, allowing you to use your factory switch
Key features
- Beam Pattern: Wide Cornering
- Wattage: 41.400
Specifications
| Amperage Rating (A) | 3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Depth (in.) | 2.770 |
| Description | Wide Cornering; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 41.400 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
2011-2016 Ford F-250/350 Super Duty
Installation
Manufacturer installation instructions available (PDF).
