Description

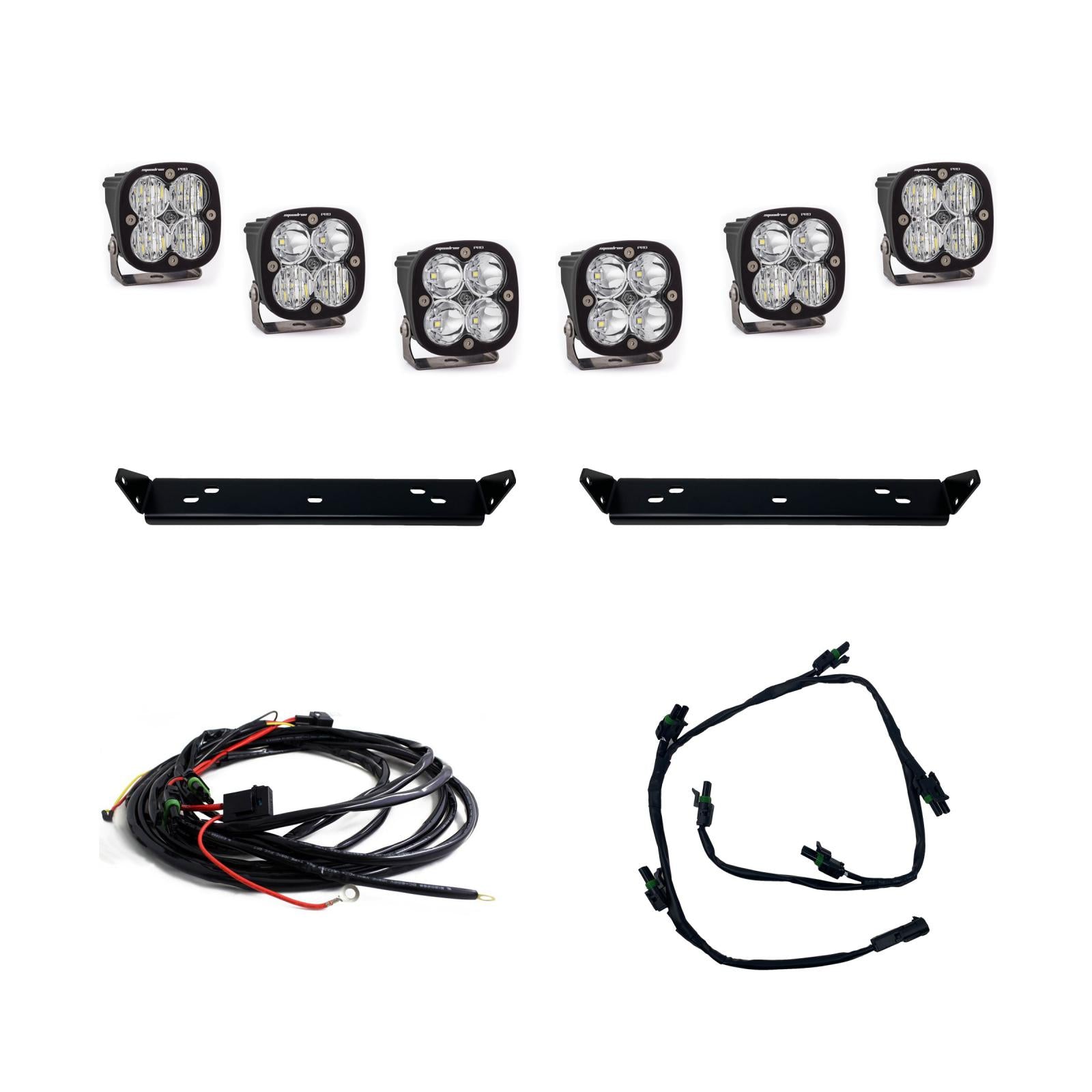

The Baja Designs Squadron Pro behind-the grille kit for the 2021-on Ford Raptor is designed with both functionality and visual appeal in mind. This kit offers six Squadron Pro off-road LED lights in multiple lens configurations, mounting brackets, and hardware. The Squadron Pro offers 4,
Key features
- (2x) Squadron Pro - Wide Cornering Clear
- (2x) Squadron Pro - Driving Combo Clear
- (2x) Squadron Pro - Spot Clear
- (2x) Behind-the-Grille mounting brackets
- (1x) Wiring Harness
- (1x) Hi-Beam Wiring Harness
- All Necessary Mounting Hardware
- 4,095 raw lumens
Specifications
| Amperage Rating (A) | 3 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Depth (in.) | 2.770 |
| Description | Driving/Combo; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 41.400 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
2021-2026 Ford F-150 Raptor
Installation
Manufacturer installation instructions available (PDF).
