Description

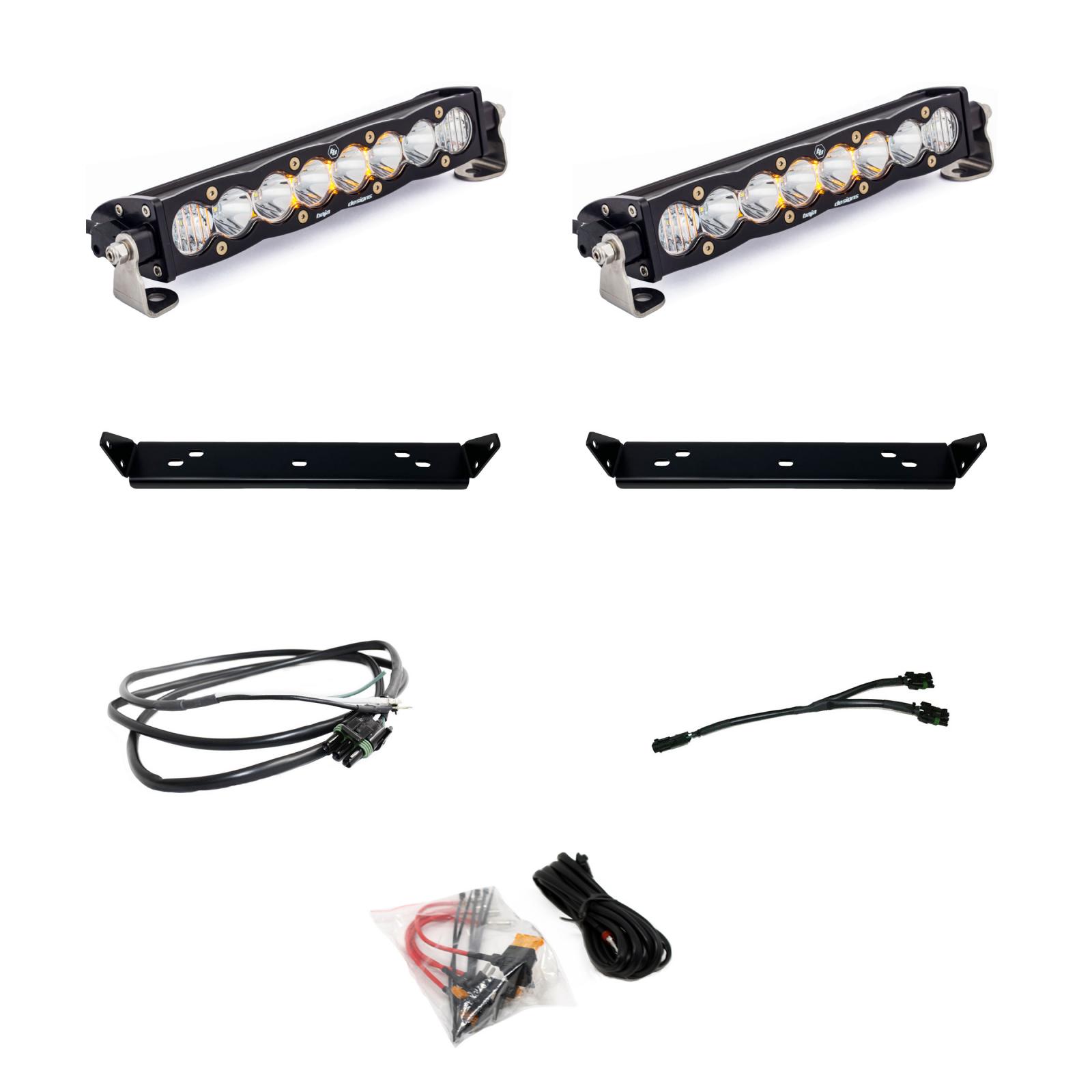

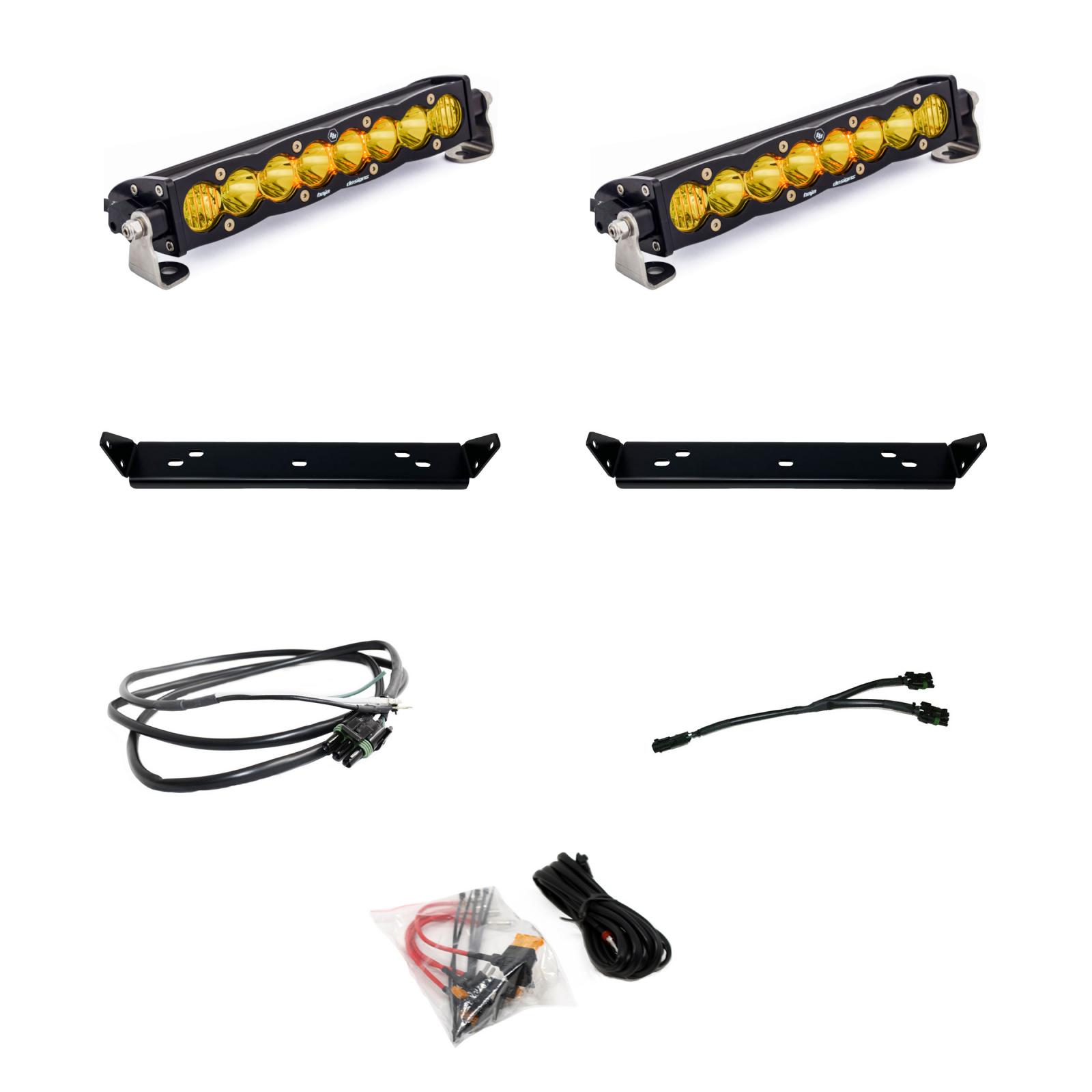

The Baja Designs S8 Behind the Grille kit for the 2021-on Ford Raptor are designed with both functionality and visual appeal in mind. This kit offers two S8 10-inch LED light bars in the choice of clear or baja amber lens colors, mounting brackets, wiring harness and hardware. The S8 10-
Key features
- (2x) S8 10-inch Light Bar - Driving Combo Clear or Baja Amber
- (2x) Behind the Grille Mounting Brackets
- (1x) Splitter Wiring Harness
- (1x) Upfitter Wiring Harness
- (1x) S8 Backlit Harness
- All Necessary Mounting Hardware
- 6,324 raw lumens
- 57.96W/4.2A
Specifications
| Amperage Rating (A) | 4.200 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 6324 |
| Depth (in.) | 3 |
| Description | Driving/Combo; Clear |
| Height (in.) | 1.600 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 10 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 8 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Patent No. | D780,964 |
| Product Type | S8 10 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 57.960 |
| Weight (lbs.) | 2.400 |
| Wiring Harness Included | No |
Fitment
2021-2026 Ford F-150 Raptor
Installation
Manufacturer installation instructions available (PDF).
