Description

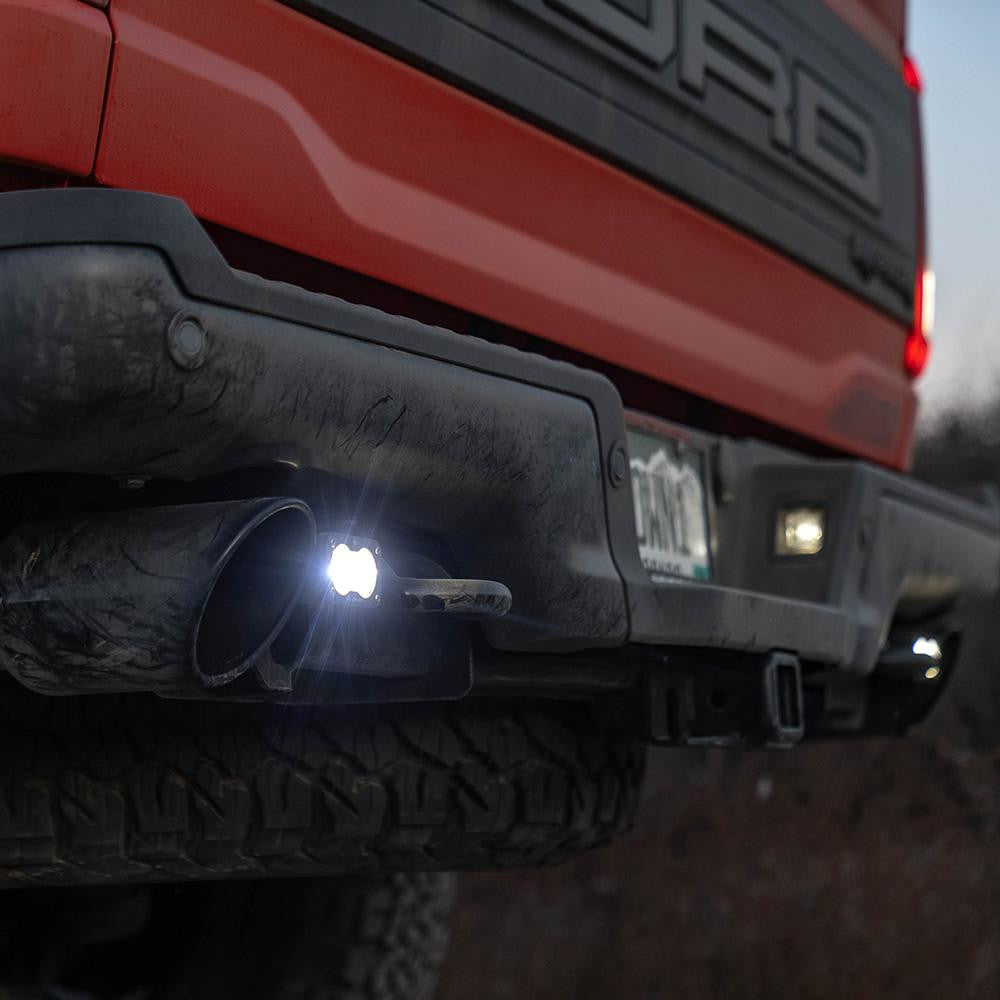

The Baja Designs raptor reverse light kit for the 2017-2026 Ford F-150 Raptor/R/37 allows enthusiasts to illuminate the area behind their truck, adding safety. This F-150 Raptor light kit utilizes two S2 Sport LED lights providing 1,581 raw lumens at 0.9 amps each, mounted to the undersi
Key features
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Amperage Rating (A) | 0.900 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 1581 |
| Depth (in.) | 1.680 |
| Description | Wide Cornering; Clear |
| Height (in.) | 1.760 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 2.930 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Sport LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 12.420 |
| Weight (lbs.) | 0.500 |
| Wiring Harness Included | Yes |
Fitment
2017-2026 Ford F-150 Raptor
Installation
Manufacturer installation instructions available (PDF).
