Description

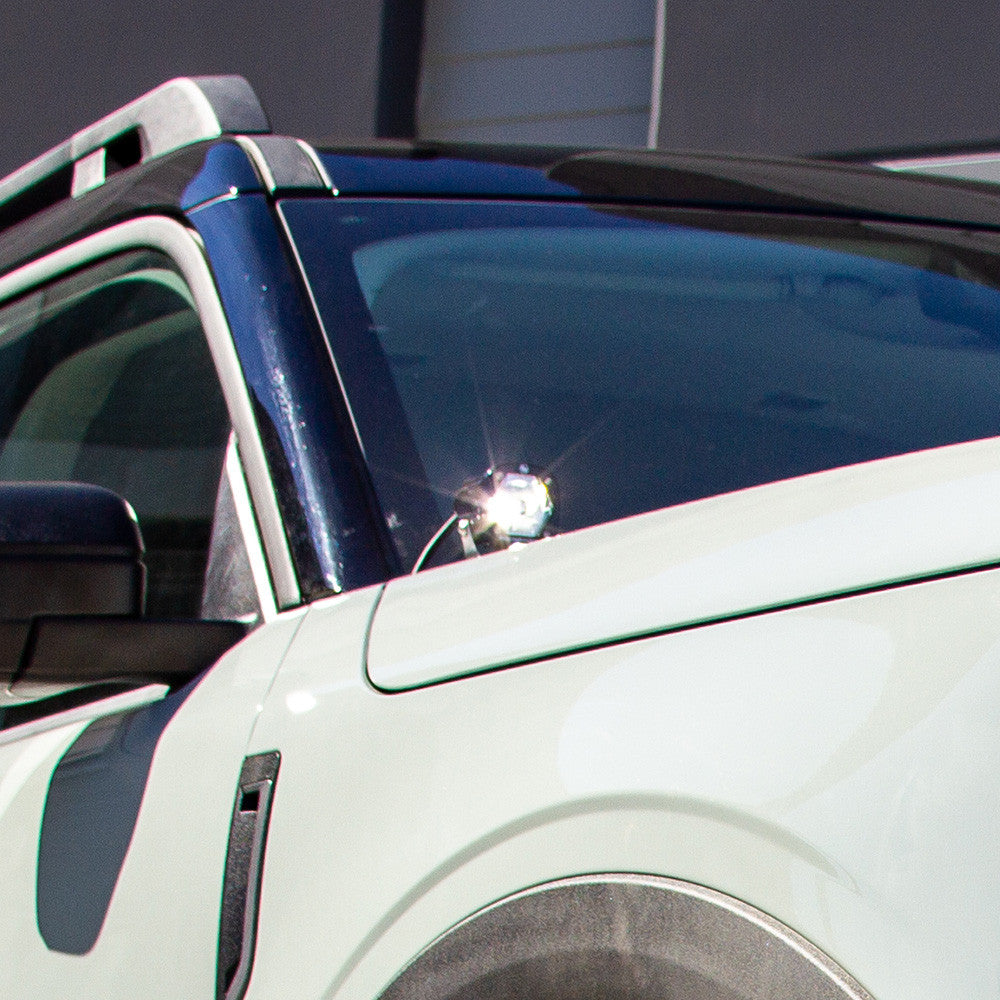

Upgrade your Ford Bronco Sport with the Baja Designs S1 A-Pillar Kit, a perfect addition for enhanced safety and trail illumination on your adventures. Specifically crafted for the Bronco Sport, this kit includes a pair of S1 LED auxiliary lights, each boasting 2,320 raw lumens at 20w. T
Key features
- (2x) S1 Spot
- (2x) A-Pillar Mounting Brackets
- (2x) S1 Wide Cornering Lens Kit
- (1x) Wire Harness 640117
- All Necessary Mounting Hardware
Specifications
| Amperage Rating (A) | 1.420 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Depth (in.) | 2.100 |
| Description | Spot; Clear |
| Height (in.) | 2.100 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 2.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Weight (lbs.) | 0.400 |
| Wiring Harness Included | No |
Fitment
2021-2026 Ford Bronco Sport
Installation
Manufacturer installation instructions available (PDF).
