Description

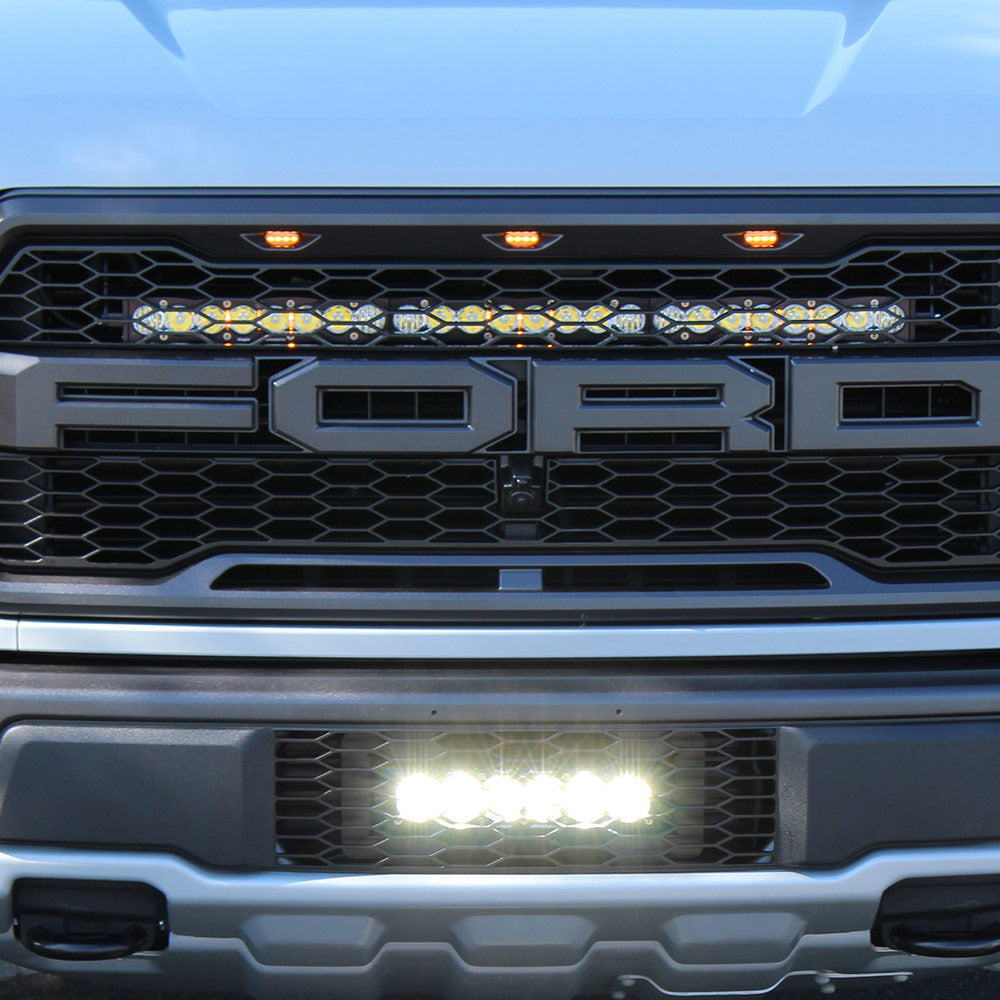

The Baja Designs 10-inch OnX6 plus lower grille kit for the 2017-2020 Ford F-150 Raptor has been designed with both functionality and visual appeal in mind. The kit is a quick and easy installed with minimal modifications required. The OnX6+ 10-inch LED light bar uses our high speed spot
Key features
- (1x) OnX6+ 10-inch Light Bar Driving Combo Clear
- (2x) Mounting Brackets
- (1x) Upfitter Wiring Harness (640094)
- All necessary mounting hardware
Specifications
| Amperage Rating (A) | 7.700 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Depth (in.) | 4.290 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.690 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 10 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Weight (lbs.) | 4.250 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
2017-2020 Ford F-150
Installation
Manufacturer installation instructions available (PDF).
