Description
The Baja Designs LP4 A-Pillar kit for the 2021-2025 Ford F-150 Raptor/R/37 models is a turn-key solution for any enthusiasts wanting performance lighting on their trucks. This kit is perfect for anyone who is burning the midnight oil off-roading, traveling, or working. With a total of 8,
Key features
- Elevated Illumination – Their position offers a broader view of terrain, helping to see further into turns and curves.

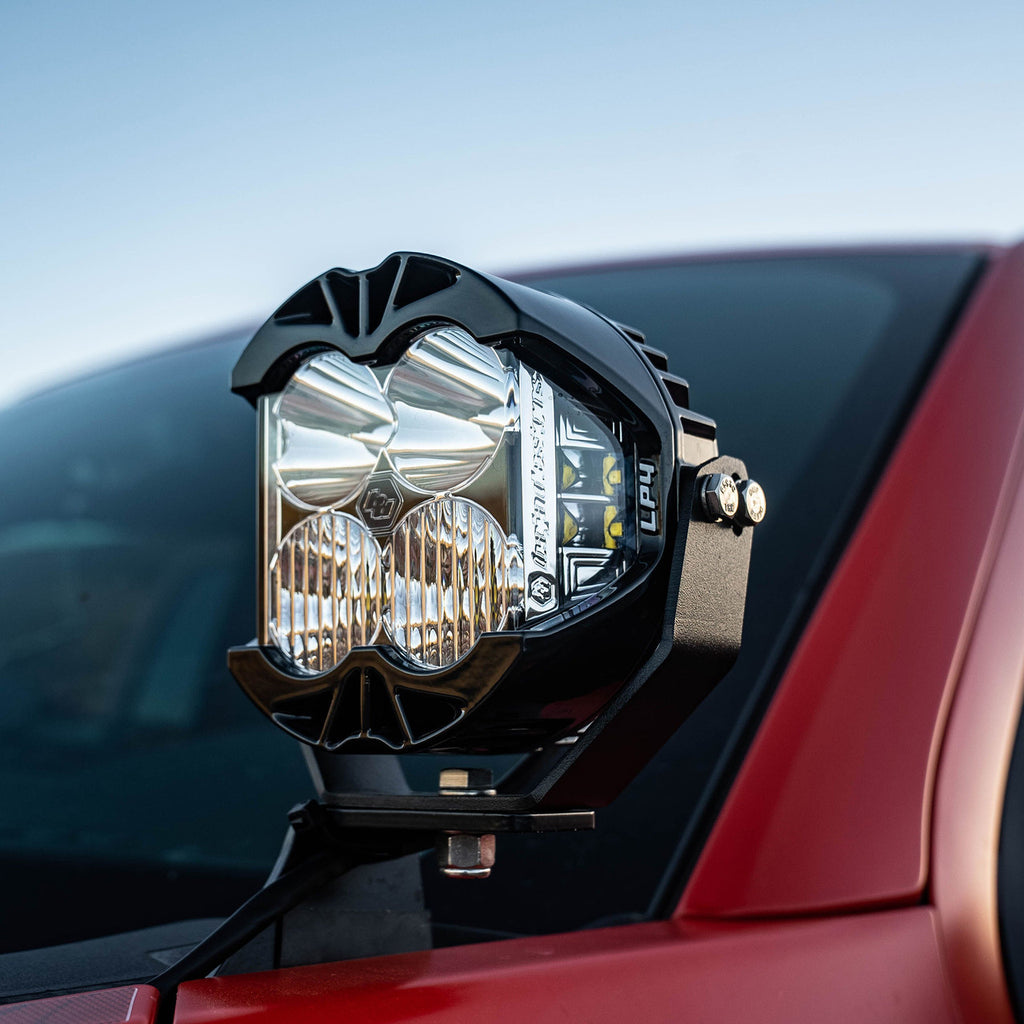

- Directional Flexibility – Our A-Pillar lights offer adjustability so you can aim them exactly where you need light.
- Auxiliary Functionality – A-Pillar lighting is ideal for: spotlights, flood lighting, scene lighting at a job site or campsite.

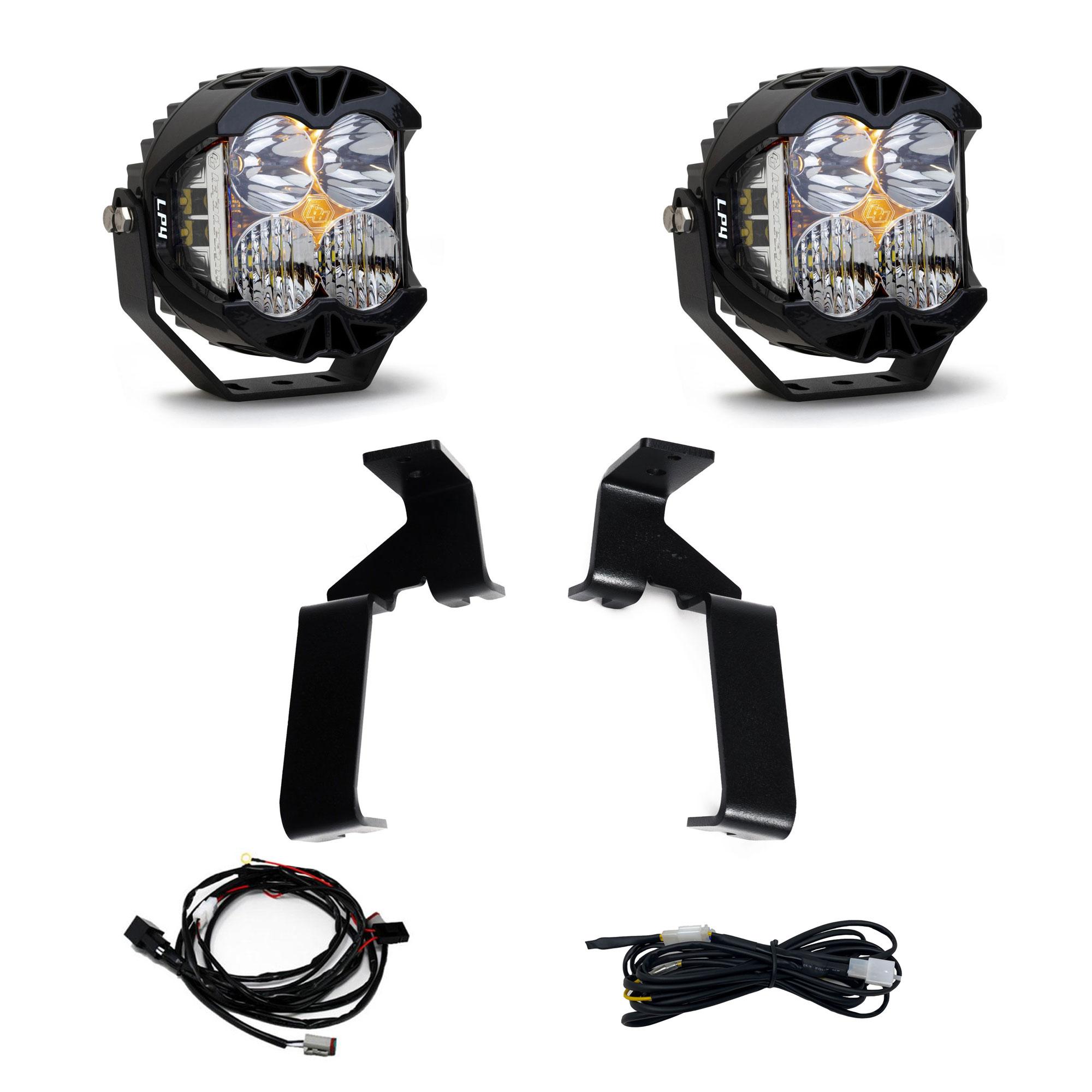

- (2x) LP4 Pro, Driving Combo, Clear
- (2x) A-Pillar Mounting Brackets
- (1x) Trigger Switch Harness (640180)
- All Necessary Mounting Hardware
- Lumens: 8,857
Specifications
| Amperage Rating (A) | 5.500 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Depth (in.) | 3.200 |
| Description | Driving/Combo; Clear |
| Height (in.) | 5.100 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Length (in.) | 5.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Weight (lbs.) | 2.800 |
| Wiring Harness Included | No |
Fitment
2021-2026 Ford F-150 Raptor
Installation
Manufacturer installation instructions available (PDF).
