Description

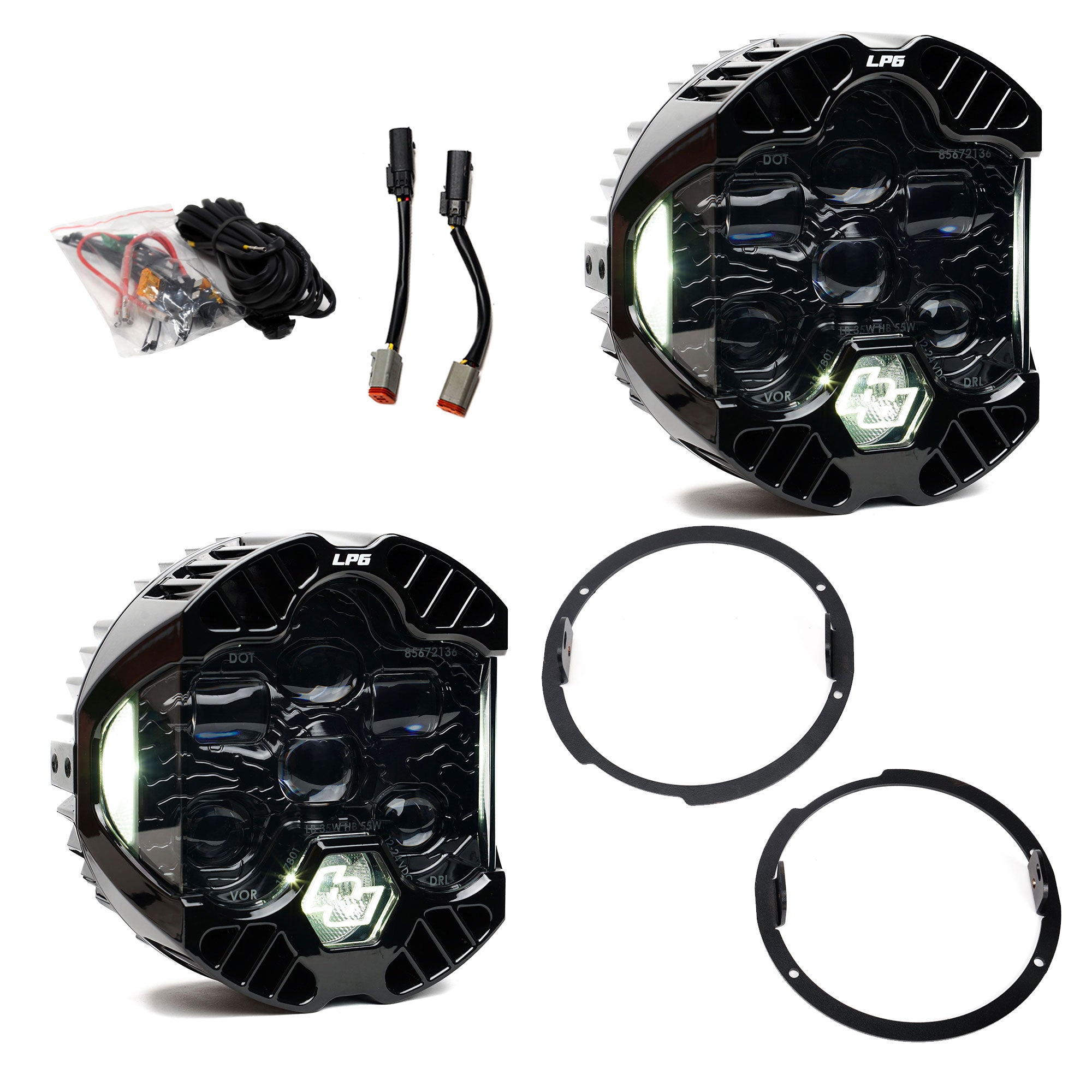

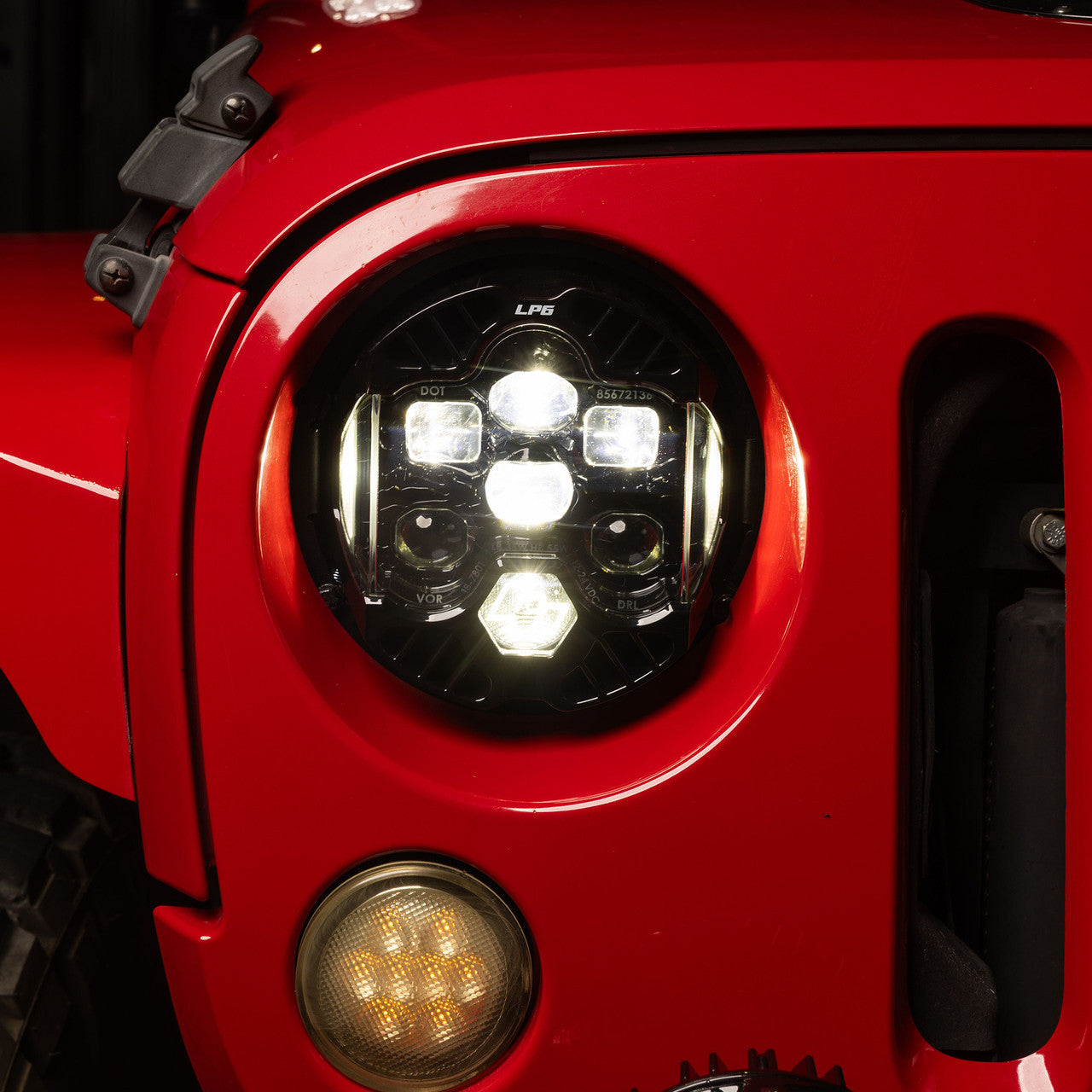

Your Jeep JK deserves headlights as capable as the vehicle itself. The Baja Designs DOT LP6 is our first-ever road-legal headlight kit designed to fit seamless in the Jeep Wrangler JK. Inspired by the same LP6 trusted in the toughest off-road races, it’s been re-engineered utilizing proj
Key features
- Low and high beam functionality

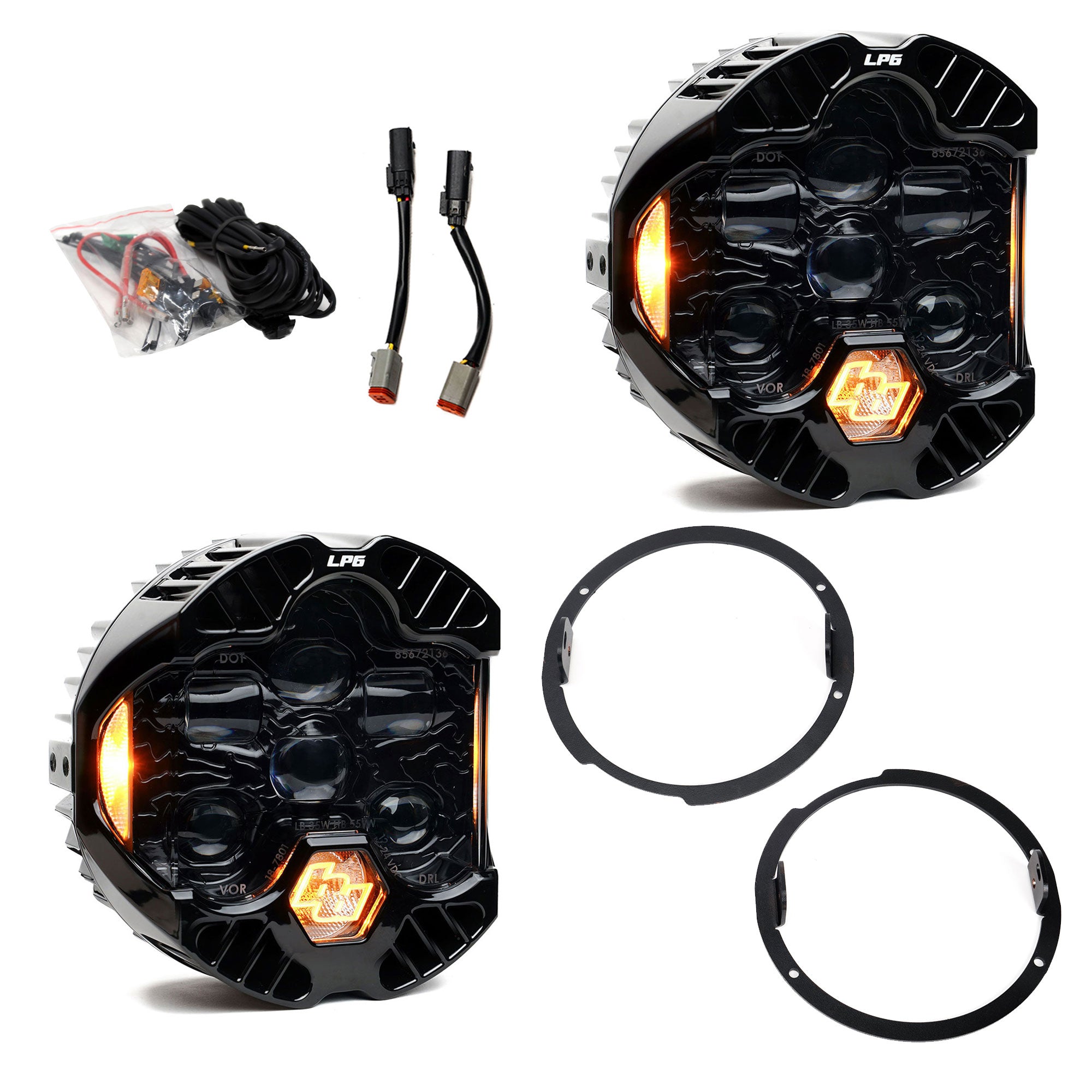

- Daytime running lights for daytime safety available in amber or white
- Jeep Wrangler JK specific mounting brackets included
- Low beam 3,480 raw lumens | 42,568.7 candela
- High beam 5,280 raw lumens | 62,611.5 candela
- High beam 40w / 2.8A
- Low beam 26w / 1.8A
- DRL: 5w / 0.4A
Specifications
| Amperage Rating (A) | 1.8A (L) 2.8A (H) |
|---|---|
| Beam Pattern | Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights) |
| Brightness (Lumens) | 3,480 (Low) 5,280 (High) |
| Depth (in.) | 3.2 |
| Description | DRL Color: Clear; DRL: 5W; Candela: 42,568 (Low) 62,611 (High) |
| Height (in.) | 6.5 |
| Length (in.) | 6.5 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Voltage | 10.5 to 32V |
| Wattage (W) | Single Lamp at 13.8V; 26W (L) 40W (H) |
| Wiring Harness Included | Yes; Brackets Included |
Fitment
2007-2018 Jeep Wrangler JK
Installation
Manufacturer installation instructions available (PDF).
