Description

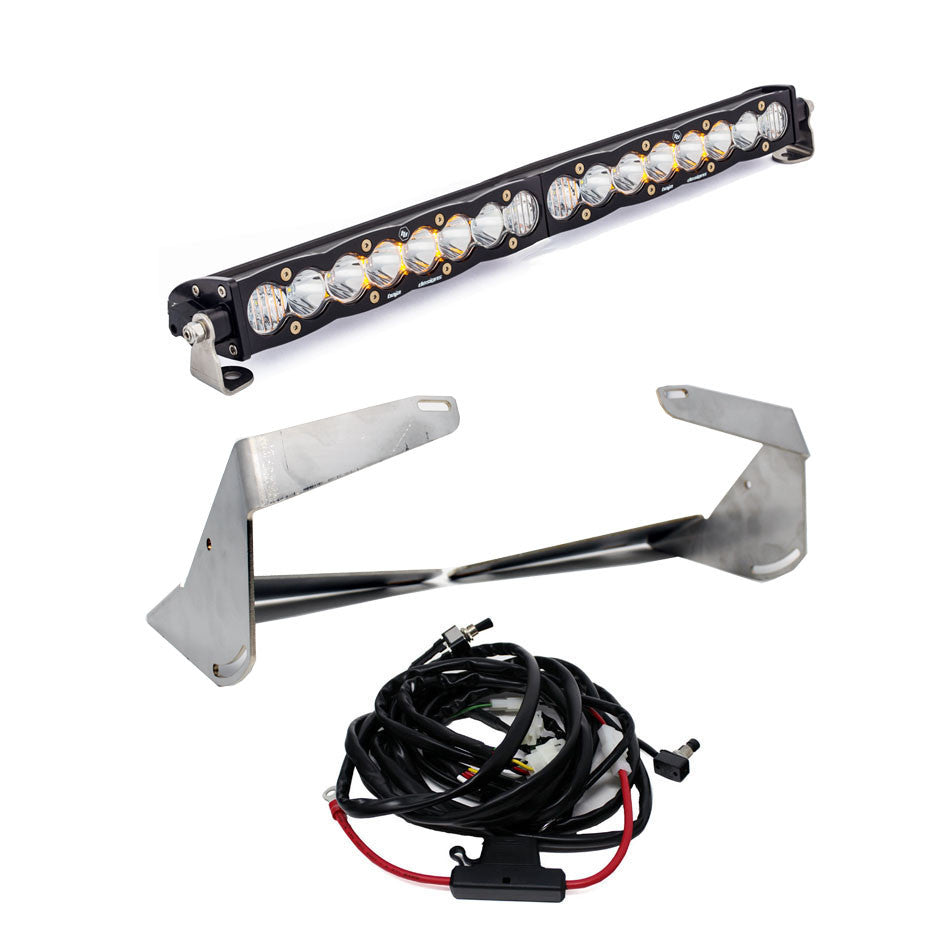

Looking for the ultimate lighting kit for your HD Ram? Look no further! The 20 inch S8 kit with backlighting is the kit for you, it includes everything you need, the light, wiring harness, and mounts. This kit is mounted in the lower grille, and mounting the light doesn't require any dri
Key features
- Beam Pattern: Driving/Combo
- Wattage: 180
Specifications
| Amperage Rating (A) | 12.0 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 19,050 |
| Depth (in.) | 3 |
| Description | Driving/Combo; Clear |
| Height (in.) | 1.6 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 30 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 24 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Patent No. | D780,964 |
| Product Type | S8 30 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 180 |
| Weight (lbs.) | 6.5 |
| Wiring Harness Included | No |
Fitment
2019-2026 RAM 2500/3500
Installation
Manufacturer installation instructions available (PDF).
