Description

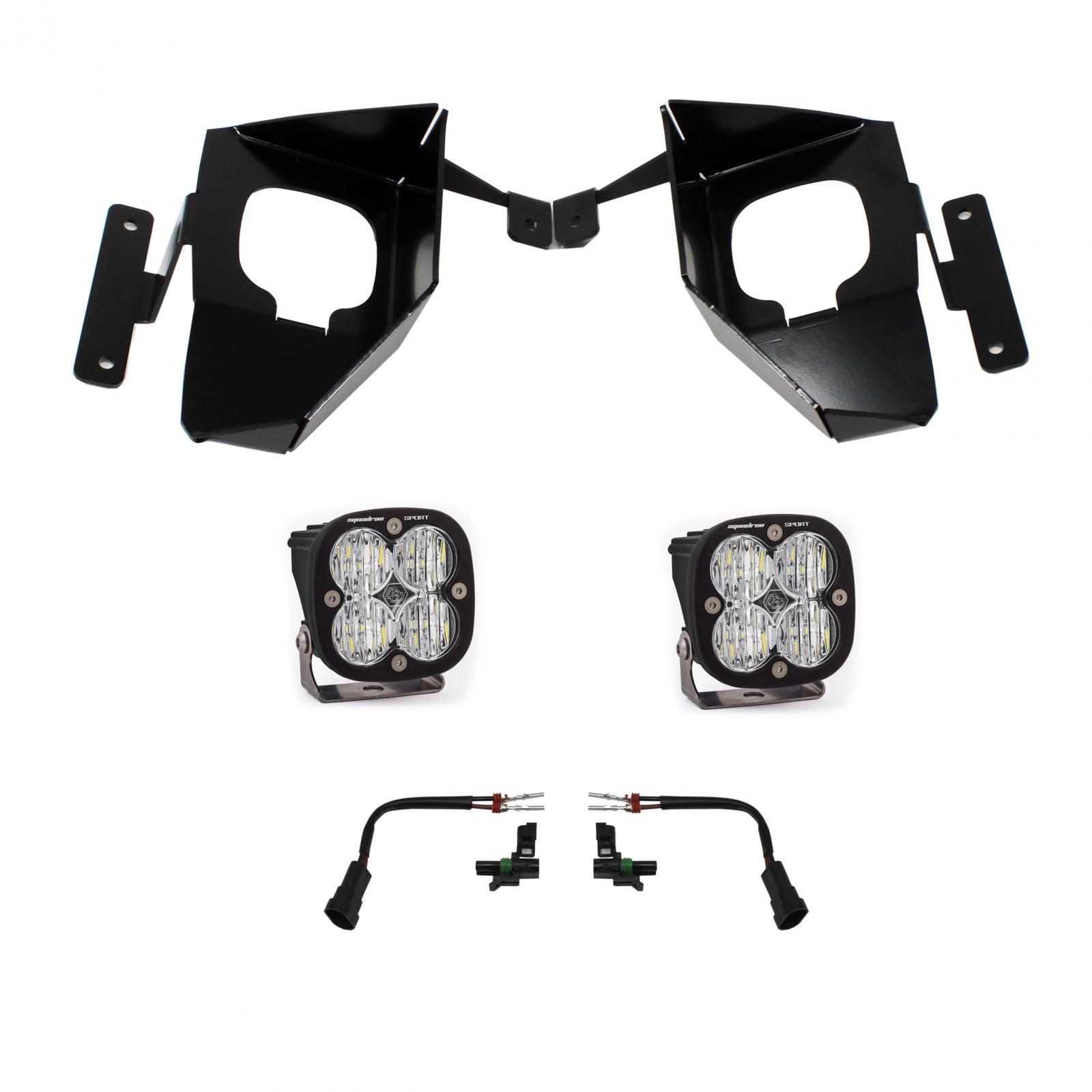

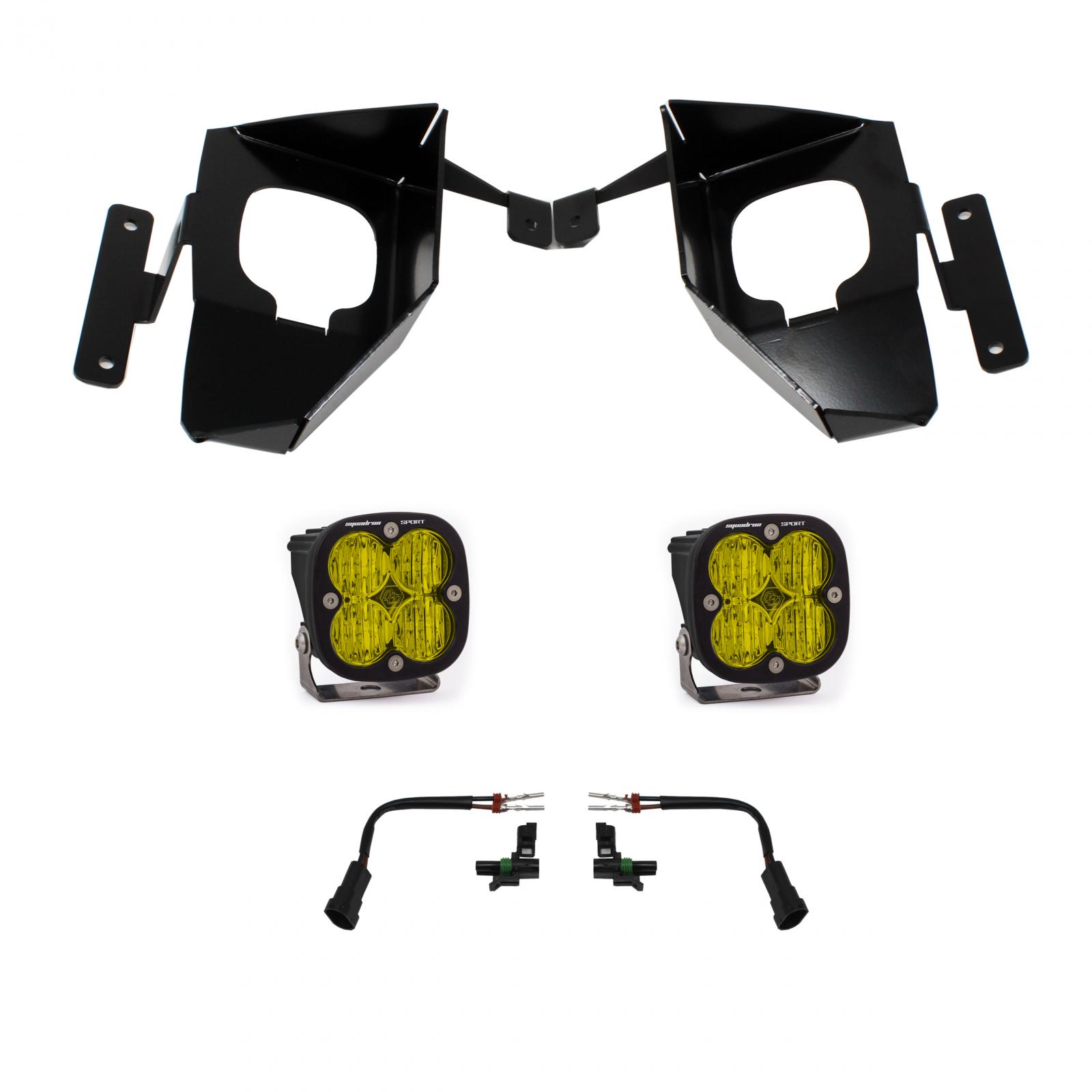

Our 16-18 Fog Pocket kit for the Chevy Silverado provides a factory look and fit with lighting that will outperform the factory setup. Our Sport Version packs 6,300 lumens! This setup comes with the required wiring to attach directly to the factory fog light switch for an easy, plug and
Key features
- Beam Pattern: Wide Cornering
- Wattage: 30.360
Specifications
| Amperage Rating (A) | 2.200 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Depth (in.) | 2.770 |
| Description | Wide Cornering; Clear |
| Height (in.) | 3.070 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 3.070 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 30.360 |
| Weight (lbs.) | 0.750 |
| Wiring Harness Included | No |
Fitment
2016-2018 Chevrolet Silverado 1500
Installation
Manufacturer installation instructions available (PDF).
