Description
The Baja Designs dual S1 Fog Pocket kit for the GMC Sierra 2500/3500 is the perfect mix of high-quality on and off-road performance. Available in Clear or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side, offering 2,320 raw lumens per light at o

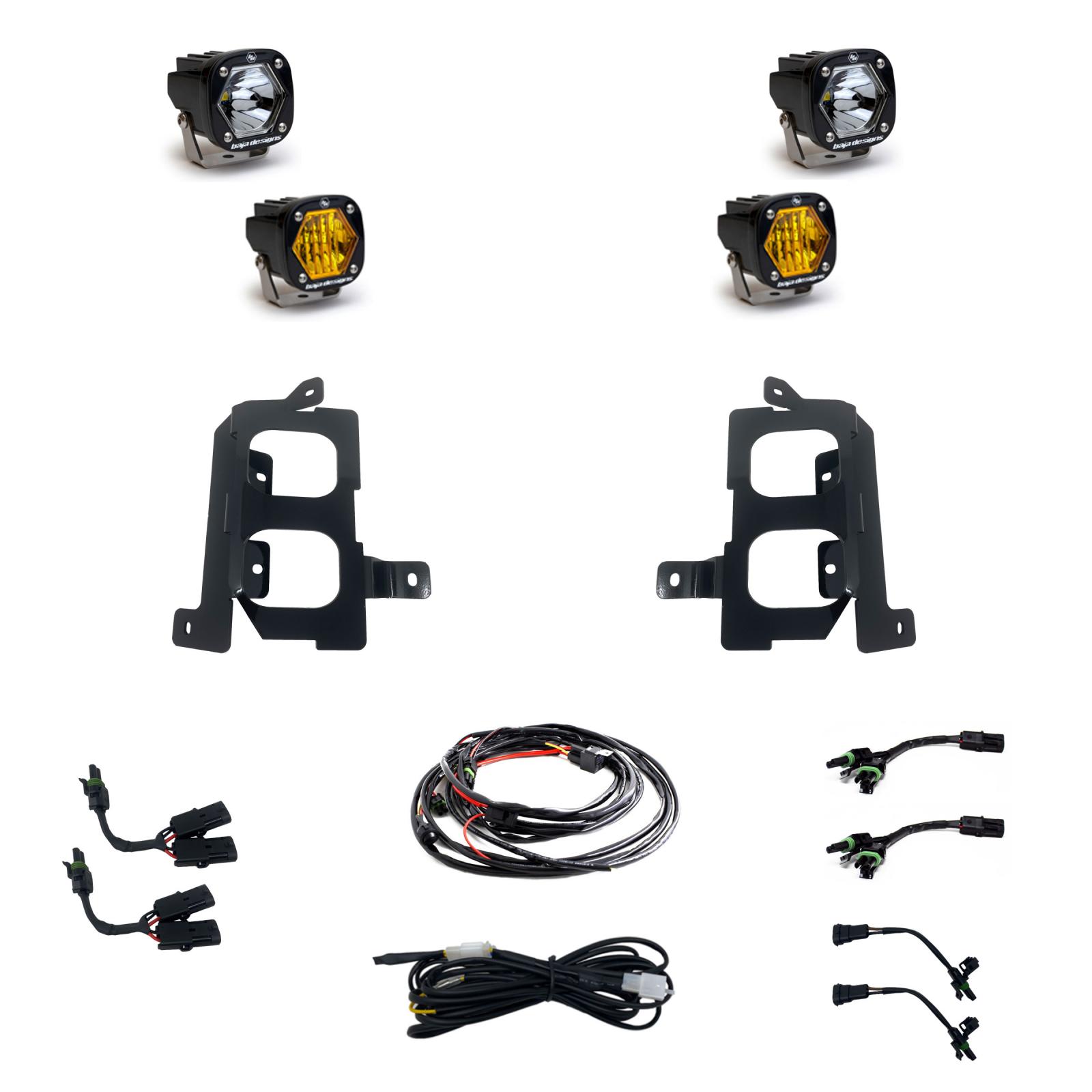

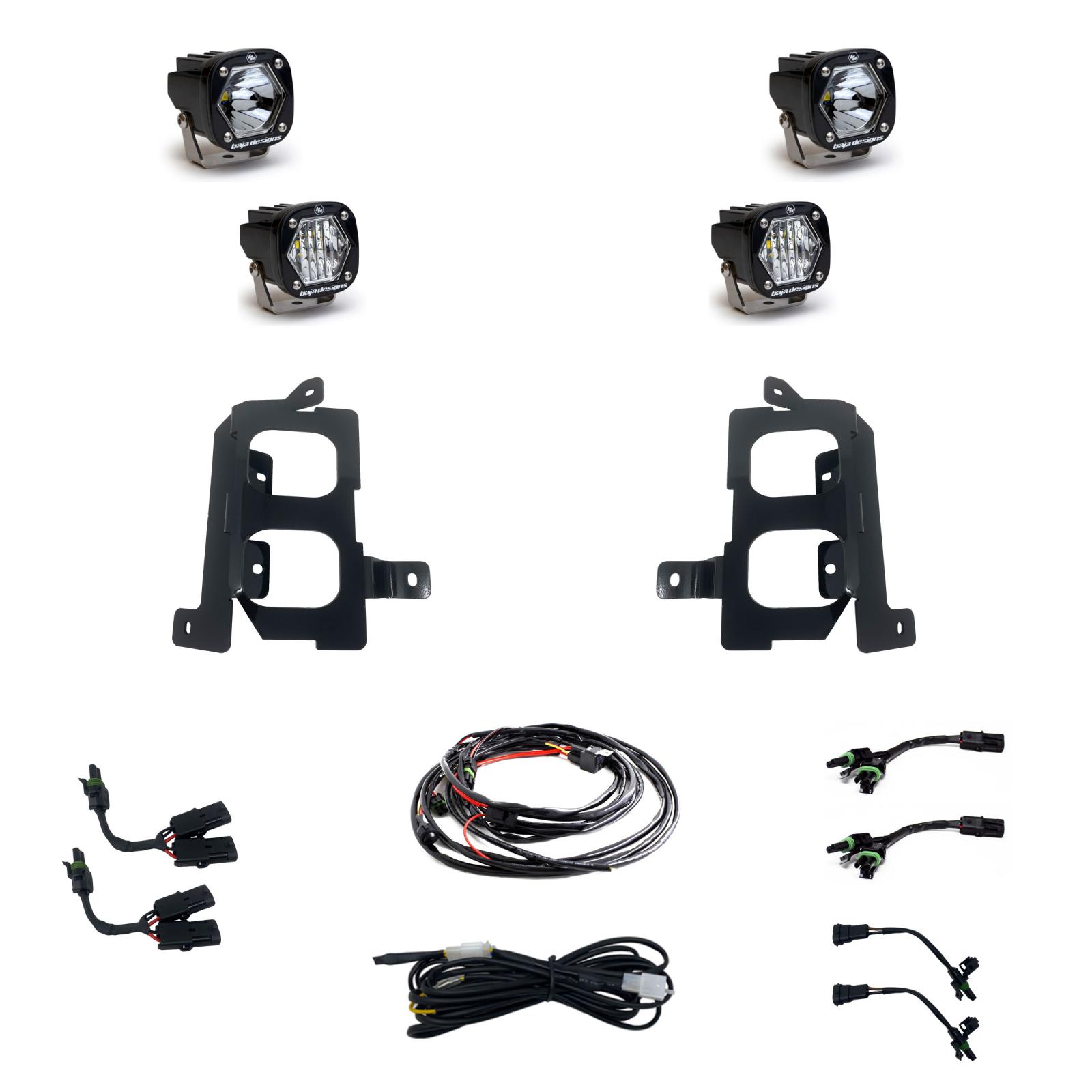

Key features
- (2x) S1 Spot(Clear)
- (2X) S1 Wide Cornering(Clear or Amber)
- (2x) Mounting Brackets
- (1x) Wiring Harness 640117
- (1x) Trigger Switch Harness 640180
- (2x) Splitter Harness
- All necessary mounting hardware
- Lumens: 2,320
Specifications
| Amperage Rating (A) | 1.420 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Depth (in.) | 2.100 |
| Description | Spot; Clear |
| Height (in.) | 2.100 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 2.100 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Weight (lbs.) | 0.400 |
| Wiring Harness Included | No |
Fitment
2020-2023 GMC Sierra 2500HD/3500HD
Installation
Manufacturer installation instructions available (PDF).
