Description

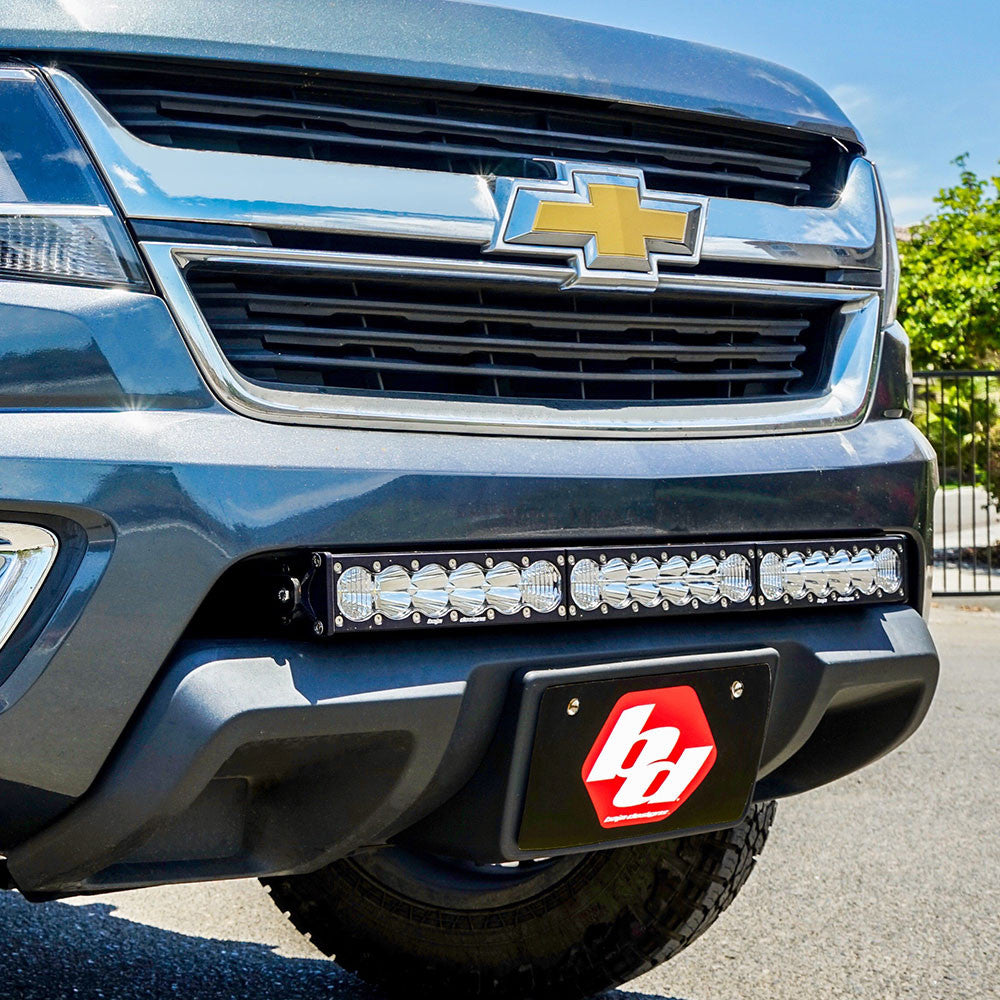

The Baja Designs OnX6+ 30-inch LED light bar lower grille kit for the Chevrolet Colorado/GMC Canyon allows enthusiasts to add more light to these off-road trail capable mid-size trucks. This lower grille kit will allow you to mount a 30-inch OnX6+ Light Bar into your factory bumper, offe

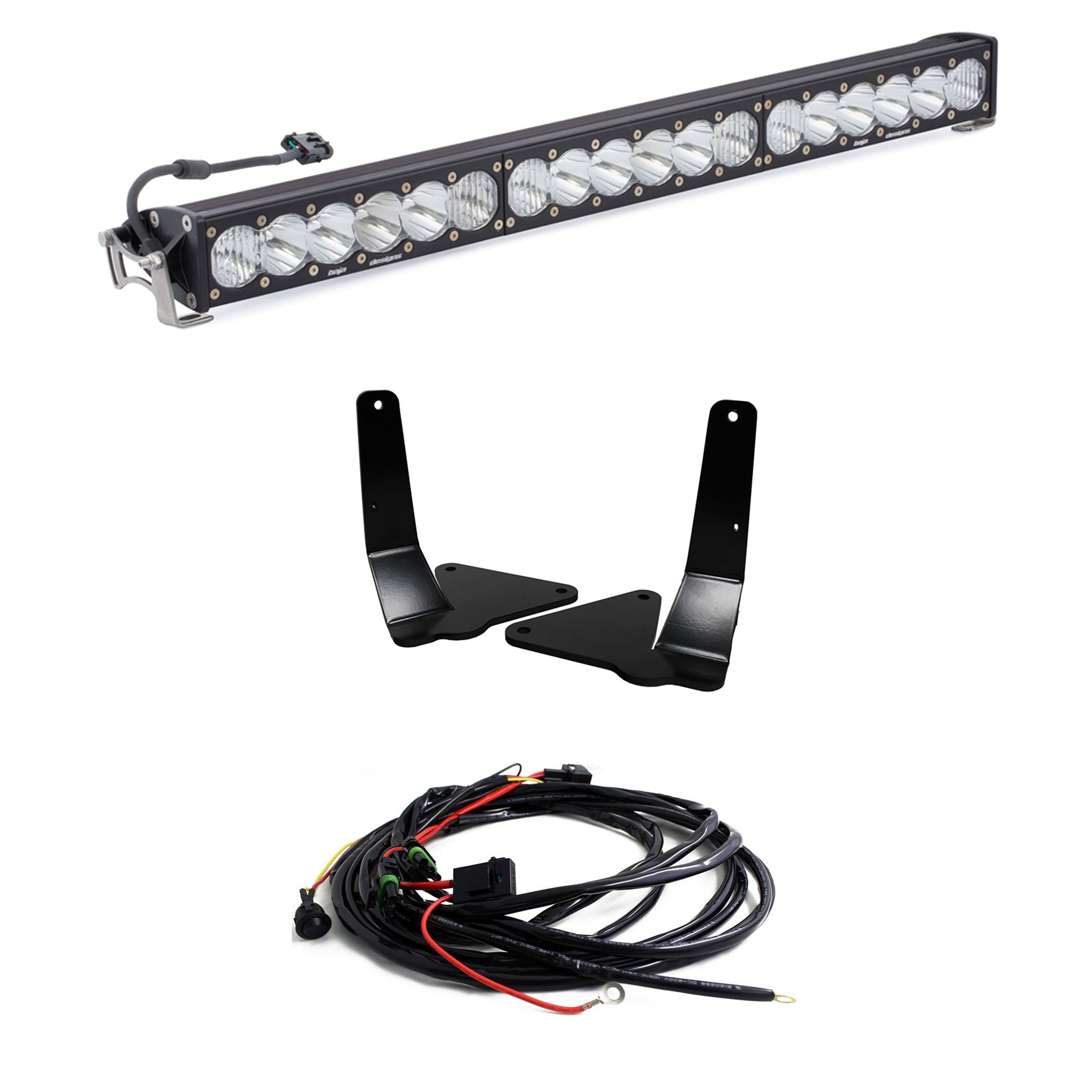

Key features
- (1x) OnX6+ 30-Inch LED Light Bar - Driving Combo Clear
- (2x) Lower Grille Mounting Brackets
- (1x) Wiring Harness - 640115
- All Necessary Mounting Hardware
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 31,910 (High); 25,450 (Low) |
| Depth (in.) | 4.29 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 20 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 281 (High); 225 (Low) |
| Weight (lbs.) | 11.45 |
| Wiring Harness Included | No |
Installation
Manufacturer installation instructions available (PDF).
