Description

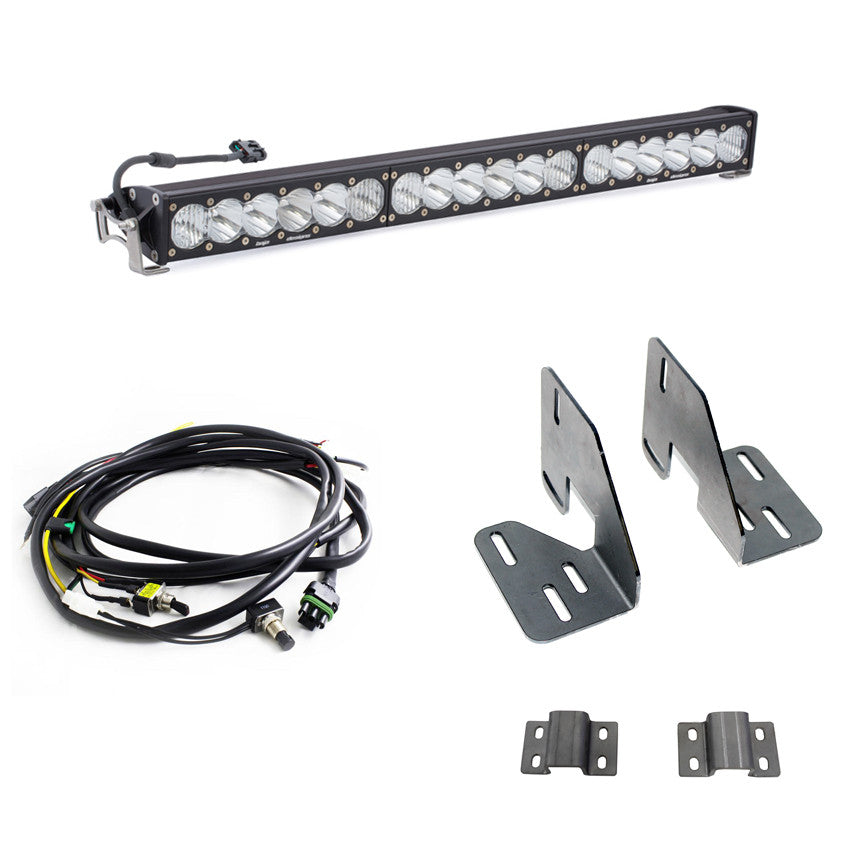

Looking for the ultimate lighting kit for your GMC HD? Look no further! The 30 inch OnX6 plus kit is the kit for you, it includes everything you need, the light, wiring harness, and mounts. This kit is perfectly concealed behind the grille, and mounting the light doesn't require any dril
Key features
- Beam Pattern: Driving/Combo
- Wattage: 281 (High); 225 (Low)
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 31,910 (High); 25,450 (Low) |
| Depth (in.) | 4.29 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 20 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 281 (High); 225 (Low) |
| Weight (lbs.) | 11.45 |
| Wiring Harness Included | No |
Fitment
2018-2019 GMC Sierra 2500HD/3500HD
Installation
Manufacturer installation instructions available (PDF).
