Description
Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes a 7 XL Sports linkable producing 22,050 lumens of forward projected light, or the XL Pro Link
Key features

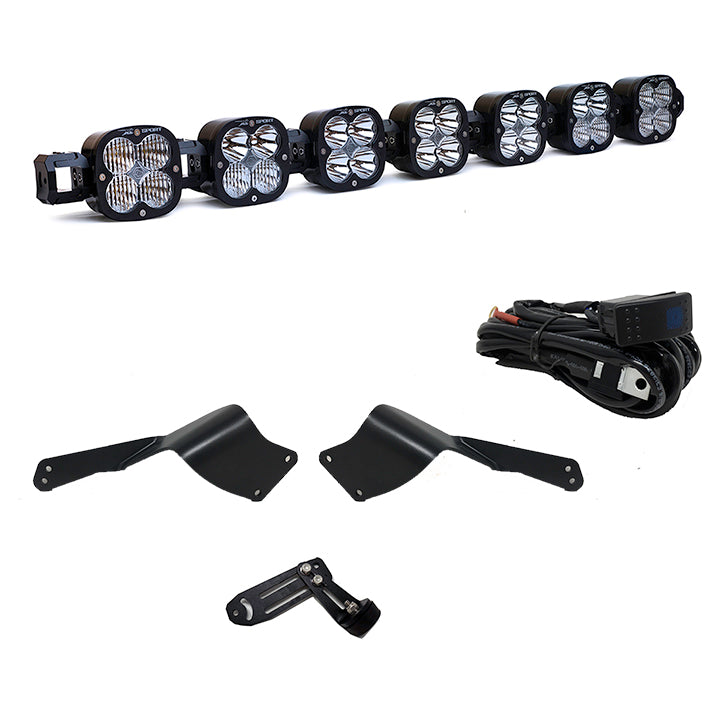

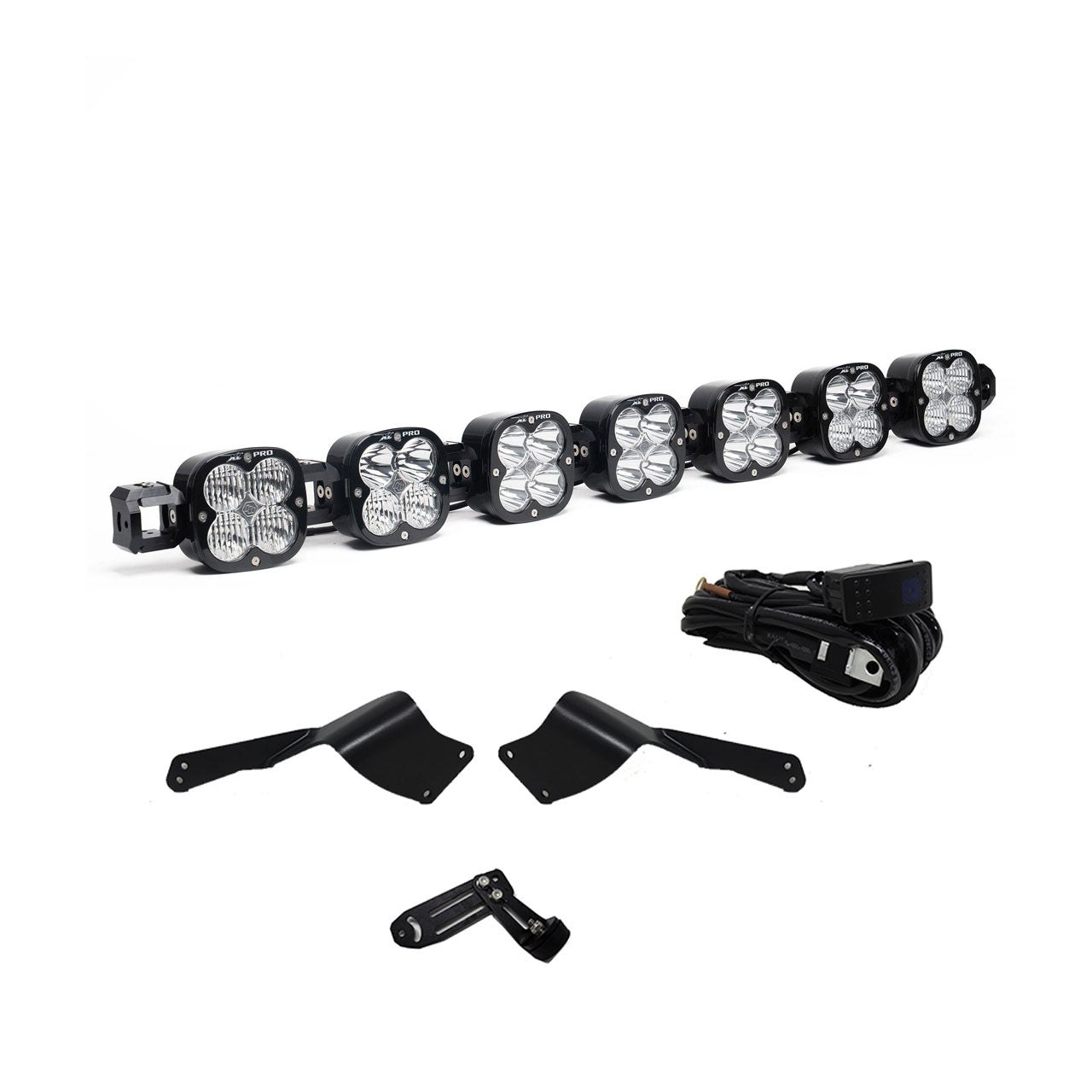

- (1) XL Linkable (Sport or Pro), 7 XL Clear Multi-Pattern
- (2) Roof Bar Bracket
- (1) Wiring Harness
- All necessary hardware
Specifications
| Amperage Rating (A) | 14 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 22,050 |
| Depth (in.) | 2.8 |
| Description | 7XL Sport; Multi-Pattern; Clear |
| Height (in.) | 4.43 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Length (in.) | 45.34 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 7 |
| Lighting Modes | Beam |
| Lighting Quantity | 28 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 182 |
| Wiring Harness Included | Yes |
Fitment
2017-2024 Can-Am Maverick X3
Installation
Manufacturer installation instructions available (PDF).
