Description

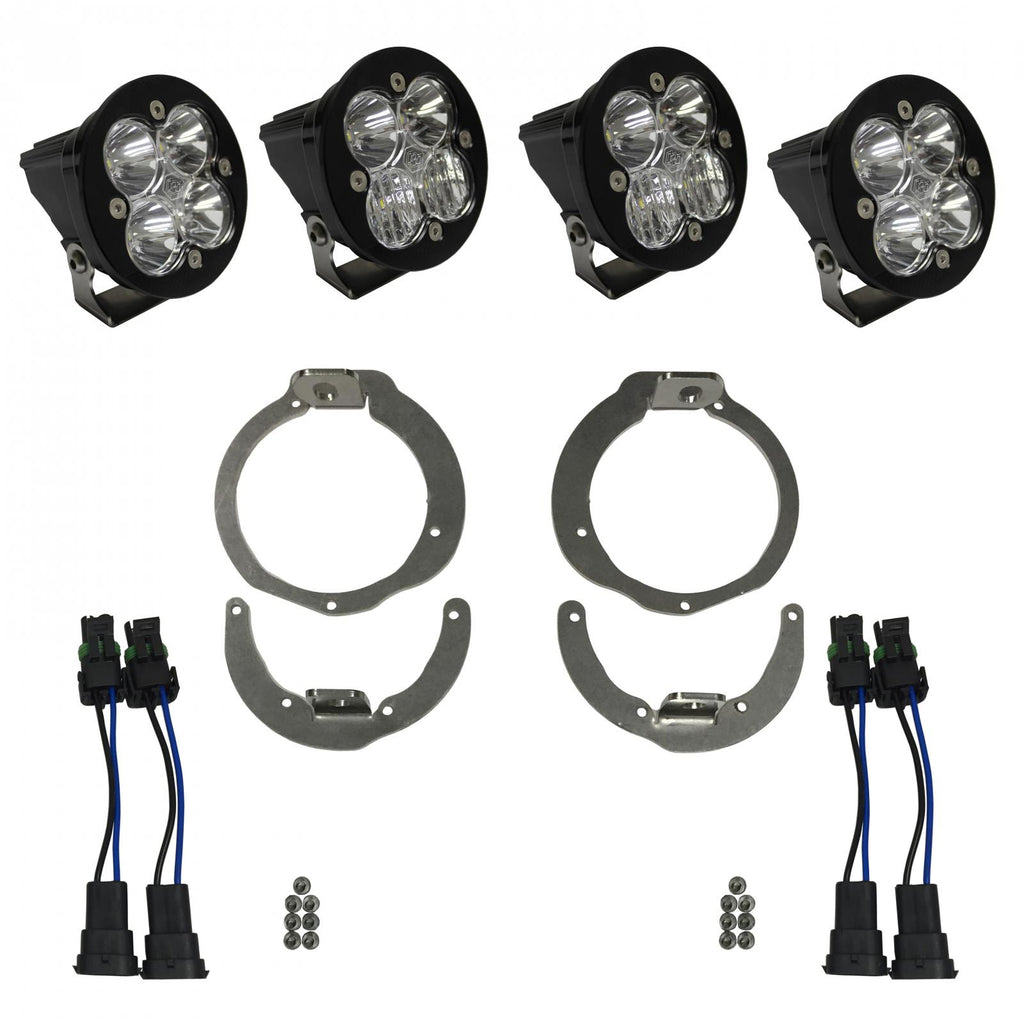

The Baja Designs Squadron-R Sport headlight replacement kit for the Can-Am Maverick ('13-16) and Renegade ATV ('11-16) will light up the trials while separating you from the pack. This "Sportsman" kit utilizes four Squadron Sports, each pushing out 3,162 lumens each at 30 watts, mounting
Key features
- Beam Pattern: Driving/Combo
- Wattage: 26
Specifications
| Amperage Rating (A) | 2 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3,150 |
| Depth (in.) | 2.77 |
| Description | Round; Driving/Combo; Clear |
| Height (in.) | 3.5 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Length (in.) | 3.5 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Sport LED Light Pod |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Wattage (W) | 26 |
| Weight (lbs.) | 0.75 |
| Wiring Harness Included | No |
Fitment
2013-2016 Can-Am Maverick
Installation
Manufacturer installation instructions available (PDF).
