Description

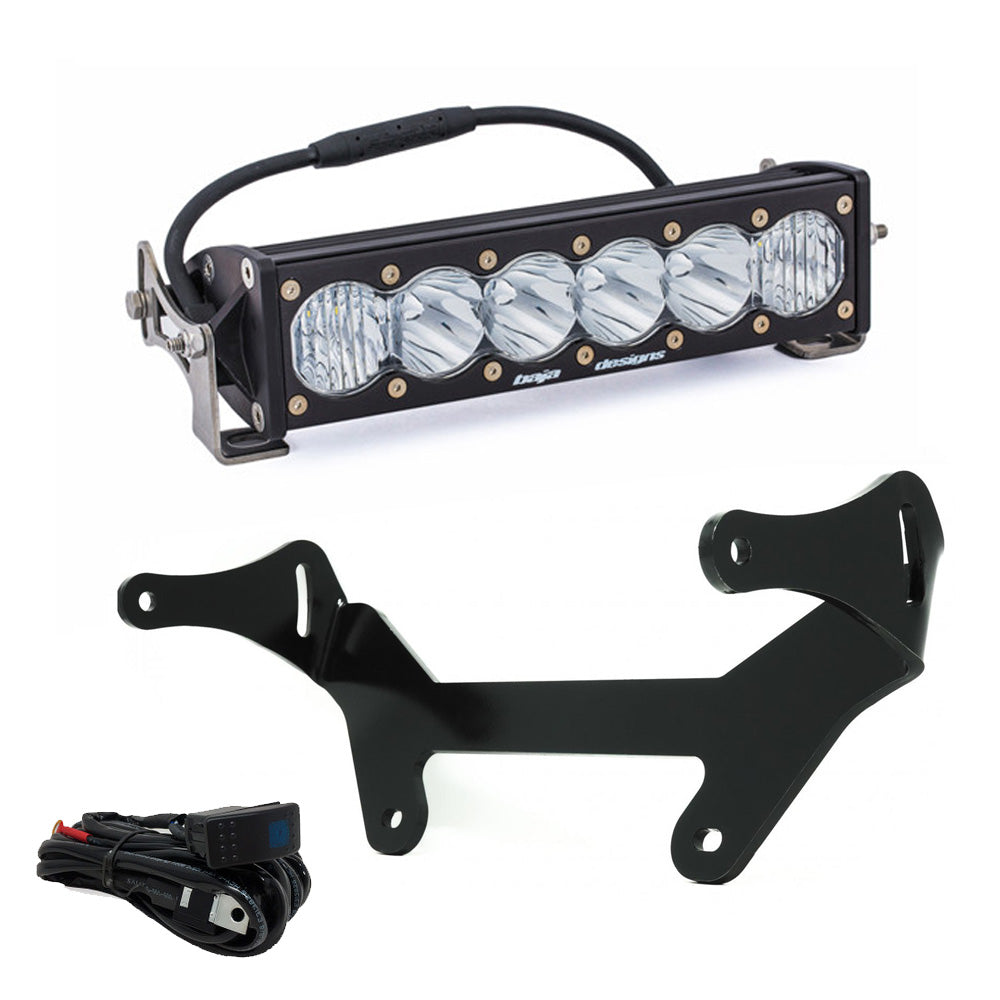

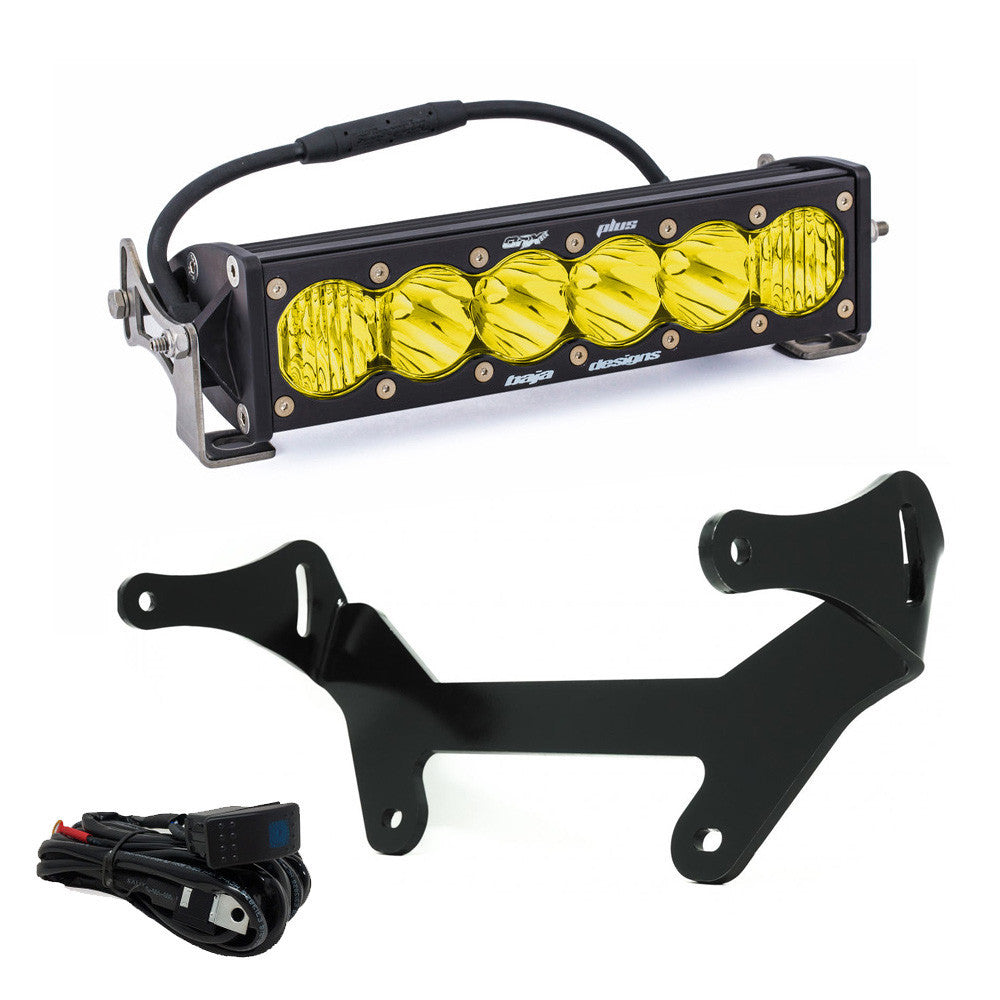

Separate yourself from the pack with the Baja Designs Can-Am OnX6 Shock Mount. This kit includes a 10 inch OnX6 light bar and mount that easily bolts up to the factory shock tower and keeps the light stable at high speeds. This kit is ideal for someone looking to gain forward projecting
Key features
- Beam Pattern: Driving/Combo
- Wattage: 106.260
Specifications
| Amperage Rating (A) | 7.700 |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Depth (in.) | 4.290 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.690 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 10 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Weight (lbs.) | 4.250 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
2017-2024 Can-Am Maverick X3
Installation
Manufacturer installation instructions available (PDF).
