Description
The Baja Designs OnX6+ 40-inch LED Light bar roof mount kit for the Can-Am Maverick X3 is the ultimate roof lighting system for the trails. This LED offroad light bar system allows for stable and secure mounting on the normal Maverick X3 or on the rock crawler variant. This OnX6+ 40-inch
Key features

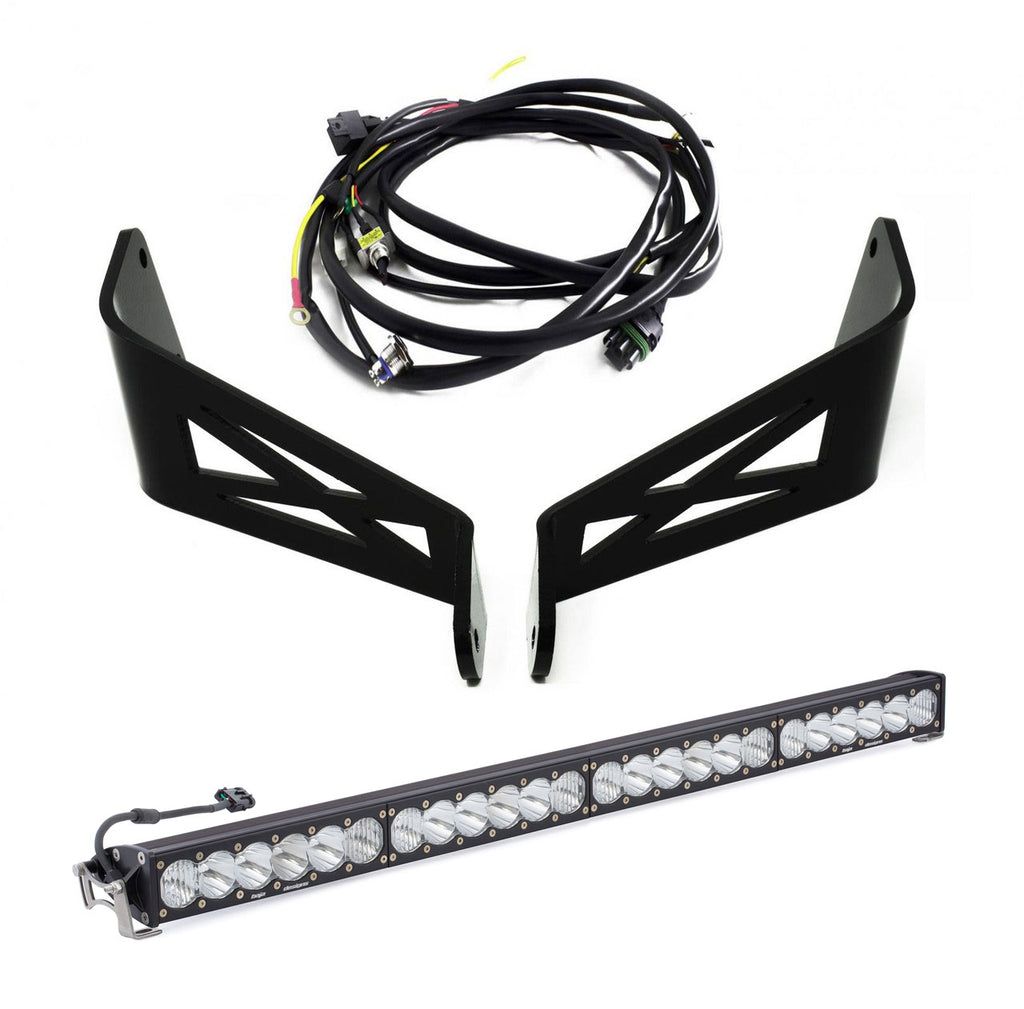

- (1x) OnX6+ 40" LED Light Bar - Clear Driving Combo
- (2x) Mounting Brackets
- (1x) Wiring Harness (640119)
- All Necessary Mounting Hardware
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
Specifications
| Amperage Rating (A) | 26.8 (High); 22.4 (Low) |
|---|---|
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 38,900 (High); 32,440 (Low) |
| Depth (in.) | 4.29 |
| Description | Straight; Driving/Combo; Clear |
| Height (in.) | 2.69 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Length (in.) | 40 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 40 Inch LED Light Bar |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Universal or Specific | Universal |
| Wattage (W) | 346 (High); 290 (Low) |
| Weight (lbs.) | 15.05 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Fitment
2017-2024 Can-Am Maverick X3
Installation
Manufacturer installation instructions available (PDF).
