Description
The Dodge, Ram TRX LP9 Bumper Kit gives you all the off-road performance and a cool look with our amber back-light feature for your Dodge, Ram TRX. This kit utilizes two LP9 Pros in a clear Driving Combo lens pattern, giving you a total of over 22,000 lumens.
This kit also includes mounting brackets and upfitter switched to utilize your OEM upfitter switches.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications(per light):
- Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
- Forward Projecting Wattage/Amps: 105W / 7.6A
- IPT Lumens: 2,280 Utilizing 6 LEDs
- IPT Wattage/Amps: 21W / 1.52A
- Backlight Wattage/Amps: 2.8W / 0.2A
- Dimensions: 8 inch Diameter/ 3.25 inch Depth
- Weight: 6.5lbs
- Mating Connector: DT06-4S Deutsch
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized Aluminum
- Bezel: Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Application:
2021 Dodge Ram, TRX

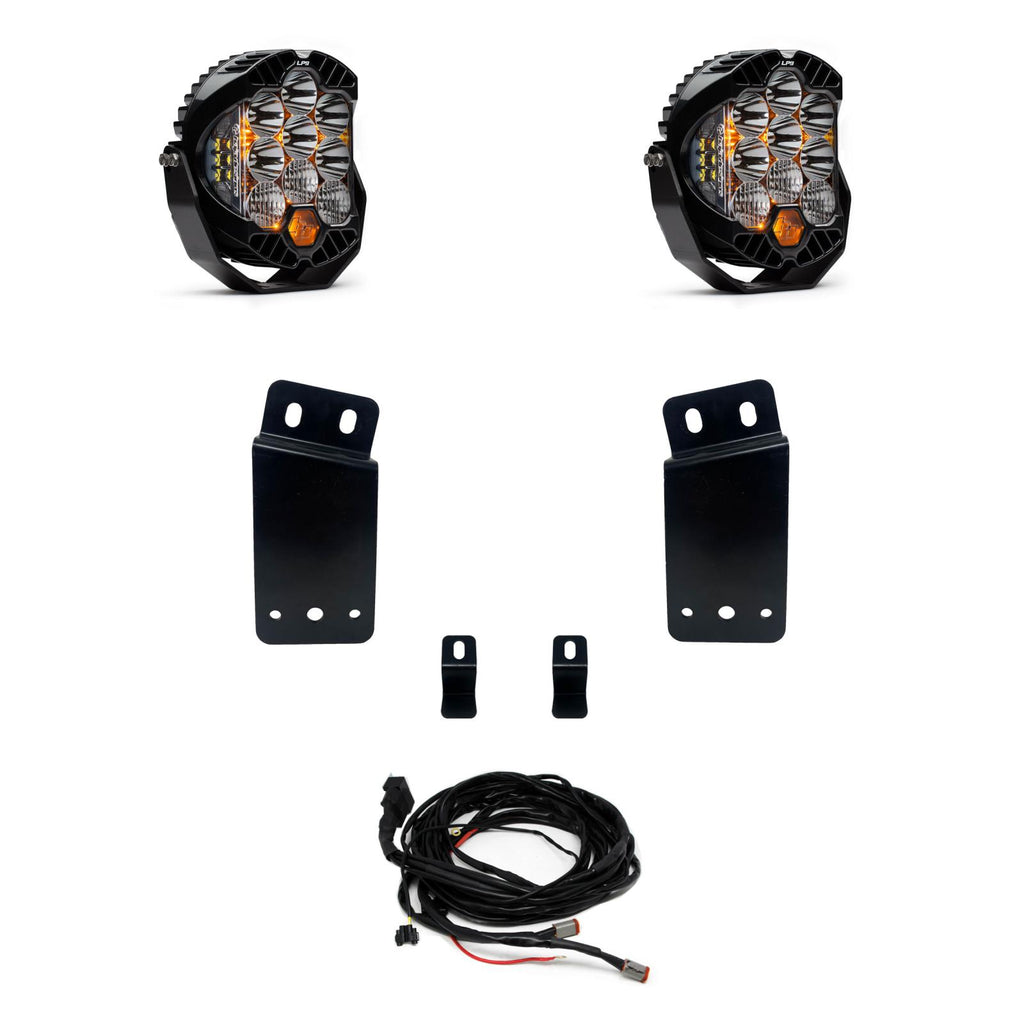

Included:
- x2 LP9 Pros in Driving Combo
- x2 Mounting Brackets
- x2 Support Brackets
- x1 Upfitter Harness
- All necessary hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (8 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
