Description
This bar is equipped with BMT Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes. The OnX6+ LED Light Bar is Brighter, Bolder, Better.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back
- Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
- Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
- Dimensions: 30 inch x 4.29 inch x 2.69 inch
- Weight: 11.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:

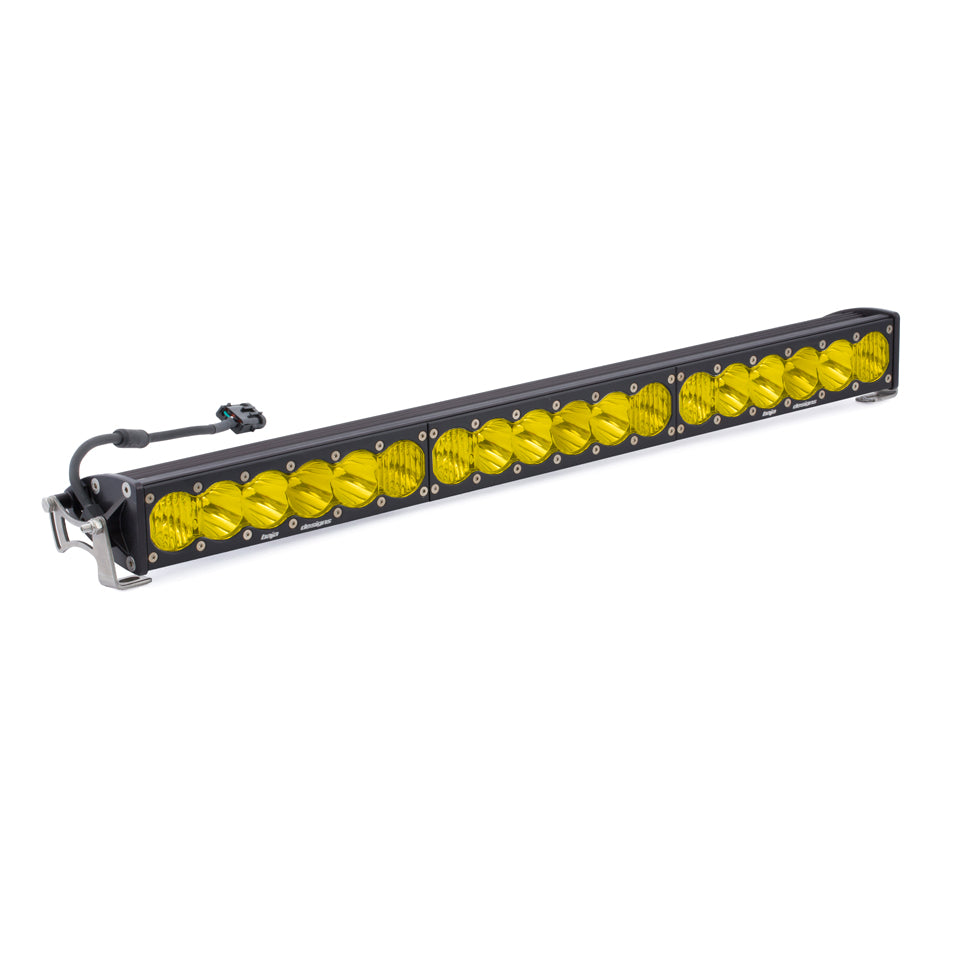

OnX6+ 30 inch LED Light Bar
Mounting Brackets
Hi-Low Dongle
Please note that this light does Not include a harness and the applicable harness to this light is 640122.
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2) (Also available in Baja Amber)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Racer Edition Spot: A 4 degree beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)
