Description
Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards.
A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

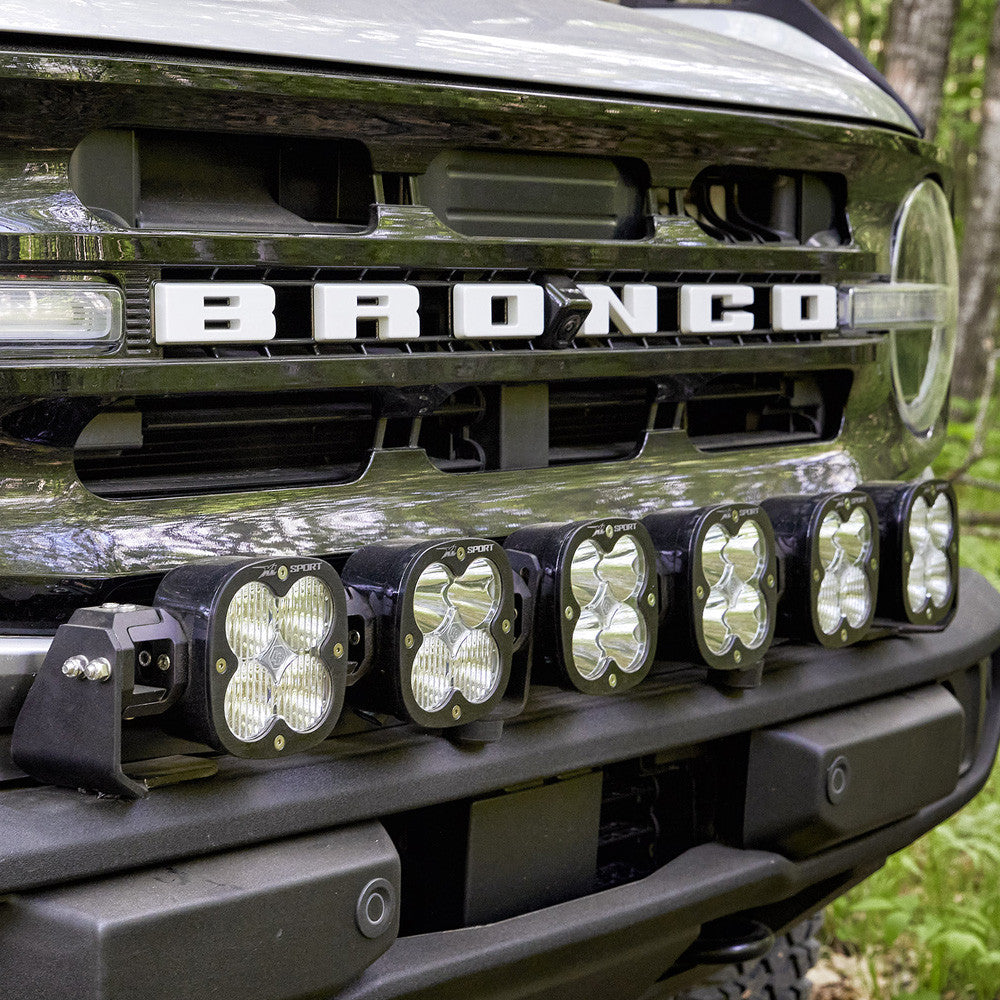

This kit is a turn key LED system for theFord Broncoowner that is lookingto drastically improve the looks and performance of their truck.
Please Note: This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.
Baja Designs Features:
- Satisfactions Guarantee 30 Day Money Back Guarantee
- Limited Lifetime Warranty Complete Purchase Protection
- uService Replaceable Lenses And Optics
- ClearView All The Light, Right Where You Need It.
- MoistureBlock Waterproof, Rain Proof, Submersible
- CopperDrive Only LED Driven At 100 percent
- 5000K Daylight Less Driver Fatigue, Natural Color
Specifications:
- Lumens:18,900 Utilizing24 LEDs
- Wattage/Amps:156W / 12A
- LED Life Expectancy:49,930 Hours
- Front Lens:Hard Coated Polycarbonate
- Housing:Powder Coated Cast Aluminum
- Bezel:Billet Machined Aluminum
- Hardware and Bracket Material:Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- x2 XL SportSpotLED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x6 XL Sport Rock Guards
- Toggle Switch Wiring Harness
- Vehicle Specific Mounts
Application:
2021 - OnFord Bronco w/Plastic Bumper
Adjustability:
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot:A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
